4.6 Rotating Arm
Chapter 4: Removal, Replacement, and Adjustment Procedures
Prima™ Procedural Light Service Manual (man247ra) Page 4 - 17
DRAFT 6/4/99
4
Adjustment
1. Pull the lamp head (J) downward about 20° until the adjusting screw (K) is
visible through the hole in the plastic arm cover (L) (see figure 4-7 on page
4-17).

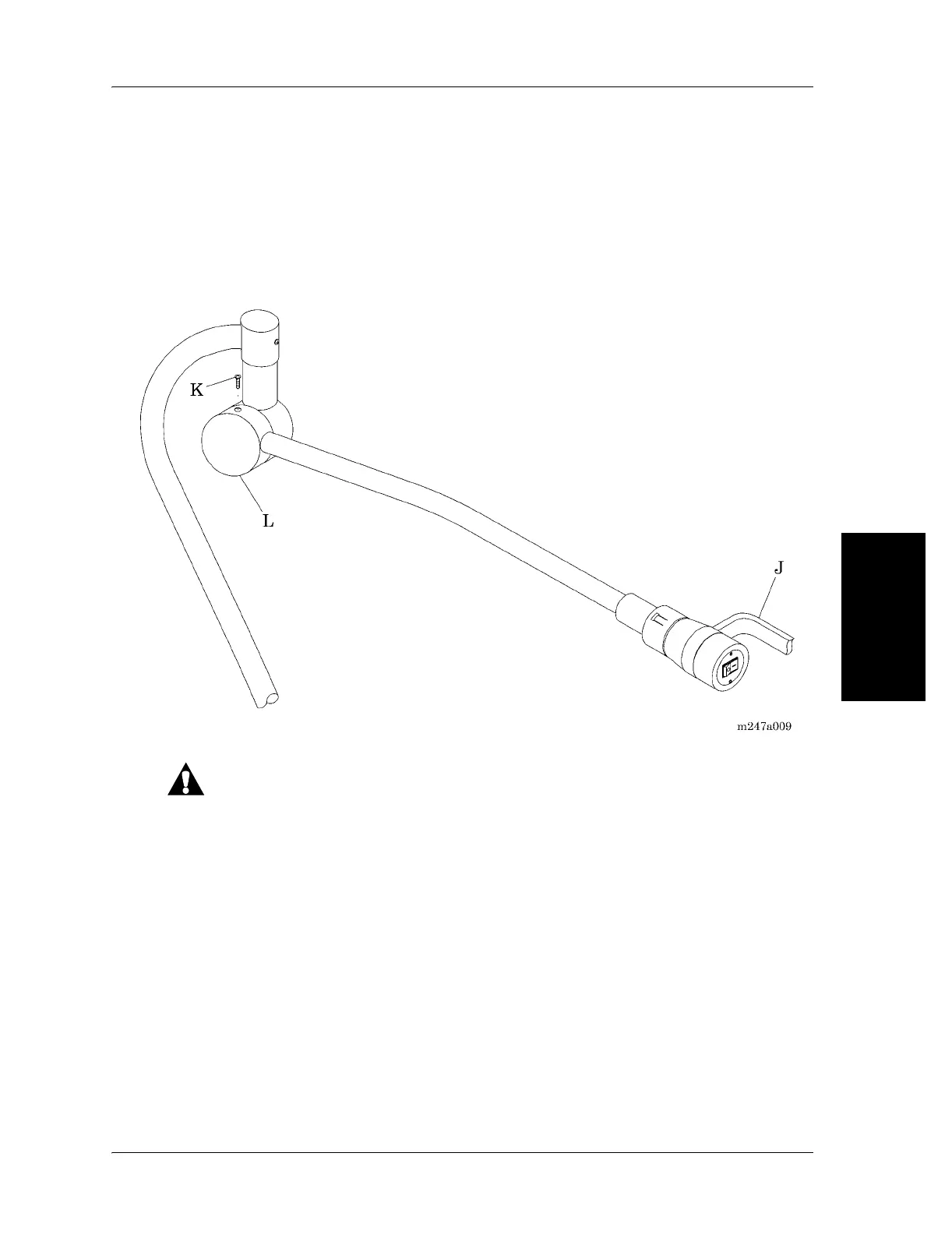

Figure 4-7. Rotating Arm Tension Adjustment
CAUTION:
Do not overtighten the adjusting screw. Overtightening the adjusting
screw could result in equipment damage.
2. In order to modify the spring tension, use a screwdriver to turn the
adjusting screw (K) as follows:
If the rotating arm drifts upward after being positioned, turn the
adjusting screw (K) clockwise to decrease the spring tension.
If the rotating arm drifts downward after being positioned, turn the
adjusting screw (K) counterclockwise to increase the spring tension.
