4.10 Fuse
Tools required: T10 Torx®
1
head screwdriver
Removal
SHOCK HAZARD:
Unplug the unit from its power source. Failure to do so could result in
personal injury or equipment damage.
1. Unplug the unit from its power source.
2. Using a T10 Torx® wrench, remove the two screws (A) from the
transformer housing (B).
3. Remove both halves of the transformer housing (B) from the upright pole
(C).
4. Remove the fuse holder (E) from the terminal block (D).

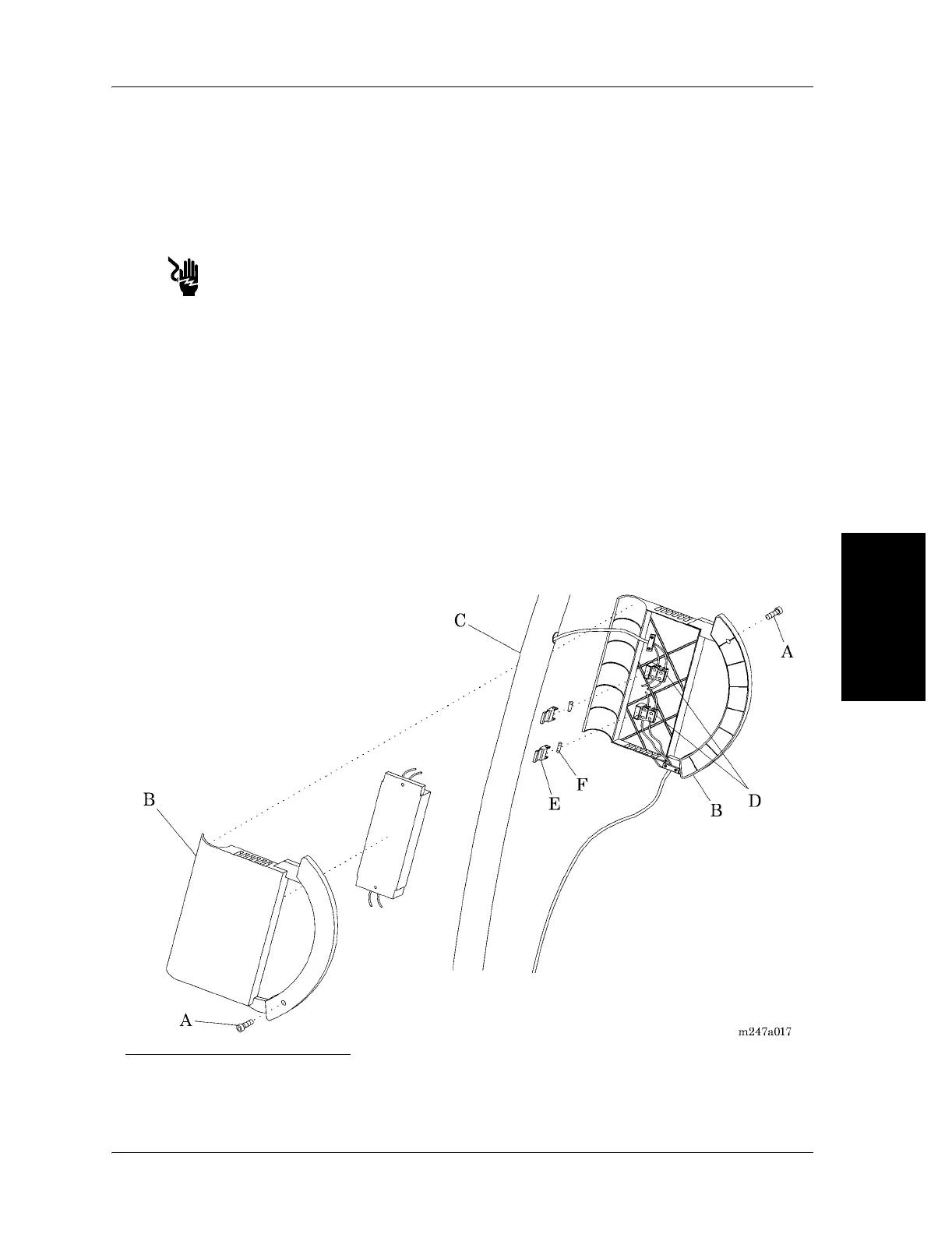

Figure 4-11. Fuse
1. Torx® is a registered trademark of Textron, Inc.
