4.8 Power Cord
Tools required: T10 Torx®
1
wrench
Small phillips head screwdriver
Small screwdriver
Removal
SHOCK HAZARD:
Unplug the unit from its power source. Failure to do so could result in
personal injury and equipment damage.
1. Unplug the unit from its power source.
2. Using a T10 Torx® wrench, remove the screws (A) from the transformer
housing (B) (see figure 4-9 on page 4-20).

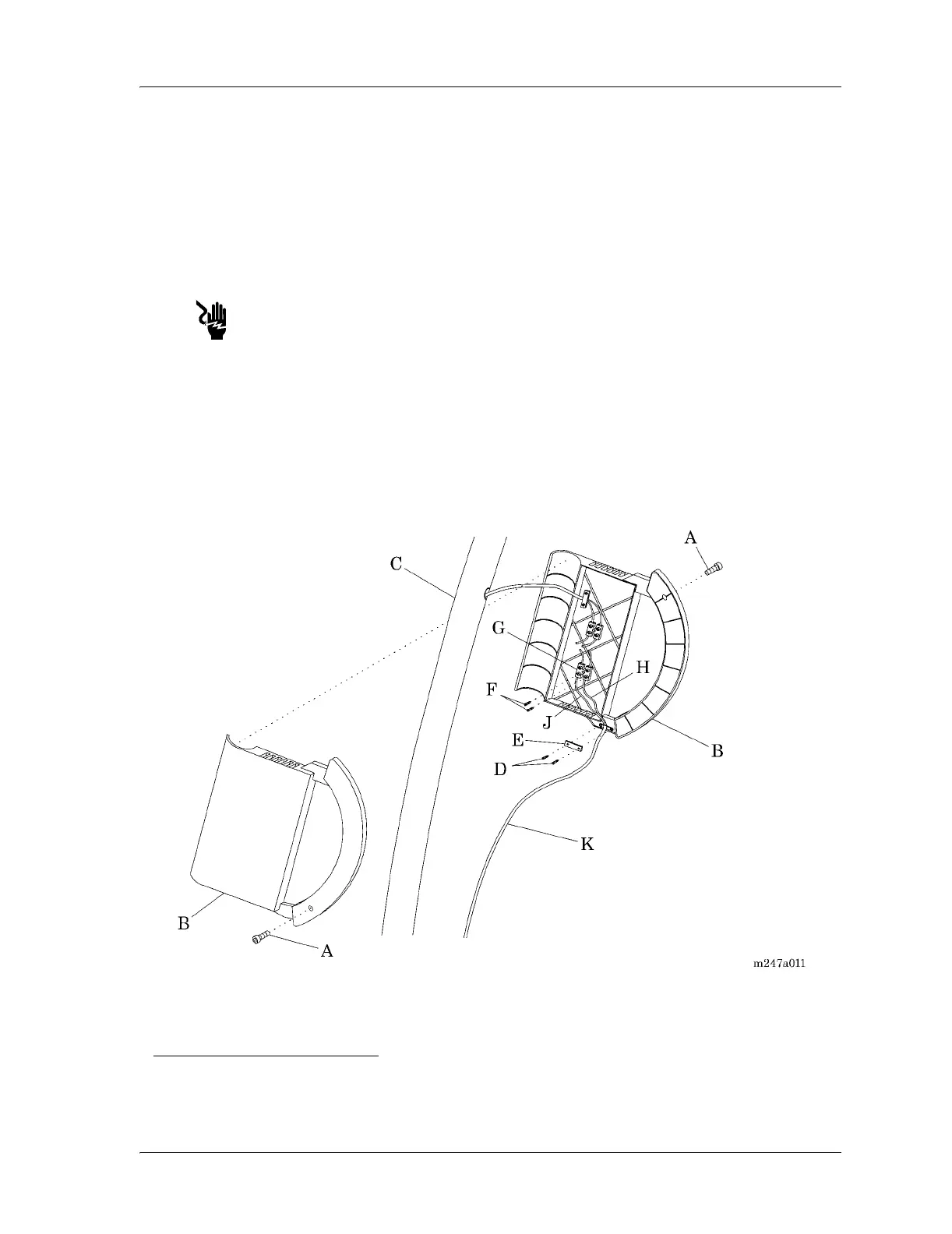

Figure 4-9. Power Cord
3. Remove both halves of the transformer housing (B) from the upright pole
(C).
1. Torx® is a registered trademark of Textron, Inc.
