4.7 Upright Pole
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 18 Prima™ Procedural Light Service Manual (man247ra)
DRAFT 6/4/99
4.7 Upright Pole
Tools required: Small phillips head screwdriver
Removal
SHOCK HAZARD:
Unplug the unit from its power source. Failure to do so could result in
personal injury and equipment damage.
1. Unplug the unit from its power source.
2. Remove the lamp head/yoke assembly. See “Lamp Head/Yoke Assembly”
on page 4-13.
3. Remove the rotating arm. See “Rotating Arm” on page 4-15.
4. Using a small phillips head screwdriver, remove the screws (A) from the
upright locks (B) (see figure 4-8 on page 4-18).

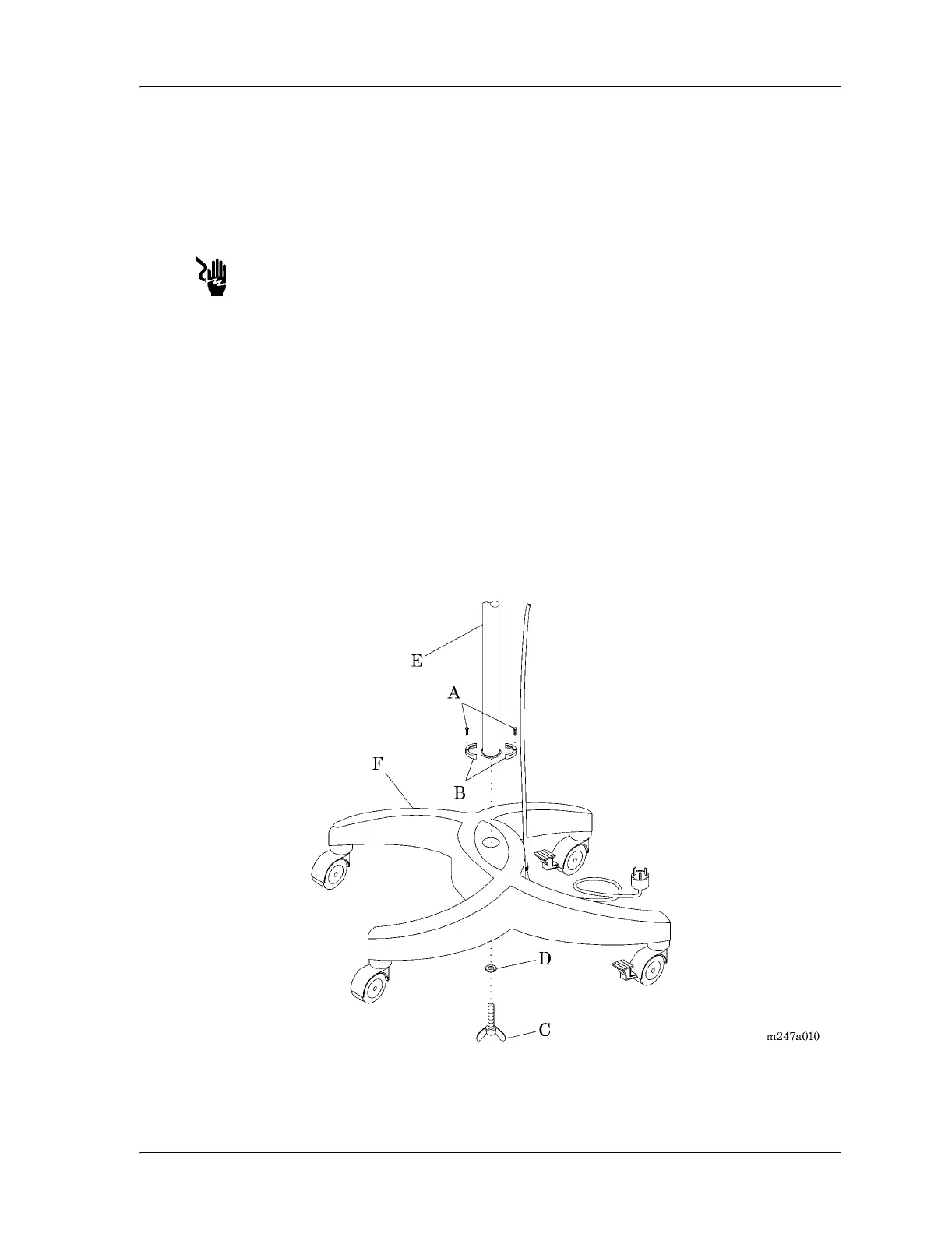

Figure 4-8. Upright Pole
