F3 AIO 8/4 01 3 Product Description
HI 800 161 E Rev. 1.01 Page 13 of 54
Circuitry:
Series Resistor (R
series resistor
)
Field Clamp Terminal
Solenoid Valve 8 W, 24 VDC
Field Clamp Terminal
Series Resistor (R
Diode
)
Shunt (R
Shunt
)

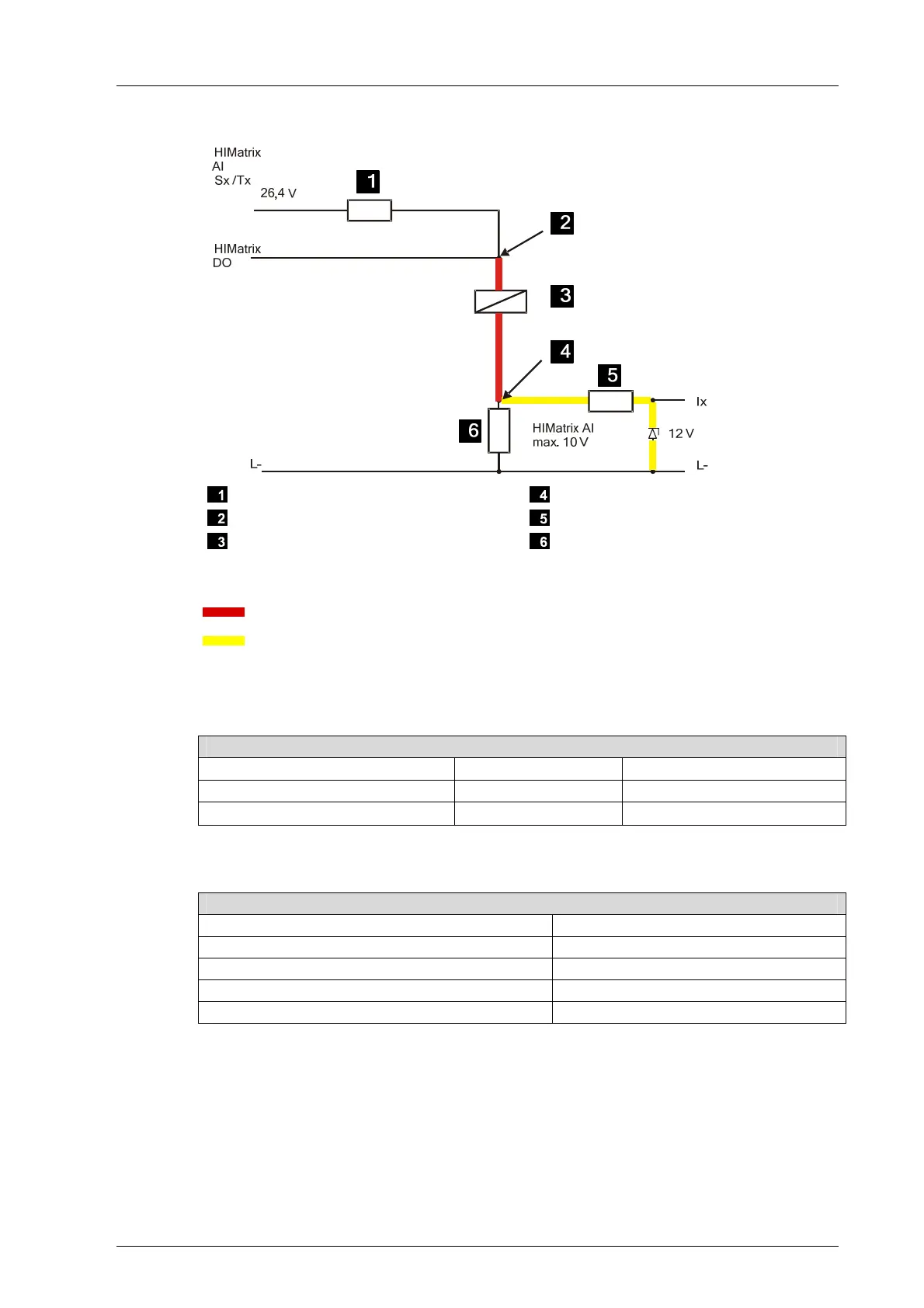

Figure 1: Circuitry for Line Monitoring
Line monitoring (LB/LS) range
Protective circuit with short-circuit
Examples of how to configure line monitoring for the digital output DO (circuit with solenoid
valve 8 W 24 VDC):
Resistance values:
Series resistor: R
series resistor
1.6 kΩ
Solenoid valve resistance: R
solenoid valve
75
Shunt: R
shunt
10 Ω
Table 5: Examples of Line Monitoring - Resistance Values
Voltage values:
Transmitter voltage: 26.4 V
Output voltage DO during normal operation: 24 V
Output voltage DO with a short-circuit: 26.8 V
Voltage drop on the solenoid valve: 21 V
Switching voltage of the Z-diode: 12 V
Table 6: Examples of Line Monitoring - Voltage Values
