4.1.3  Mounting the F3 AIO 8/4 01 in Zone 2
(EC Directive 94/9/EC, ATEX)
The remote I/O is suitable for mounting in zone 2. Refer to the corresponding declaration of
conformity available on the HIMA website.
When mounting the device, observe the special conditions specified in the following
section.
Special Conditions X
1.  Mount the remote I/O in an enclosure that meets the EN 60079-15 requirements and
achieves a type of protection of at least IP54, in accordance with EN 60529. Provide the
enclosure with the following label:

Work is only permitted in the de-energized state

Exception:
If a potentially explosive atmosphere has been precluded, work can be also performed
when the device is under voltage.
2.  The enclosure in use must be able to safely dissipate the generated heat. The power
dissipation of the module F3 AIO 8/4 01 is 18 W at maximum.
3.  Protect the HIMatrix F3 AIO 8/4 01 with a 10 A time-lag fuse.
The remote I/O must be supplied with 24 VDC from a power supply unit with safe
isolation. Use only power supply units of type PELV or SELV.
4. Applicable standards:
VDE 0170/0171 Part 16,  DIN EN 60079-15: 2004-5
VDE 0165 Part 1,     DIN EN 60079-14: 1998-08

Pay particular attention to the following sections:
DIN EN 60079-15:
Chapter 5  Design
Chapter 6  Terminals and cabling
Chapter 7  Air and creeping distances
Chapter 14  Connectors
DIN EN 60079-14:
Chapter 5.2.3  Equipment for use in zone 2
Chapter 9.3  Cabling for zones 1 and 2
Chapter 12.2  Equipment for zones 1 and 2

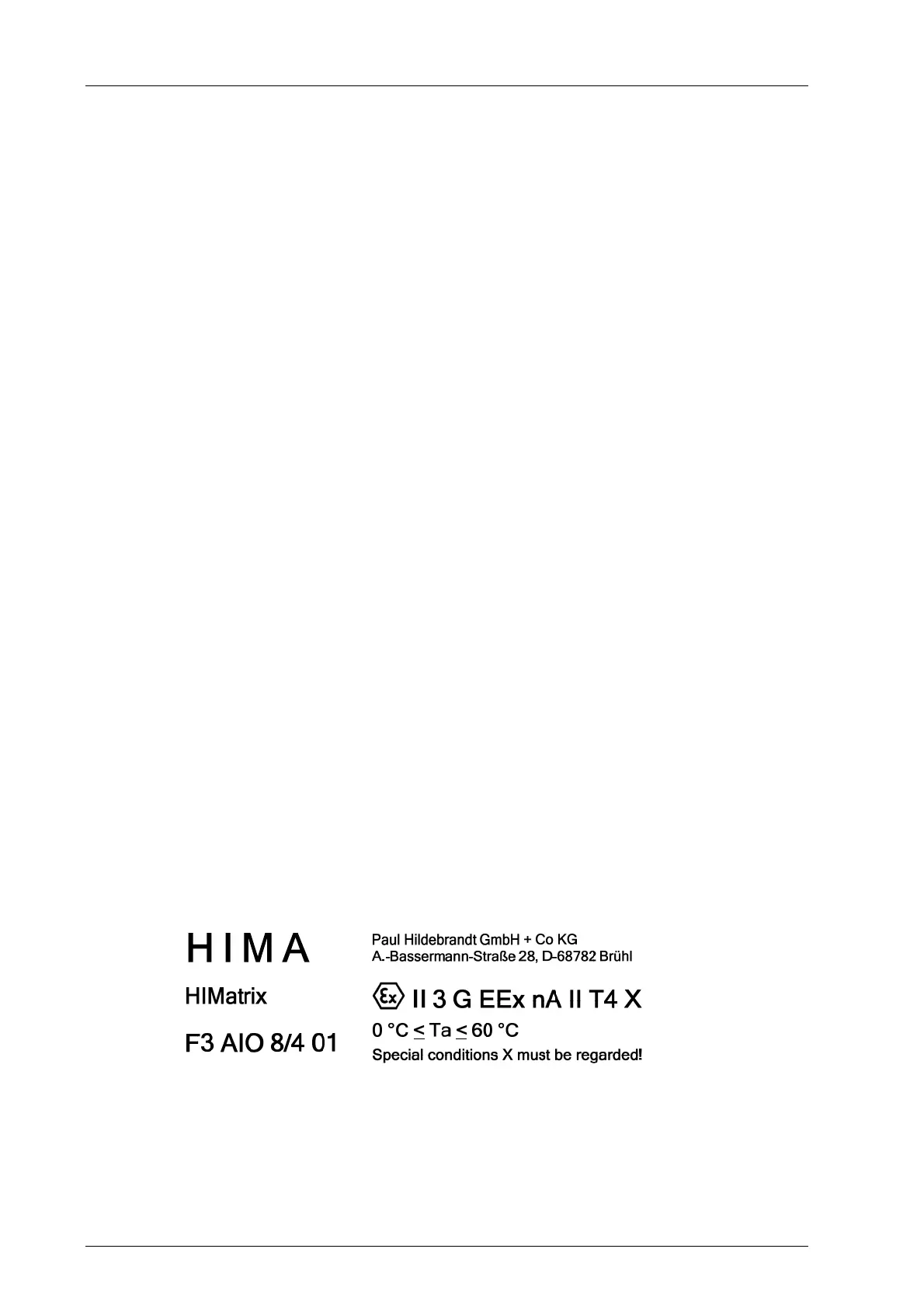

The remote I/O is additionally equipped with the represented label:

Figure 9:  Label for Ex Conditions
