X-COM 01 4 Start-up

HI 801 011 E Rev. 5.00 Page 23 of 42

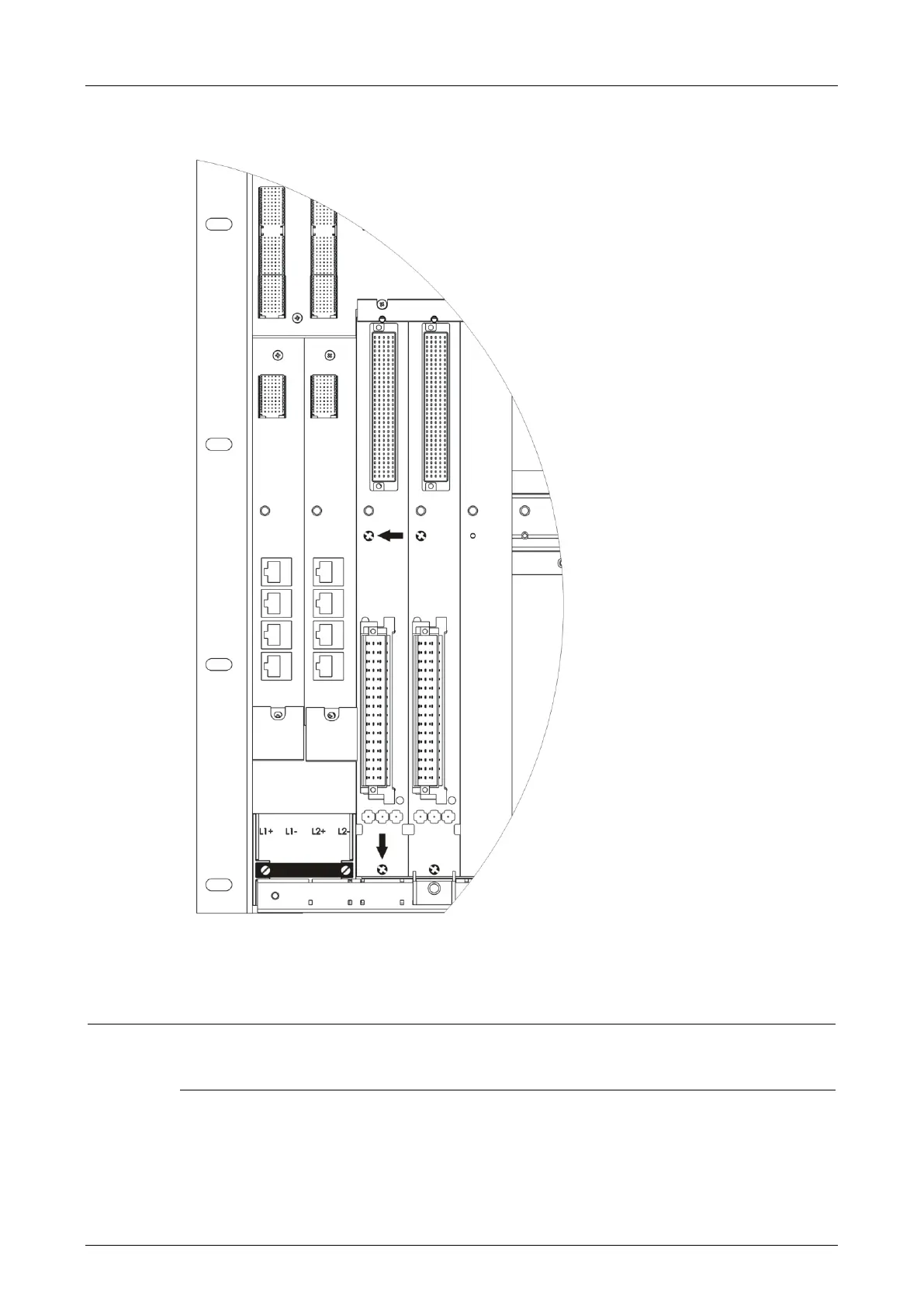

Figure 7: Example of how to Secure the Mono Connector Board with Captive Screws

These instructions also apply for redundant connector boards. The number of slots used varies

in accordance with the connector board type. The number of captive screws depends on the

connector board type.
