Service Manual iFLEX5
© Hirschmann Rev. I 0522/17 190154_I.DOC
20

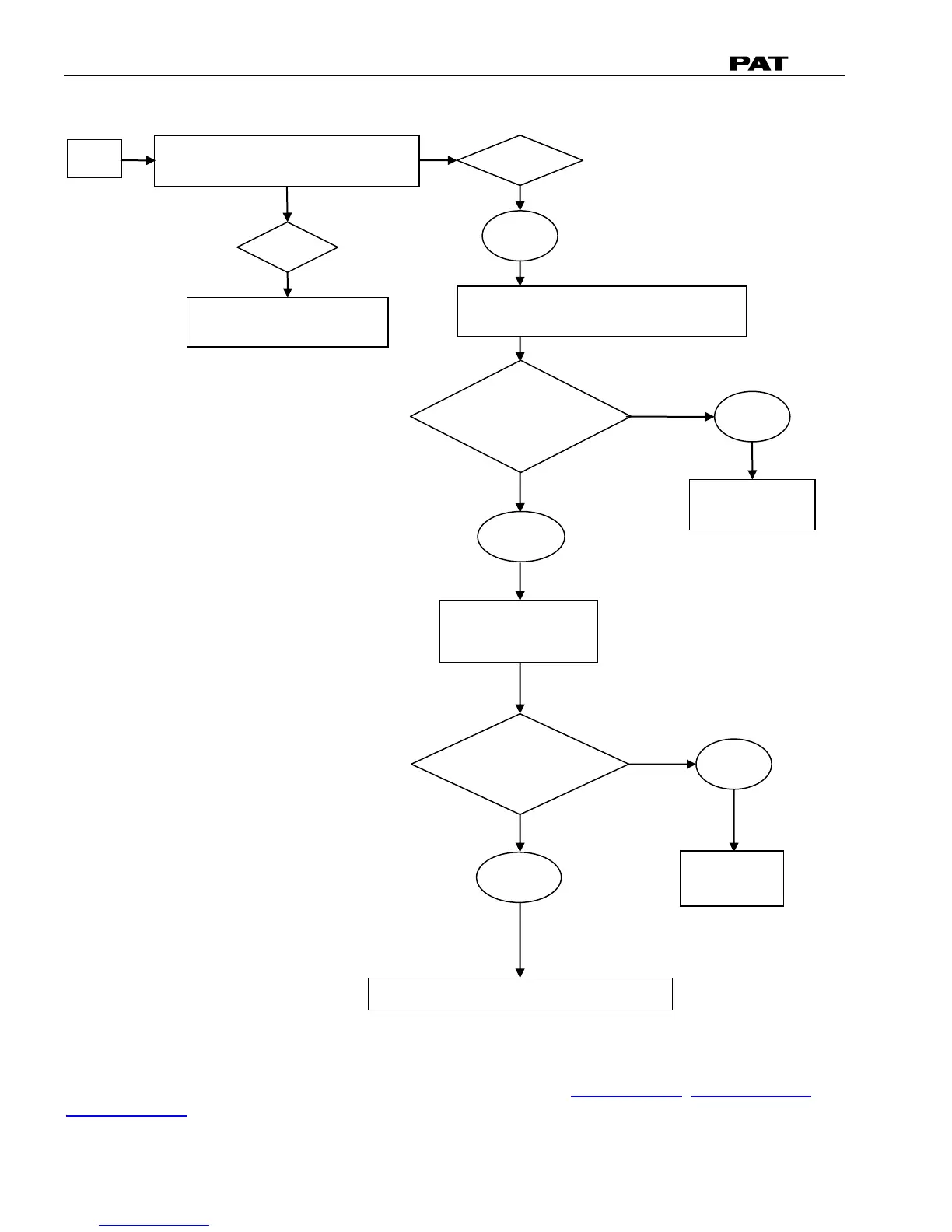

12.4.1 E64 - Flow Chart
12.5 E65
In case of an E65, the cable reel is reporting an internal problem. In most cases, this will be an angle
sensor, length potentiometer or A2B wiring. Go to those chapters (Angle Sensing, Length Sensing,
A2B PROBLEM) to continue trouble shooting.
E64
Connect the two cables on the
Transducer block together
E61
Yes
Ohm cable from the transducer
block to cable reel.
Cable
checks good
No
Yes
Replace
cable
Check connector
at cable reel
Connector
checks good
No
Yes
Replace
connector
Replace can bus board in cable reel
E62
Replace transducer
block
