Service Manual iFLEX5
© Hirschmann Rev. I 0522/17 190154_I.DOC
46

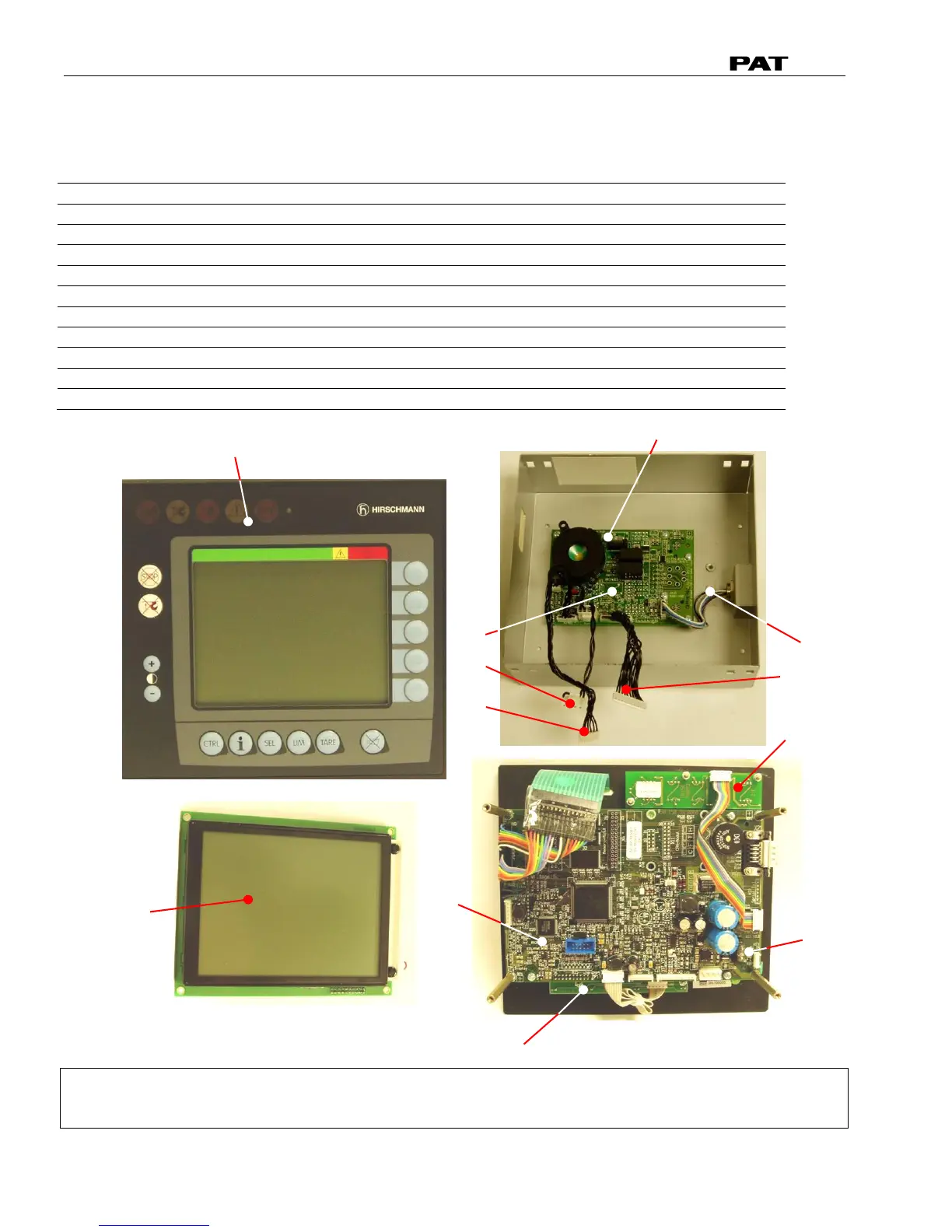

16.3 GRAPHIC CONSOLE ASSY, PART NO. 050-350-061-376
ITEM PART NO. QTY DESCRIPTION
1
factory serviceable only
1
Front face, 1376
2
factory serviceable only
1
Board, console main
3
factory serviceable only
1
Display, LCD 320 x 240
4
050-150-300-086
1
Board, console connection with horn
5
050-150-300-073
1
Board, 6 x LED
6
050-150-300-092
1
Board, 5 x LED
7
092-000-060-391
1
Cable, M12 5p female x 5p JST female x 10cm
8
050-150-290-063
1
Cable, 10p
9
050-150-290-064
1
Cable, 6p
10
050-150-290-061
1
Cable, 4p
11
031-300-050-223
2
Fuse, 2A
Hirschmann Electronics, Inc. reserves proprietary rights to this document and to the data shown there on. This
document and data are confidential and are not to be used or reproduced without the written consent of
Hirschmann Electronics, Inc. This document is subject to technical modification without prior notice.
11
6
10
11
1
2
3
4
4
4
7
9
8
5
