iFLEX5 Boom Control System (BCS)
© Hirschmann Rev. I 05/22/17 190154_I.DOC
29

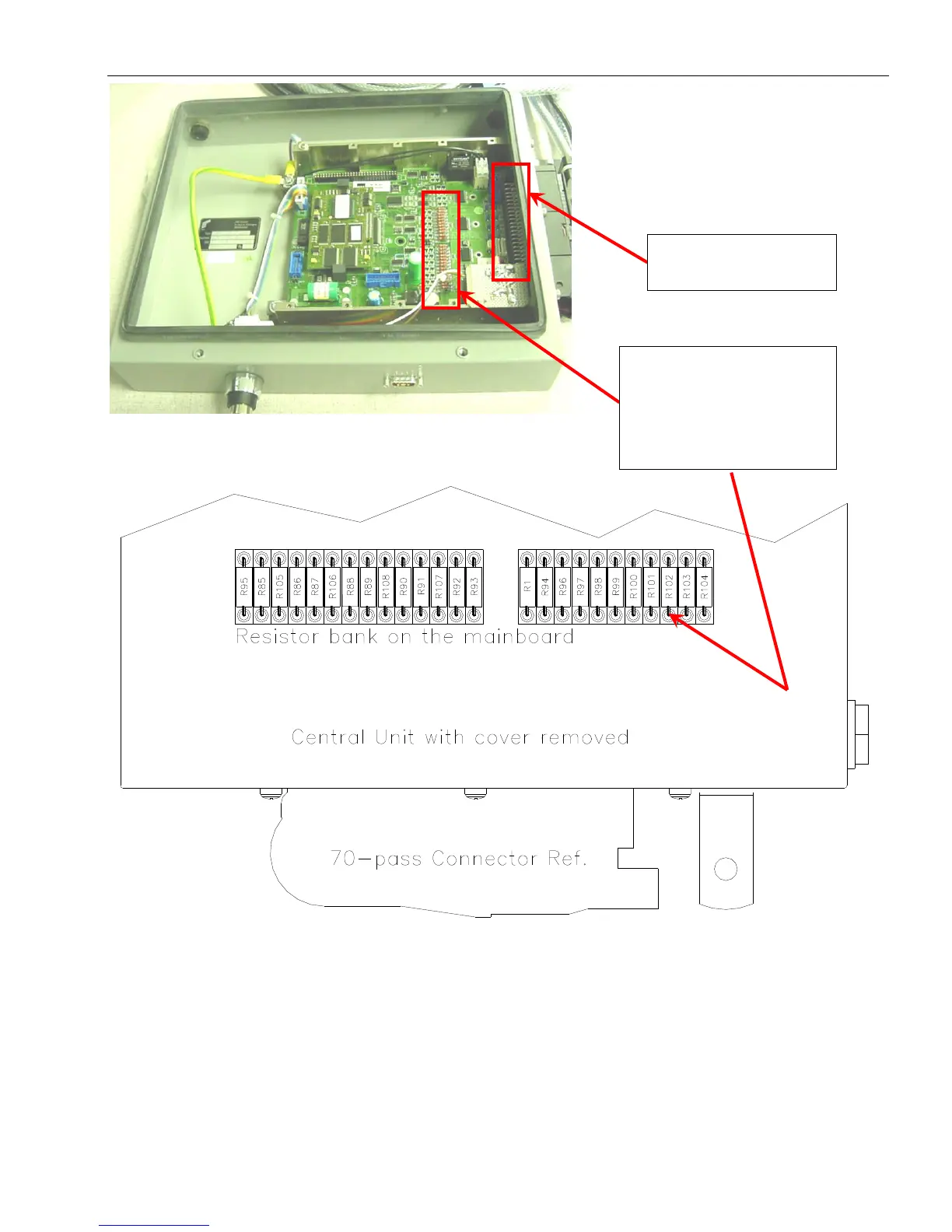

Resistor bank to
measure digital input (DI)
state. Note: must
measure on bottom leg
of the resistor.
C.U. 70-pass
connector pins (X2)
14.5 IFLEX5 BCS ANALOG INPUTS AND PWM OUTPUTS:
Another useful tool to monitor analog inputs and PWM outputs is utilizing the iTOOL5 or
iFLASH terminal function. At the flashing command prompt press and hold “Ctrl” and “A” to
enter the RTOS (an asterisk will display). Type “adctest” and press “Enter”. The result should
be the screen shown below.
