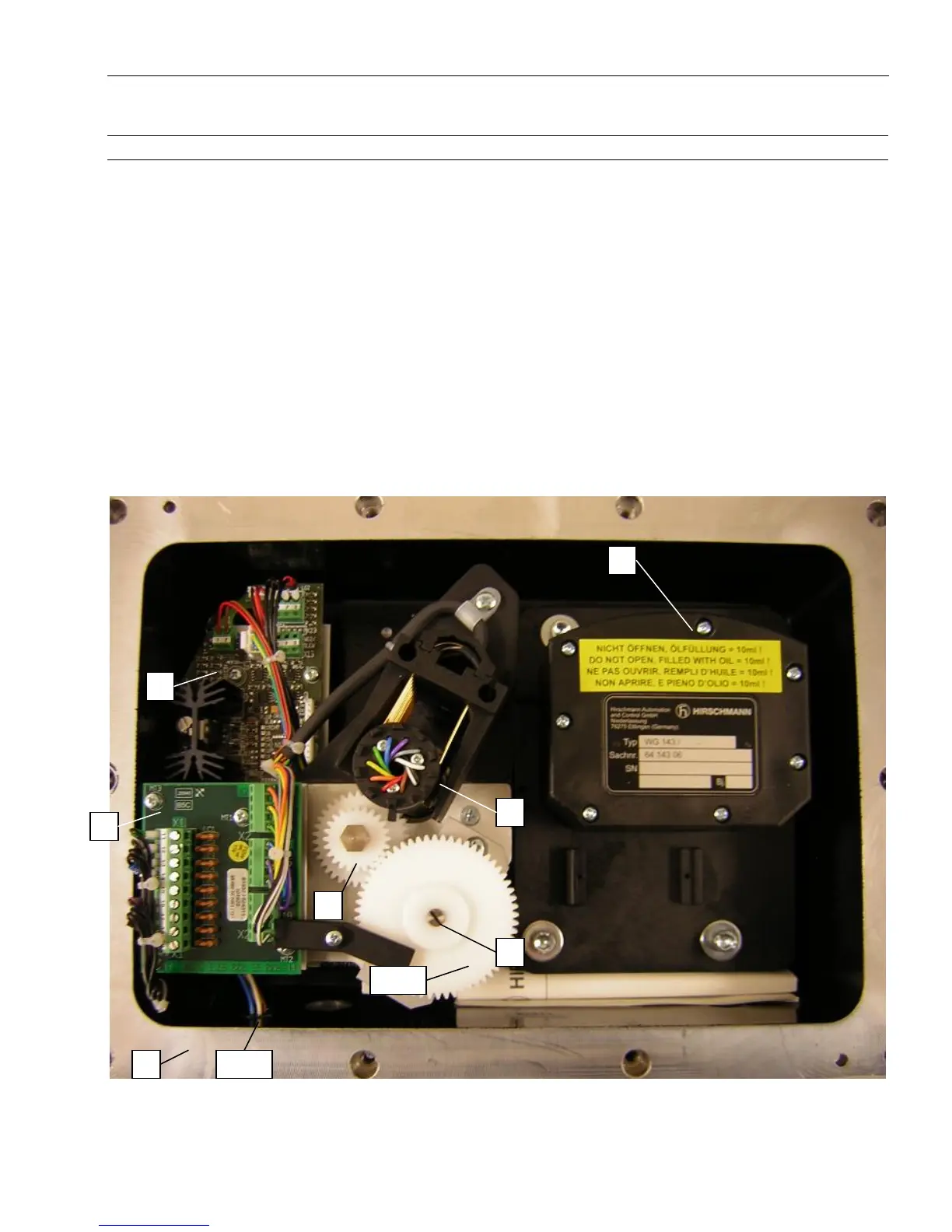

16.5 CABLE REEL, LWG521 PART NO. 068-521-060-002
NO. PART NO. QTY DESCRIPTION
1 031-300-060-440 1 CABLE REEL ACCY, LWG521 DRUM BODY W/LENGTH
CABLE
2* 000-673-080-025 176’ LENGTH SENSOR CABLE 11 CORE
3* 068-000-300-102 1 BOARD, 2 LENGTH AND ANGLE OUTPUT
4 068-000-300-063 1 BOARD, FILTER
5 067-000-300-013 1 LENGTH POTENTIOMETER LWG
6 064-143-060-009 1 ANGLE SENSOR, WG143/09
7 068-000-060-072 1 SLIP RING ASSEMBLY 11 CONDUCTOR
8 006-800-005-002 1 24T GEAR WHEEL
10* 092-000-060-387 1 CONNECTOR, 5 POLE W/WIRES
11* 068-000-100-196 1 LID, BLACK
12* 002-090-100-031 1 CABLE REEL ACCY, GASKET FOR COVER
13* 068-000-110-031 10 CABLE REEL ACCY, SCREW/CAPTIVE
14 068-000-110-038 1 GEAR WHEEL, KT200
* ITEM NOT SHOWN
1
8
1
7
3
6
4
1
10
5
14
