Hirschmann PAT IFLEX5 User Manual

Troubleshooting a sensor problem using the display
© Hirschmann Rev. I 05/22/17 190154_I.DOC
21
13 TROUBLESHOOTING A SENSOR PROBLEM USING THE DISPLAY
To determine whether there is a problem with a sensor, the iFLEX5 system has “sensor output
screen” built in to make trouble-shooting easier. This is the right place to start if you are suspecting a
problem with a sensor (and you don’t have an error code displayed).

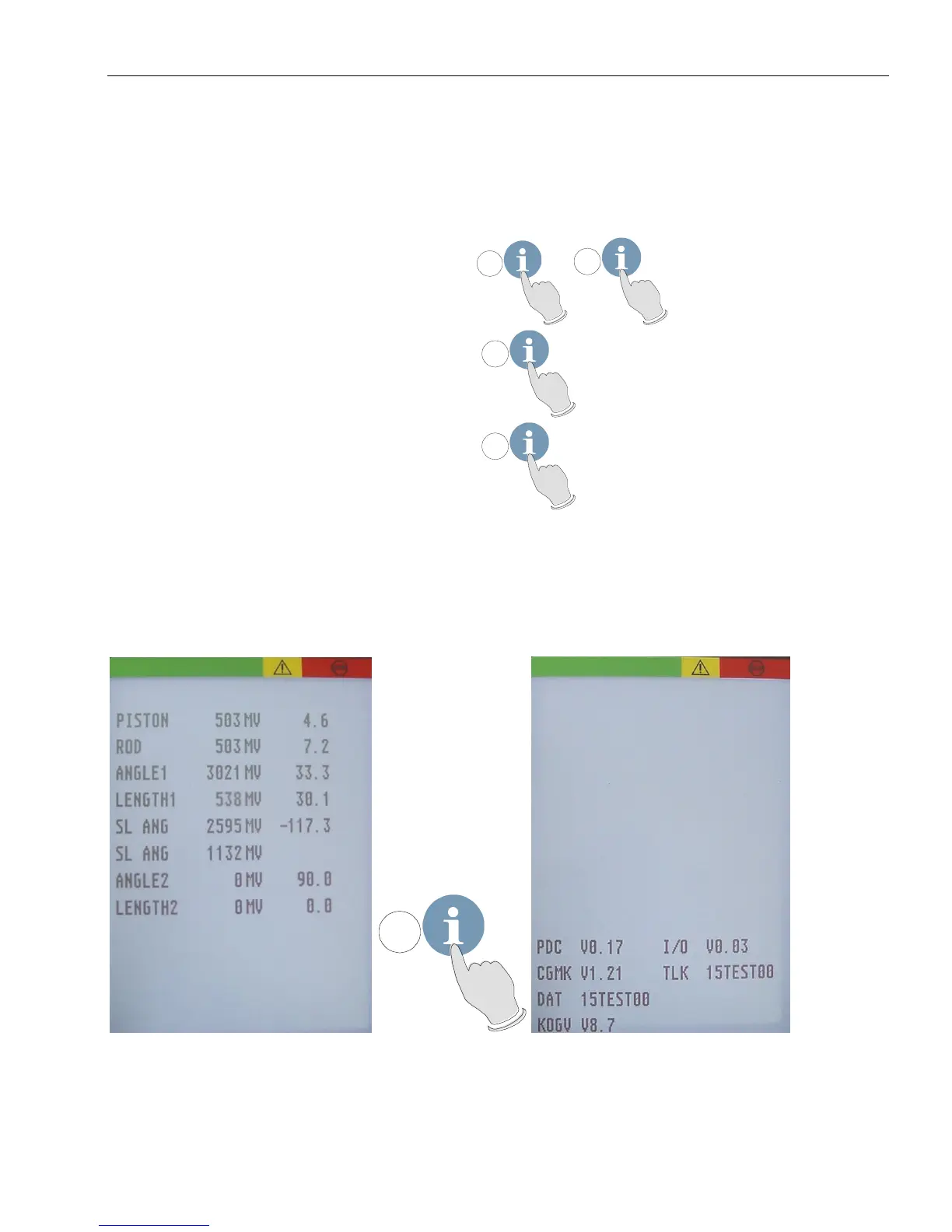

To access the sensor output screen, press
the “INFO” button twice
10
.
10
to review software version information, press
the “INFO” button once
.
10
To EXIT the sensor output screen, press the
“INFO” button once from the software version
screen to return to the operating screen
.
10
The screen will show all sensor inputs as in the example below. For each sensor, an equivalent
voltage is shown in millivolts, along with the physical sensor value that that voltage refers to.
Pressure sensors are shown with physical values of [bar], angle sensors and slew sensors in degrees
and length sensors in feet (or meter for metric charts). At the bottom of the screen, the console
software version is shown.
10
The values shown in the screen here are just examples of actual values. Refer to the table listed
below for actual value ranges.
Press “INFO”
To review
software
version
information
