Hirschmann PAT IFLEX5 - Electrical System Wiring Diagrams; Central Unit to Crane Wiring

Service Manual iFLEX5
© Hirschmann Rev. I 0522/17 190154_I.DOC
36
15.3 ELECTRICAL SYSTEM DIAGRAM STANDARD SYSTEM

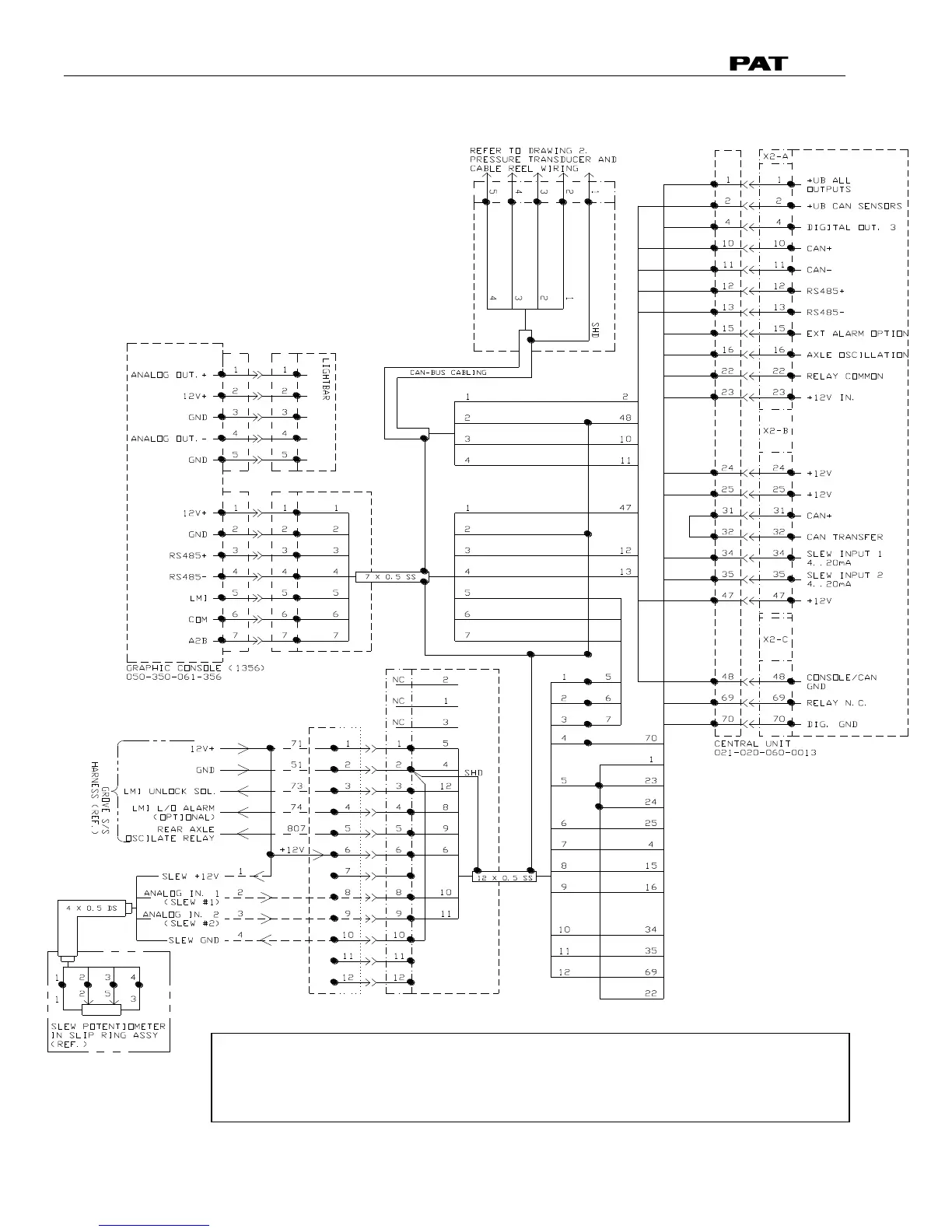

15.3.1 Central Unit to Crane and Console Wiring Diagram
Hirschmann Electronics, Inc. reserves proprietary rights to this drawing and to the data
shown there on. The drawing and data are confidential and are not to be used or
reproduced without the written consent of Hirschmann. This drawing is subject to
technical modification without prior notice.
