Hirschmann PAT IFLEX5 User Manual

Spare Part Listings
© Hirschmann Rev. I 05/22/17 190154_I.DOC
47

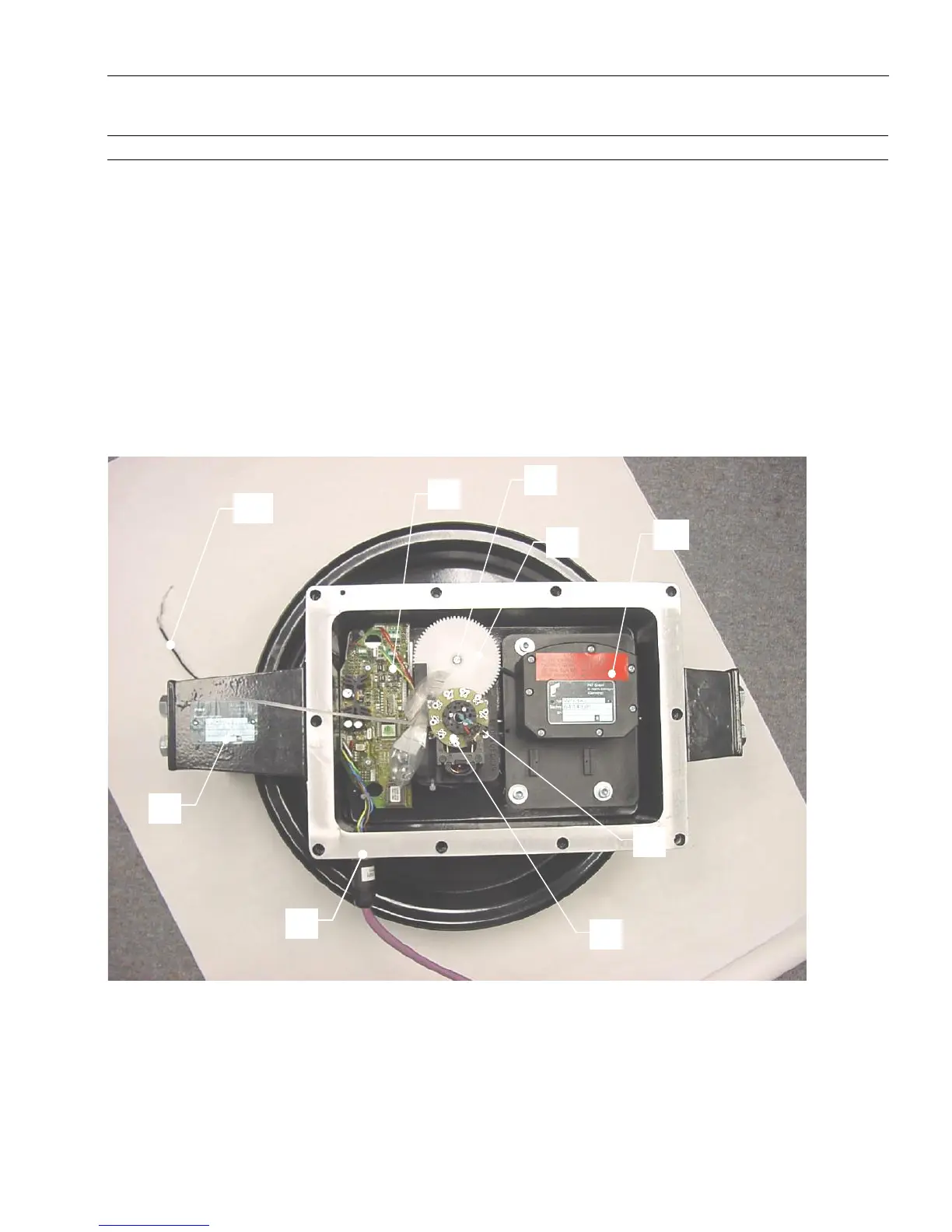

16.4 CABLE REEL, LWG508 PART NO. 068-508-060-001
NO. PART NO. QTY DESCRIPTION
1 031-300-060-468 1 CABLE REEL ACCY, LWG508 DRUM BODY W/LENGTH
CABLE
2 000-673-020-002 139’ LENGTH SENSOR CABLE
3 068-000-300-103 1 BOARD, LENGTH AND ANGLE OUTPUT
4 067-000-300-012 1 LENGTH POTENTIOMETER LWG508
5 064-143-060-009 1 ANGLE SENSOR, WG143/09
6 068-000-110-107 1 SLIP RING ASSEMBLY 2 CONDUCTOR
7* 006-800-005-001 1 25T GEAR WHEEL
8 068-000-110-038 1 75T GEAR WHEEL
9* 092-000-060-387 1 CONNECTOR, 5 POLE W/WIRES
10* 068-000-100-196 1 LID, BLACK
11* 068-000-110-003 1 CABLE REEL ACCY, GASKET FOR COVER
12* 068-000-110-031 10 CABLE REEL ACCY, SCREW/CAPTIVE
* ITEM NOT SHOWN
Also see detail on next page.
4
7
3
2
5
8
6
1
9
