Hirschmann PAT IFLEX5 User Manual

Spare Part Listings
© Hirschmann Rev. I 05/22/17 190154_I.DOC
45

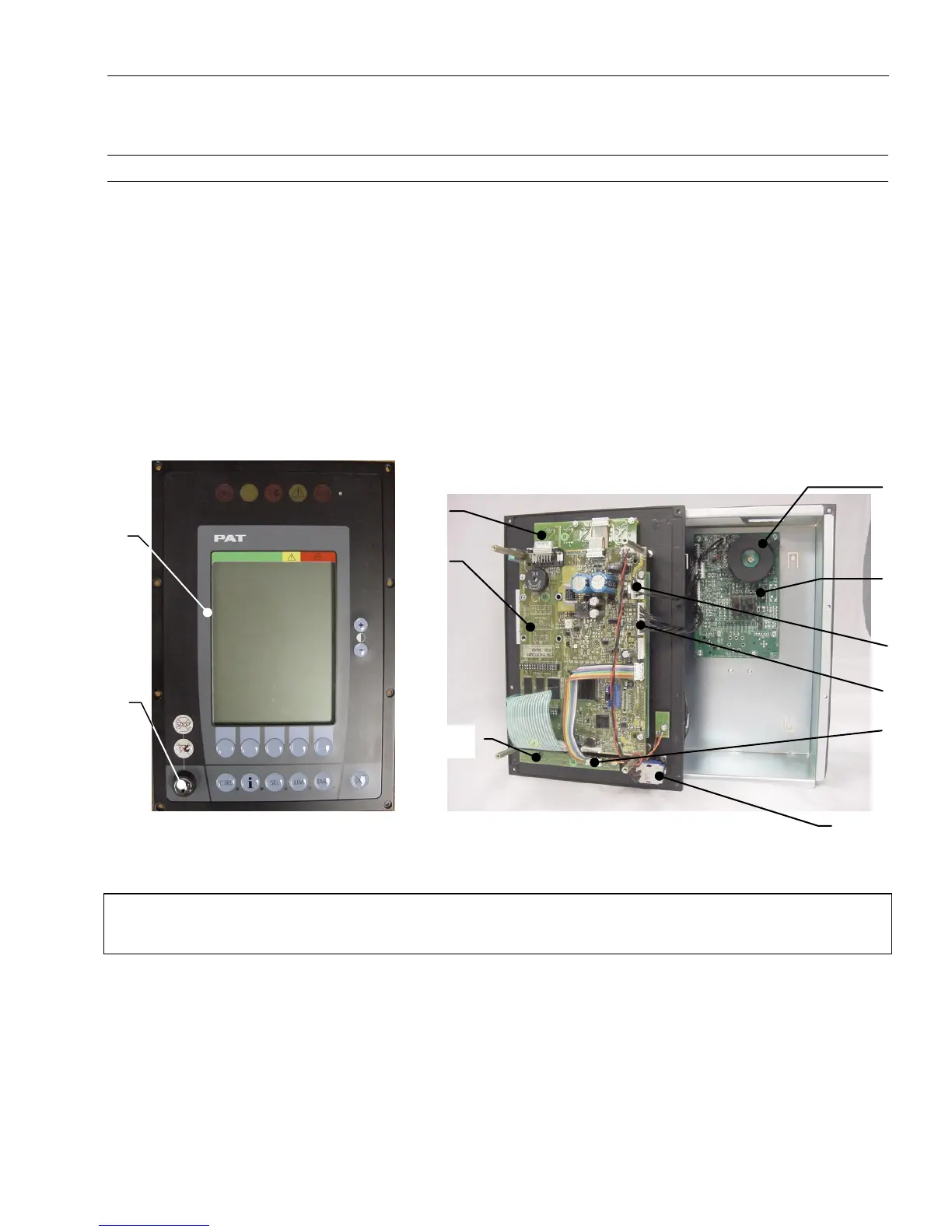

16.2 GRAPHIC CONSOLE ASSY, VERTICAL PART NO. 050-350-061-356
NO. PART NO. QTY DESCRIPTION
1 050-350-100-001 1 SPARE KEY, GRAPHIC CONSOLE
2 050-350-110-306 1 KEYSWITCH, DS350/1356
3 031-300-110-149 1 FRONTFACE WITH DISPLAY, COMPUTER BOARDS, AND
LED BOARDS
4 050-150-300-068 1 CONNECTION BOARD WITH BUZZER
5 031-300-050-223 1 FUSE, 2 AMP AUTO
6 050-150-290-061 1 CABLE, 4 POL COMPUTER BRD X1 TO CONN BRD X6,X11
7 050-150-290-063 1 CABLE, 10 POL COMPUTER BRD X2 TO CONN BRD X7
8 050-150-290-064 1 CABLE, 6 POL COMPUTER BRD X10 TO CONN BRD X23
9 050-150-300-072 1 5 LED BOARD, LMI/A2B ALARM LITE
10 050-150-300-073 1 8 LED BOARD, LED’S BY SELECTION BUTTONS
Hirschmann reserves proprietary rights to this drawing and to the data shown there on. The drawing and data are
confidential and are not to be used or reproduced without the written consent of Hirschmann. This drawing is
subject to technical modification without prior notice.
1,2
3
5
4
2
3
6
7
8
9
0
10
