Service Manual iFLEX5

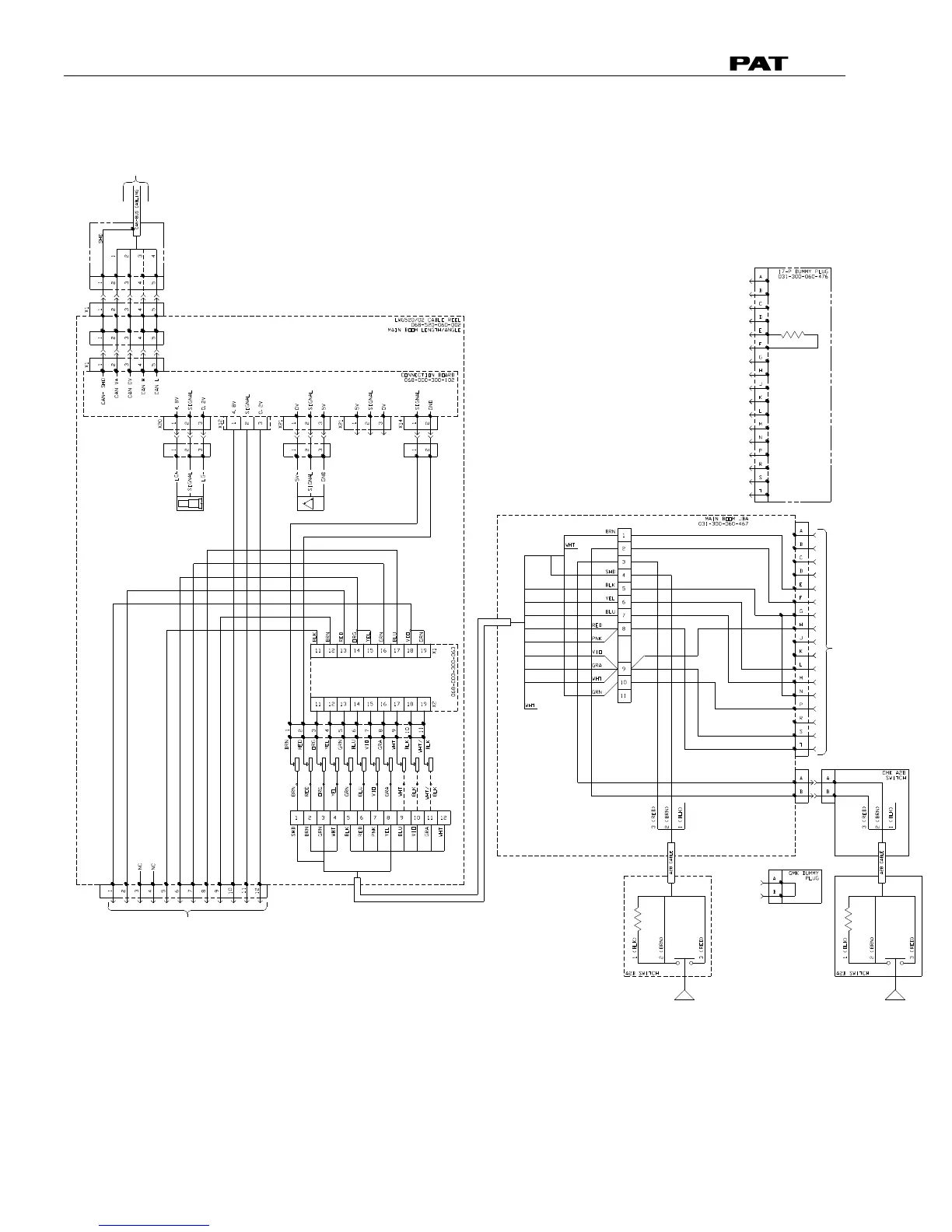

15.5.3 Cable Reel (LWG520/0002) Wiring Diagram

LUFFING JIB CONNECTION

REFER TO LUFFING EXTENSION

WIRING DIAGRAM

TO LG152/0056

REFER TO CABLE REEL

(LG152/0056) WIRING DIAGRAM

TO PRESSURE TRANSDUCER BLOCK

REFER TO CONSOLE AND SENSOR

WIRING DIAGRAM

Default Chapter4
- Table of Contents4
1 General Information7
2 Warnings7
3 Description of the System8
- Description of System Function8
- Description of a Can Bus System8
- Description of the System Components9
4 What's Wrong10
- Ihave an Error Code Indicated on the Console10
- The Displayed Angle Does Not Match the Actual Boom Angle10
- The Displayed Length Does Not Match the Actual Boom Length10
- The Displayed Slewing Does Not Match the Actual Slewing Angle10
- The Displayed Load Does Not Match the Actual Load10
- The Console Display Is Blank10
- Ihave an A2B Problem10
- I Havea Can-Bus Problem10
- Ineed to Identify a Spare Part10
5 Angle Sensing11
- Angle Sensing Error - Flow Chart12
6 Length Sensing14
- Length Sensing Error - Flow Chart15
7 Pressure Sensing17
- Pressure Sensing Error - Flow Chart17
8 Slewing Sensing18
- Slew Sensing Error - Flow Chart19
9 Load Sensing20
- Load Sensing Error - Flow Chart20
10 No Console Display21
11 A2B Problem22
12 Cann-Bus Communication23
- E6123
  - E61 - Flow Chart24
- E6225
- E6325
- E6425
  - E64 - Flow Chart26
- E6526
13 Troubleshooting a Sensor Problem Using the Display27
14 Iflex5 Boom Control System (BCS)30
- Rt9000E / Rt800E Basics30
- Tele Sequence32
- Iflex5 Bcs Digital Inputs32
- Rt9000E / Rt800E Iflex5 Bcs Digital Outputs33
- Iflex5 Bcs Analog Inputs and Pwm Outputs35
- Iflex5 Bcs Test Display37
- Boom out of Sequence38
- Tele Rod Drain Valve38
- Tele Two Stage Relief Valve38
- Hydraulic Luffing Boom Extension39
15 Drawings40
- Components of the Lmi System Pat Iflex540
- Block Diagram41
- Electrical System Diagram Standard System42
- Main Central Unit Connector44
- Electrical System Diagram Boom Control System45
16 Spare Part Listings50
- Central Unit, Iflex5 Part No. 021-020-060-00350
- Graphic Console Assy, Vertical Part No. 050-350-061-35651
- Graphic Console Assy, Part No. 050-350-061-37652
- Cable Reel, Lwg508 Part No. 068-508-060-00153
- Cable Reel, Lwg521 Part No. 068-521-060-00255
- Cable Reel, Lwg152 Part No. 067-152-060-05656
- Pressure Transducer Block, Dav314/0014 Part No. 044-314-060-01457
- Cable Assembly 11M, Part No. 031-010-101-00757
- Wiring Harness Standard, Part No. 031-010-100-54957
- Wiring Harness Boom Control, Part No. 031-010-100-55458
- Cable Assembly, 14M Part No. 031-010-100-55558
- Trs05 Repeater, Radio Windspeed Kit 031-300-104-08759
17 Service Screen for Sensor Calibration60
- Activating the Service Screen for Sensor Calibration60
- Zero-Setting the Transducer Inputs61
- Zero-Setting the Slewing Inputs61
- Length Sensor Calibration Procedure62
- Angle Sensor Calibration Procedure65
- Zero-Setting the Slew Potentiometer67
18 Error Codes68
19 Troubleshooting Moisture78
- Water Ingress78
- Condensation79
