Hirschmann PAT IFLEX5 User Manual

Service Manual iFLEX5
© Hirschmann Rev. I 0522/17 190154_I.DOC
50

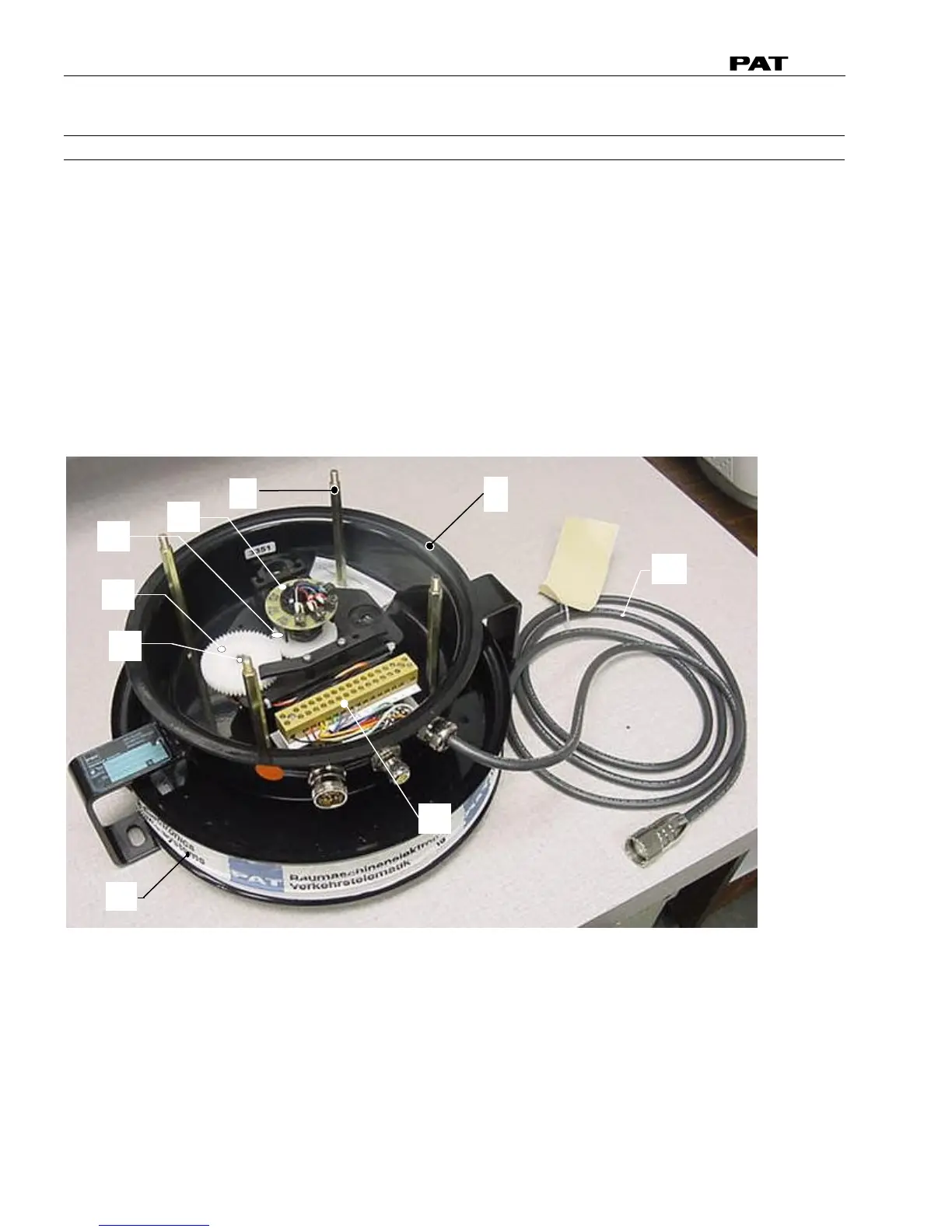

16.6 CABLE REEL, LWG152 PART NO. 067-152-060-056
NO. PART NO. QTY DESCRIPTION
1 031-300-060-441 1 CABLE REEL ACCY, LG152 DRUM BODY W/LENGTH CABLE
2* 000-673-030-022 87’ LENGTH SENSOR CABLE 3 CORE
3 068-000-110-029 1 TERMINAL STRIP
4* 068-000-300-063 1 BOARD, FILTER
5 067-000-300-012 1 LENGTH POTENTIOMETER LWG
6 068-000-100-066 1 SLIP RING ASSEMBLY 4 CONDUCTOR
7 067-000-050-075 1 55T GEAR WHEEL ON POTENTIOMETER
8 068-000-050-083 1 45T GEAR WHEEL ON CENTER SHAFT
9 000-268-030-003 4 HARDWARE, STANDOFF 6MM X 117MM MM
10* 067-000-110-020 1 HARDWARE, GASKET
11* 067-000-050-059 1 SENSOR ACCY, COVER KT152
12* 067-000-110-025 1 SENSOR ACCY, NUTS (4) & WASHER (4) FOR KT152 COVER
13 031-010-100-556 1 CABLE ASSEMBLY, 2.5m
* ITEM NOT SHOWN
7
13
3
2
1
5
9
6
8
