Service Manual iFLEX5

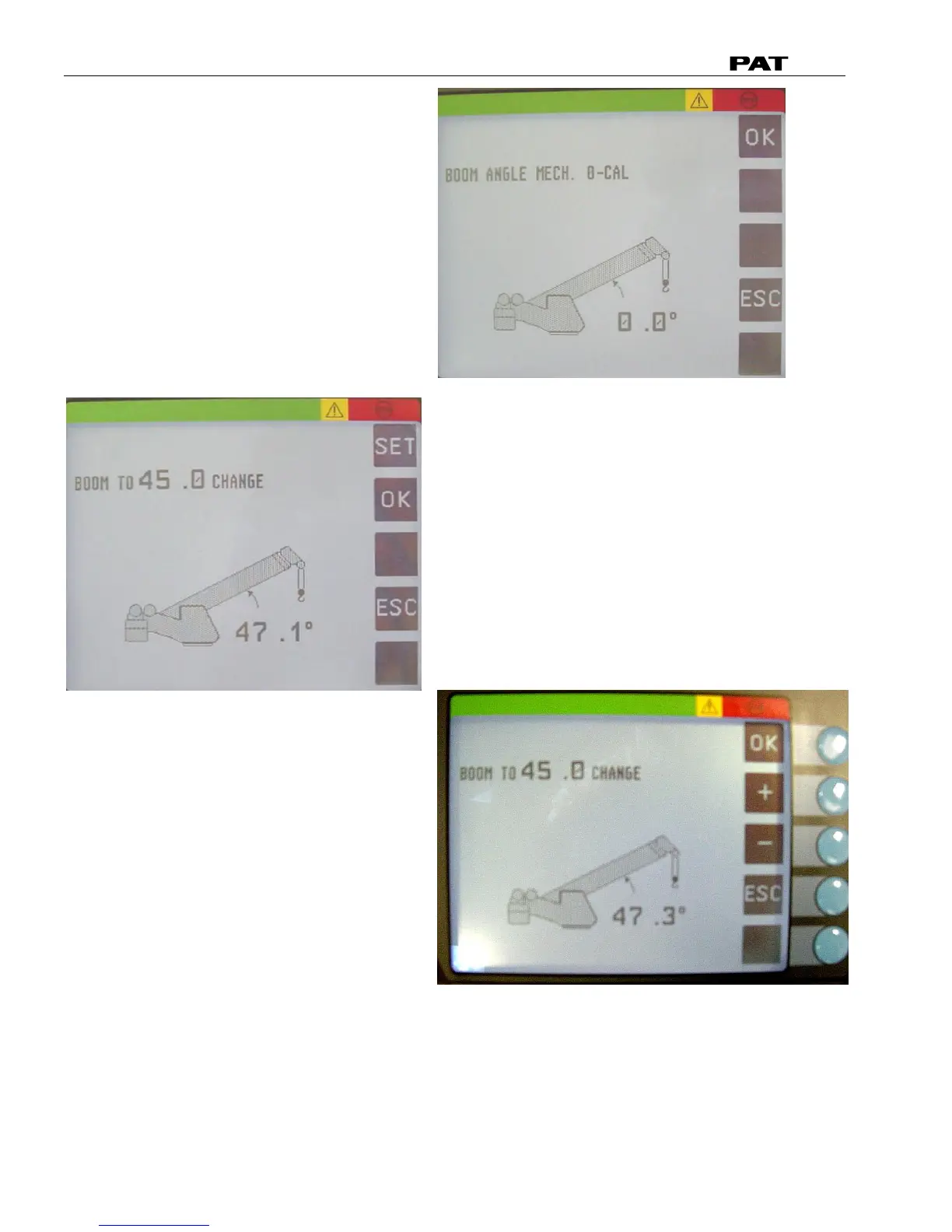

Boom up to the next correction angle, 45 degrees

(range is 40°- 50°). When the boom angle is within

the calibration range, the screen will add the

‘CHANGE’,

‘SET’ and

‘OK’ text as shown on the left.

Measure the boom angle with the inclinometer and

when the boom is positioned in the calibration range,

compare the measured angle to the displayed angle.

If the indicated angle is within +/- 0.1 degrees of the

measured angle, confirm with ‘OK’. Otherwise, select

‘SET’ to adjust the angle.

Once you push ‘SET’ , the screen is going to

change to the angle adjustment screen. Use

the ‘+’ and ‘-‘ buttons to adjust the indicated

angle to match the measured angle.

When the display shows the correct angle,

press ‘OK’.

Repeat the above procedure to verify/set the angle at 60 (range 55°- 65°) and 70 (range 65°- 75°).

boom angles.

Press ESC to leave service screen.
