Synchronizing the System Time in the
Network
UM Basic Configuration L3P
Release
7.1
12/2011
7.3
Precision Time Protocol
135

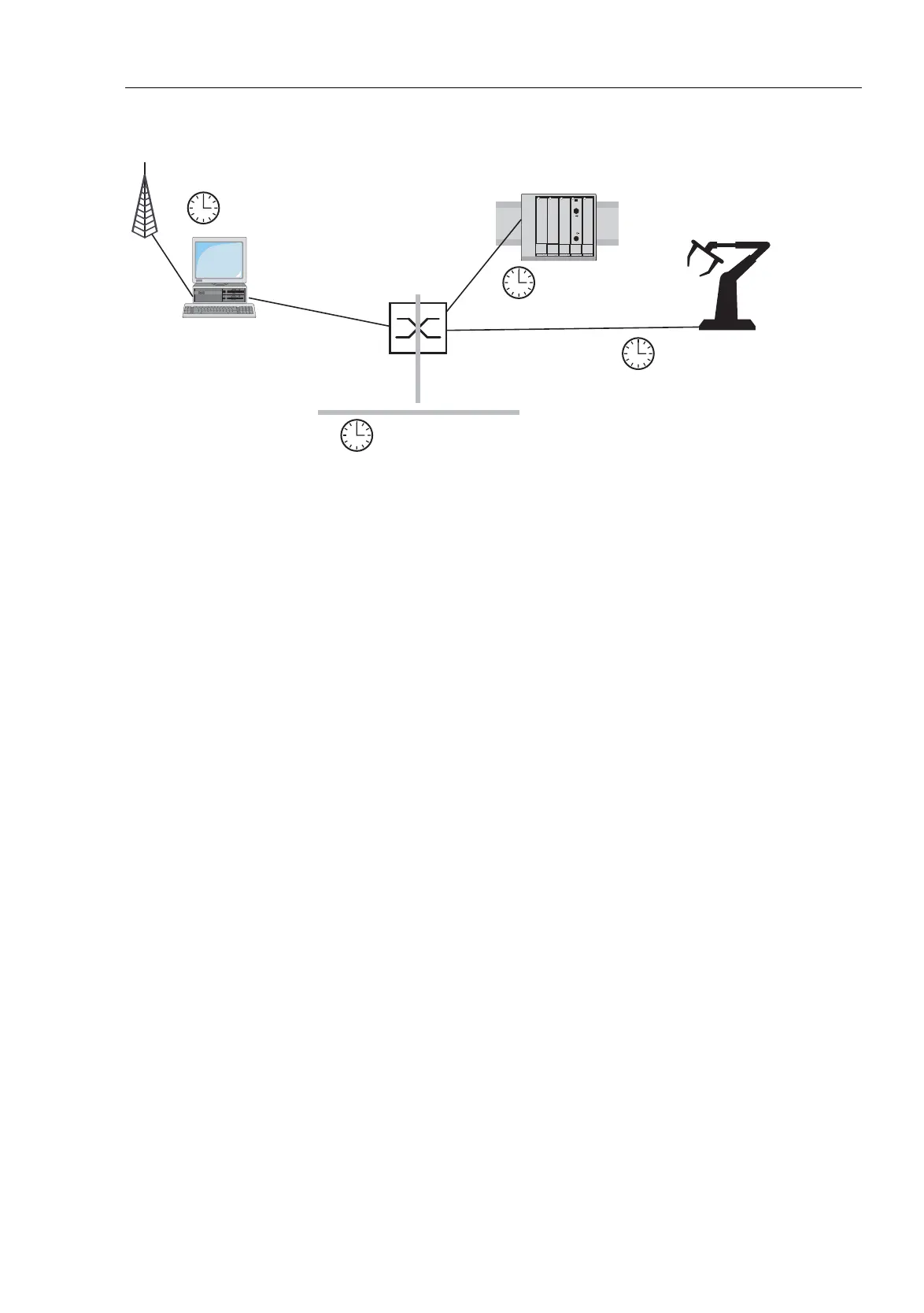

Figure 29: Integration of a boundary clock
Irrespective of the physical communication paths, the PTP allocates logical
communication paths which you define by setting up PTP subdomains. The
purpose of subdomains is to form groups of clocks which are chronologically
independent from the other domains. The clocks in one group typically use
the same communication paths as other clocks.
GPS
Reference
(Grandmaster Clock)
MasterSlave
Boundary Clock
Ordinary Clock
Ordinary Clock
Switch
PLC
