Hirschmann PowerMICE User Manual

Configuring the Ports
84
UM Basic Configuration L3P
Release 7.1 12/2011
 Port settings
– For devices with PoE select the
Basic Settings:Power over Ethernet dialog.
– For devices with PoE+ select the
Basic Settings:Power over Ethernet Plus:Port dialog.
The table only shows ports that support PoE.
 In the “POE on” column, you can enable/disable PoE at this port.
 The “Status” column indicates the PoE status of the port.
 In the “Priority” column (MACH 4000), set the PoE priority of the port
to “low”, “high” or “critical”.
 The "Class" column indicates the class of the connected device:
Class: Maximum delivered power
0: 15.4 W = As-delivered state
1: 4.0 W
2: 7.0 W
3: 15.4 W
4: reserved, treated as Class 0
 The column „Consumption [W]“ displays the current power
delivered at the respective port.
 The “Name” column indicates the name of the port, see
Basic settings:Port configuration.

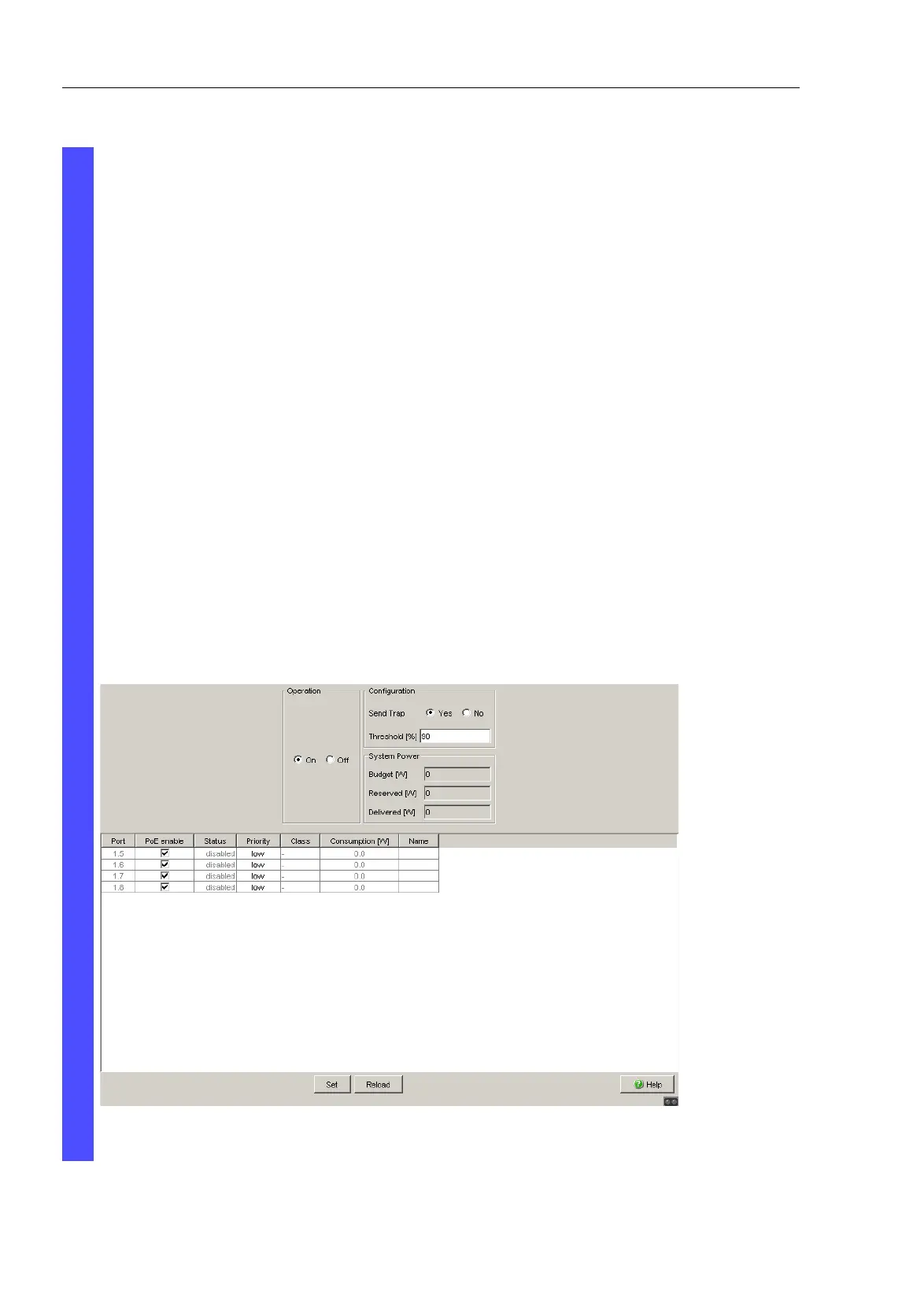

Figure 20: Power over Ethernet dialog
