Hirschmann PowerMICE User Manual

Network Load Control
UM Basic Configuration L3P
Release 7.1 12/2011
8.6 VLANs
201

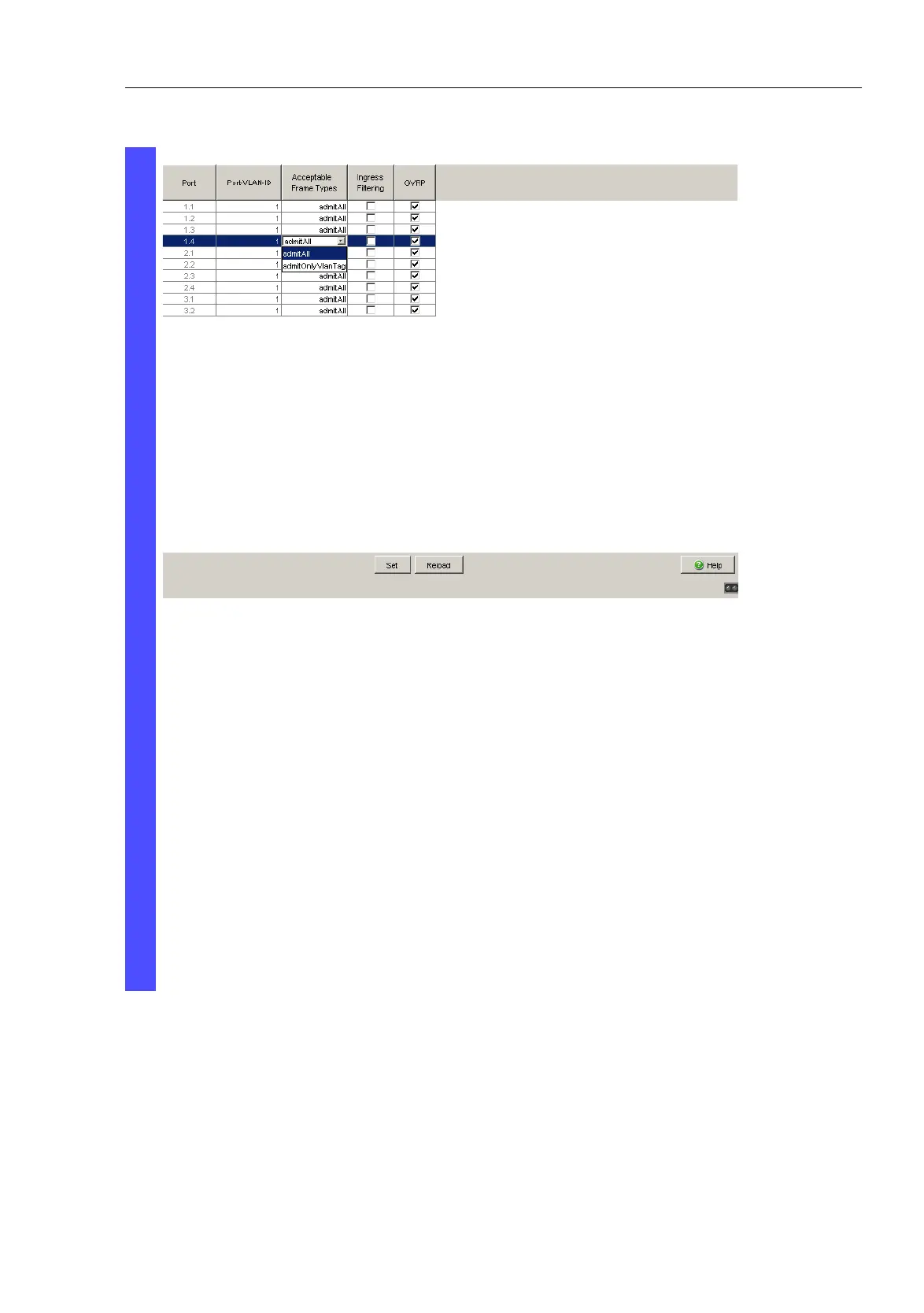

Figure 48: Assign and save Port VLAN ID, Acceptable Frame Types and
Ingress Filtering
 Assign the ID of the related VLANs (1 to 3) to the individual ports.
 Because terminal devices usually do not send data packets with a
tag, you select the admitAll setting for the terminal device ports.
Configure the uplink port with admit only VLAN tags.
 Activate Ingress Filtering at the uplink port so that the VLAN
tag is evaluated at this port.
 Click “Set” to temporarily save the entry in the configuration.
 Select the
Basics: Load/Save dialog.
 In the “Save” frame, select “To Device” for the location and click
“Save” to permanently save the configuration in the active
configuration.
