3.1 RCL Main Menu

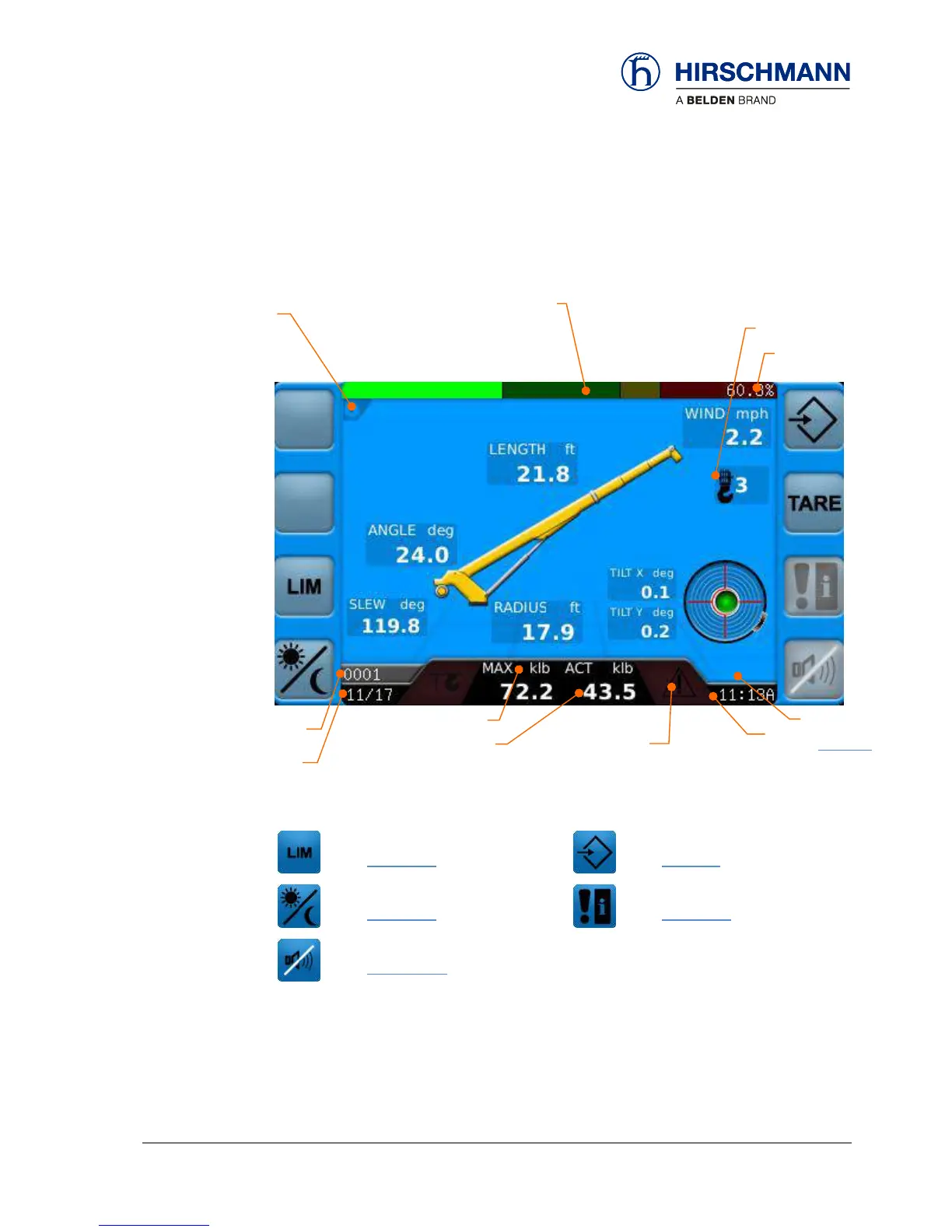

The RCL main menu is shown during crane operation and is the starting point for the selection of
various functions.
User Limits
(see Section 3.3)
Operation Confirm Screen
(see Section 4)
Display Day/Night Switch
(see Section 3.4)
System Event Information
(see Section 3.2)
Silence Alarm
(see Section 3.1.3)
Function
Keys
Load Capacity
(bar chart)
% Utilization
Operation
Mode
Event code,
as required
(Section 3.2)
Lifting Capacity
Date
Time
Warning Symbols
as required
Actual Load
Reeving
Heartbeat
