Operating Mode Selection
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 10/57
qSCALE i2 Cranes (Tool Version 3.0.34) Operators Manual / Issue B / 11-2017 / ac.
2 Operating Mode Selection
This chapter contains information, advice, and instructions for choosing an operating mode.
The RCL is only ready for operation after all the steps of the SETUP procedure have been com-
pleted.
2.1 Switching the Device On and Off
The qSCALE i2 has no on/off switch. The system starts automatically after switching on the ignition.
After switching off the ignition, the system shuts down automatically.

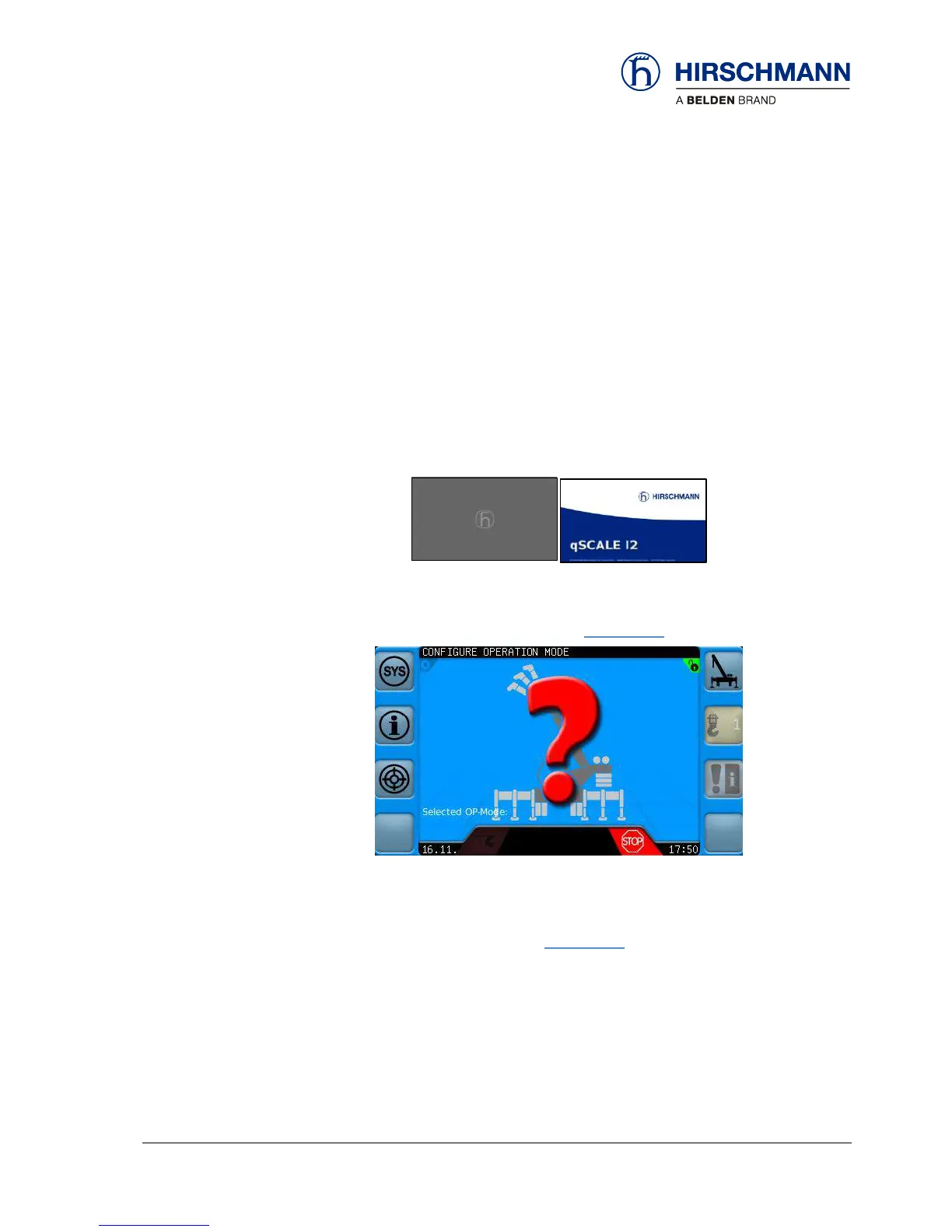

Upon switching on, the system boots and starts with the system self-tests. During the tests the boot
screen is displayed. While the system is initializing sensors the splash screen appears.
If the system was switched off for longer than three hours, the Configure Operation Mode screen
appears automatically after the system self-tests (see Section 2.2.1).
The Configuration SETUP procedure is necessary to determine a valid operation mode correspond-
ing to the current rigging state of the crane. In case of hook operation mode, it is necessary to input
the actual part of lines (number of reeving, see Section 2.2.3). The main working screen is not able
to be entered if the reeving is not set!
After acknowledgment of the inputs, the system is ready for operation.
