Hirschmann qSCALE i2 User Manual

Operation
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 26/57
qSCALE i2 Cranes (Tool Version 3.0.34) Operators Manual / Issue B / 11-2017 / ac.

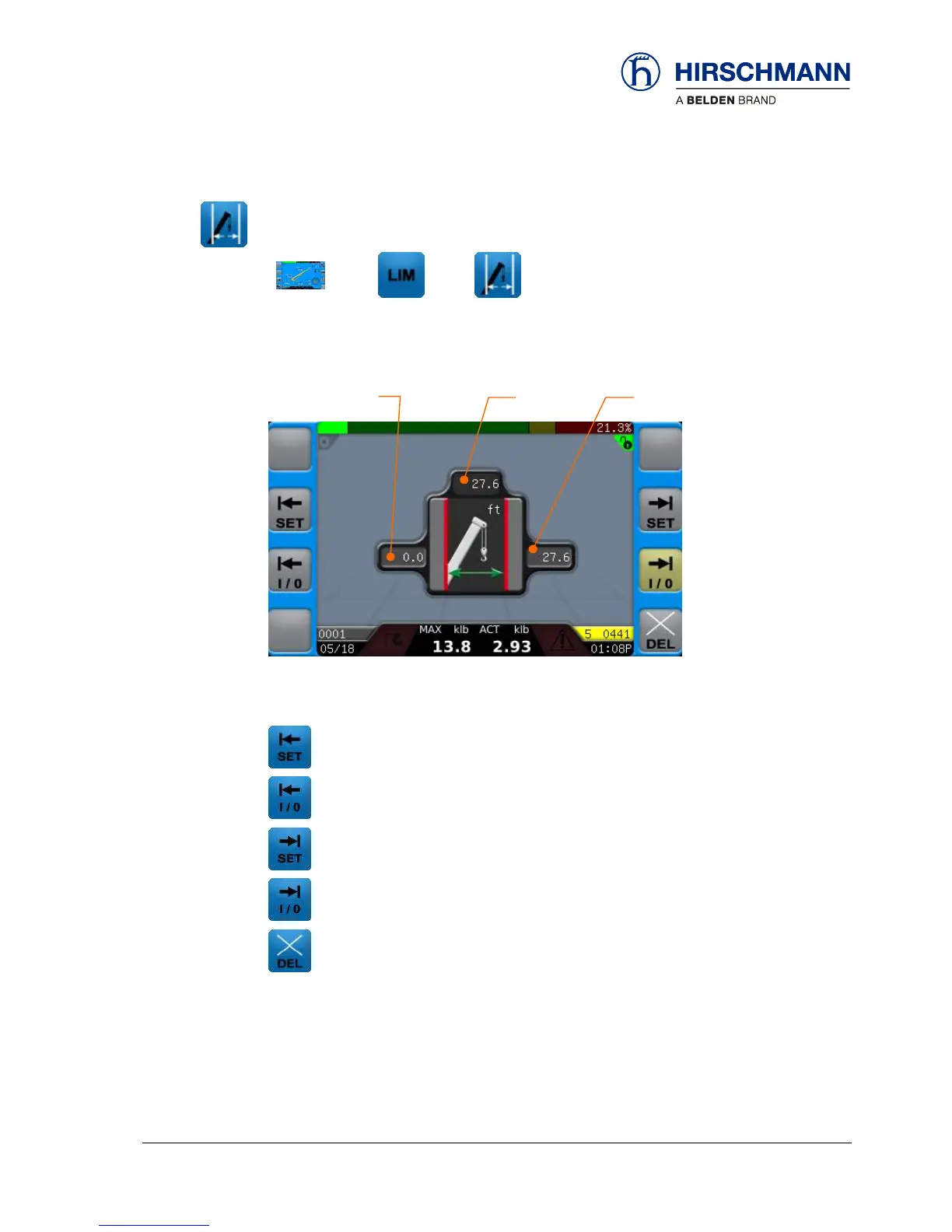

3.3.2 Radius Monitoring
Upper and Lower Radii Limits are able to be programmed.


MAIN
WORKING
SCREEN
USER
LIMITS
RADIUS
LIMIT
Set and Save Current Radius as Minimum Radius Limit
Activate or Deactivate Minimum Radius Limit
Set and Save Current Radius as Maximum Radius Limit
Activate or Deactivate Maximum Radius Limit
Deactivate Limits
Example
Function Keys
Current
Radius
Saved Maximum Radius
Value
Saved Minimum
Radius Value
