Hirschmann qSCALE i2 User Manual

Operation
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 25/57
qSCALE i2 Cranes (Tool Version 3.0.34) Operators Manual / Issue B / 11-2017 / ac.

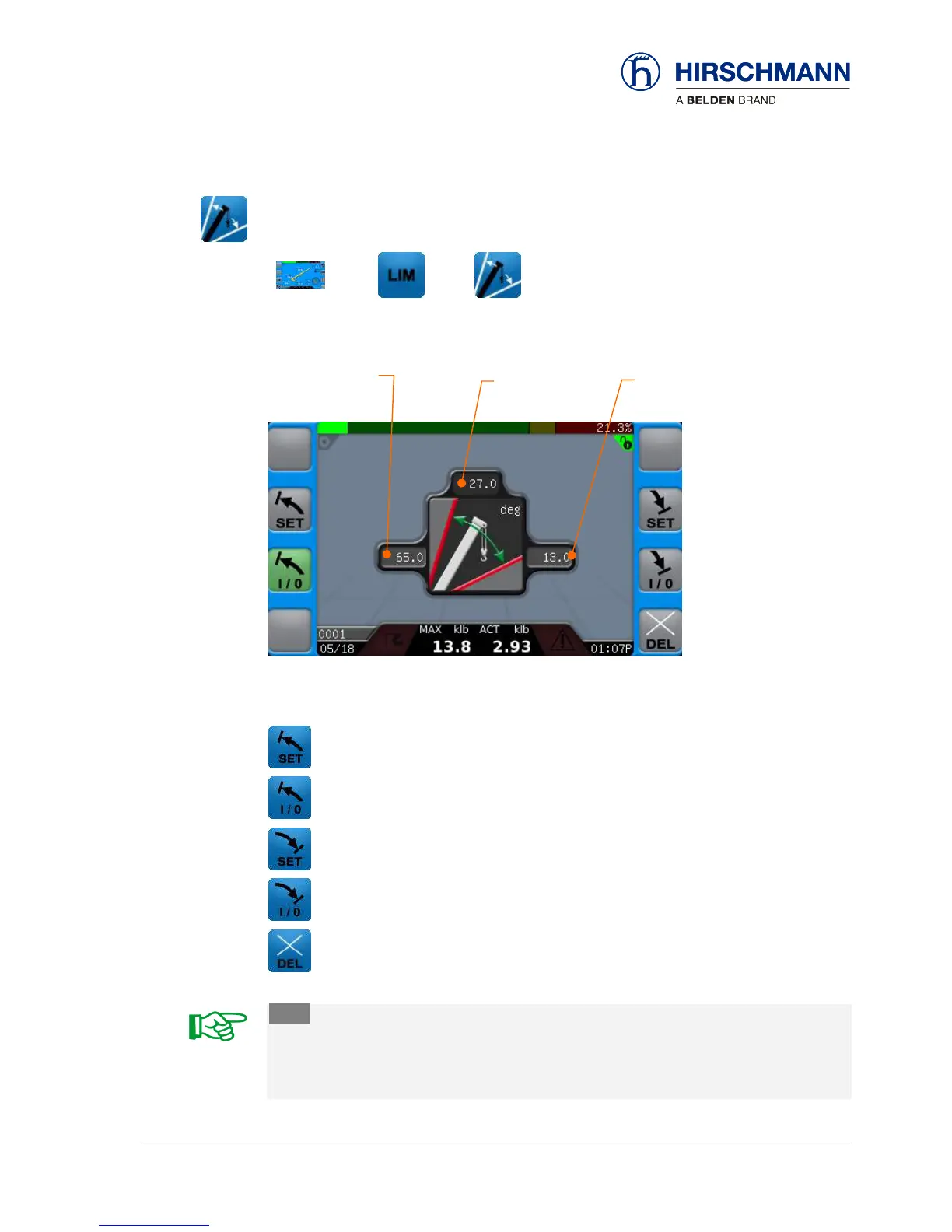

3.3.1 Boom Angle Monitoring
Upper and Lower Boom Angle Limits are able to be programmed.


MAIN
WORKING
SCREEN
USER
LIMITS
ANGLE
LIMIT
Set and Save Current Boom Angle as Upper Angle Limit
Activate or Deactivate Upper Boom Angle Limit
Set and Save Current Boom Angle as Lower Angle Limit
Activate or Deactivate Lower Boom Angle Limit
Deactivate Limits
HINT
The maximum limit cannot be set if it is less than the lower limit even when the lower limit is
inactive.
Example
Function Keys
Current Boom
Angle
Saved Lower Angle
Limit
Saved Upper Angle
Limit
