Hirschmann qSCALE i2 User Manual

Operation
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 24/57
qSCALE i2 Cranes (Tool Version 3.0.34) Operators Manual / Issue B / 11-2017 / ac.

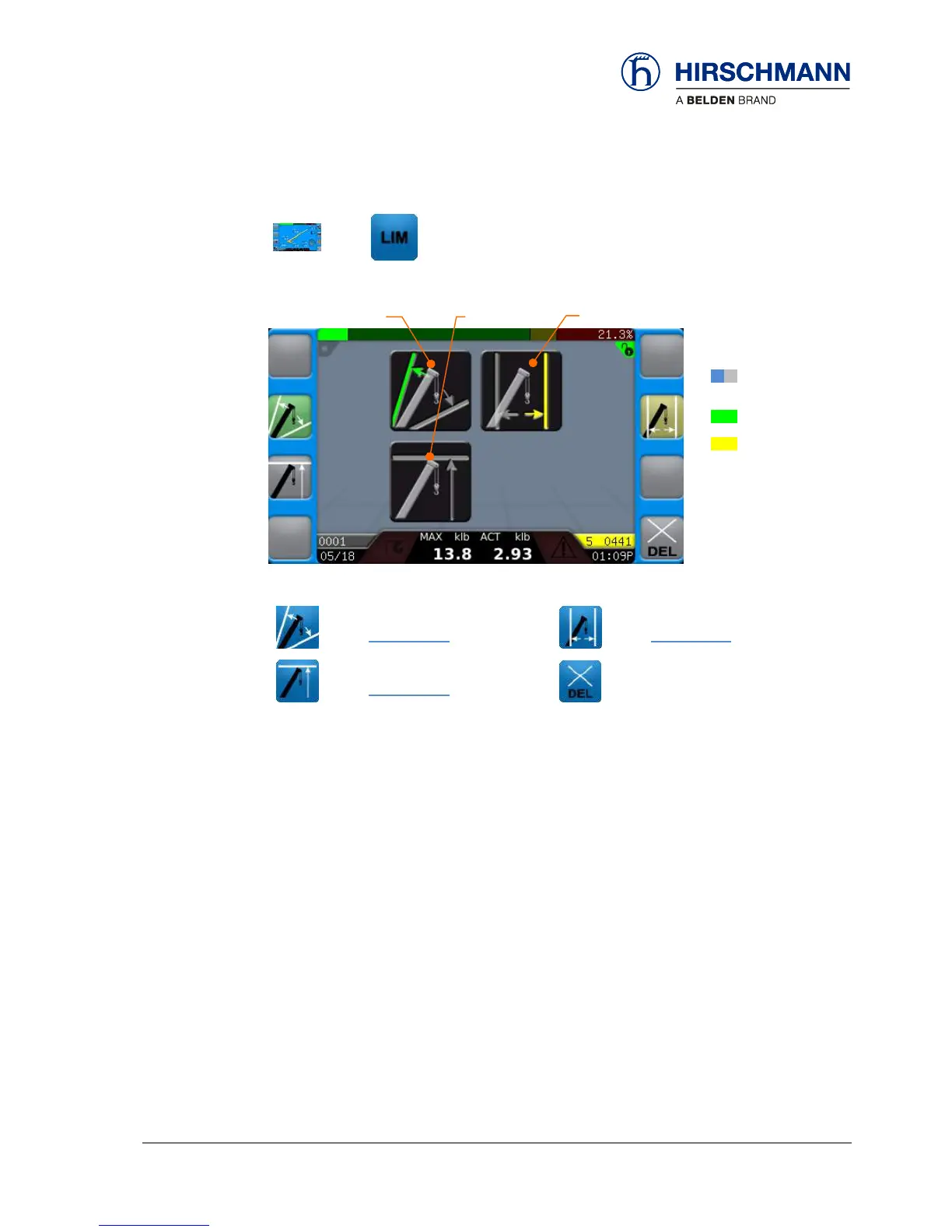

When the User Limits screen is called up, the available user limits will appear.

MAIN
WORKING
SCREEN
USER
LIMITS
Boom Angle Limit
(See Section 3.3.1)
Radius Limit
(See Section 3.3.2)
Height Limit
(See Section 3.3.3)
De-activate all limits.
Available only if a limit is set and active.
The colors of the function buttons and symbols will change depending on the state of the limit.
Example
No Limits
Programmed
Function Keys
Radius Limit
Angle Limit
Height Limit
Color Meanings:
Limit inactive or not
programmed
Limit active
Limit value reached
or exceeded
