Hirschmann qSCALE i2 User Manual

Operation
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 23/57
qSCALE i2 Cranes (Tool Version 3.0.34) Operators Manual / Issue B / 11-2017 / ac.
3.3 Setup User Limits
The RCL system has programmable functions for monitoring geometric limits of the working area:
 Boom Angle Monitoring See Section 3.3.1
 Radius Monitoring See Section 3.3.2
 Height Monitoring See Section 3.3.3
Programming is carried out via an interactive menu. The functions can be set individually or in
combination. Active limit values are indicated by the display of color-highlighted symbols.
Depending on the model of crane, these user limits may or may not be activated.

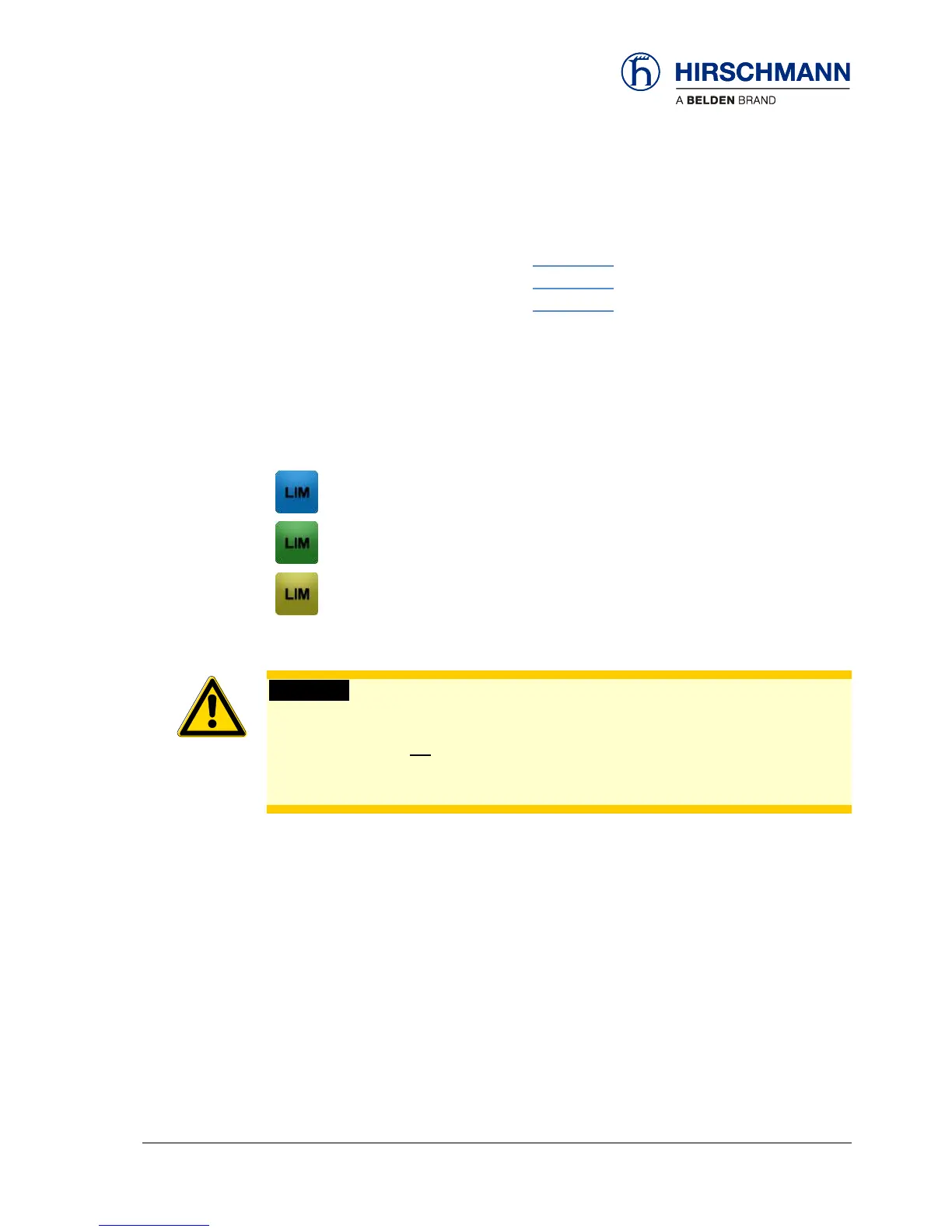

Colors of function key (in main menu):
(Grey) Limit not programmed or inactive
(Green) Info: One or more limits set and active
(Yellow) Warning: One or more limit values have been reached or exceeded.
CAUTION
The user limit function is a monitoring function.
Crane movements are not switched off when user limit values are reached or exceeded!
If one or more limits are reached or exceeded, the background color of the LIM key changes
to yellow. The corresponding values are also displayed in yellow.
