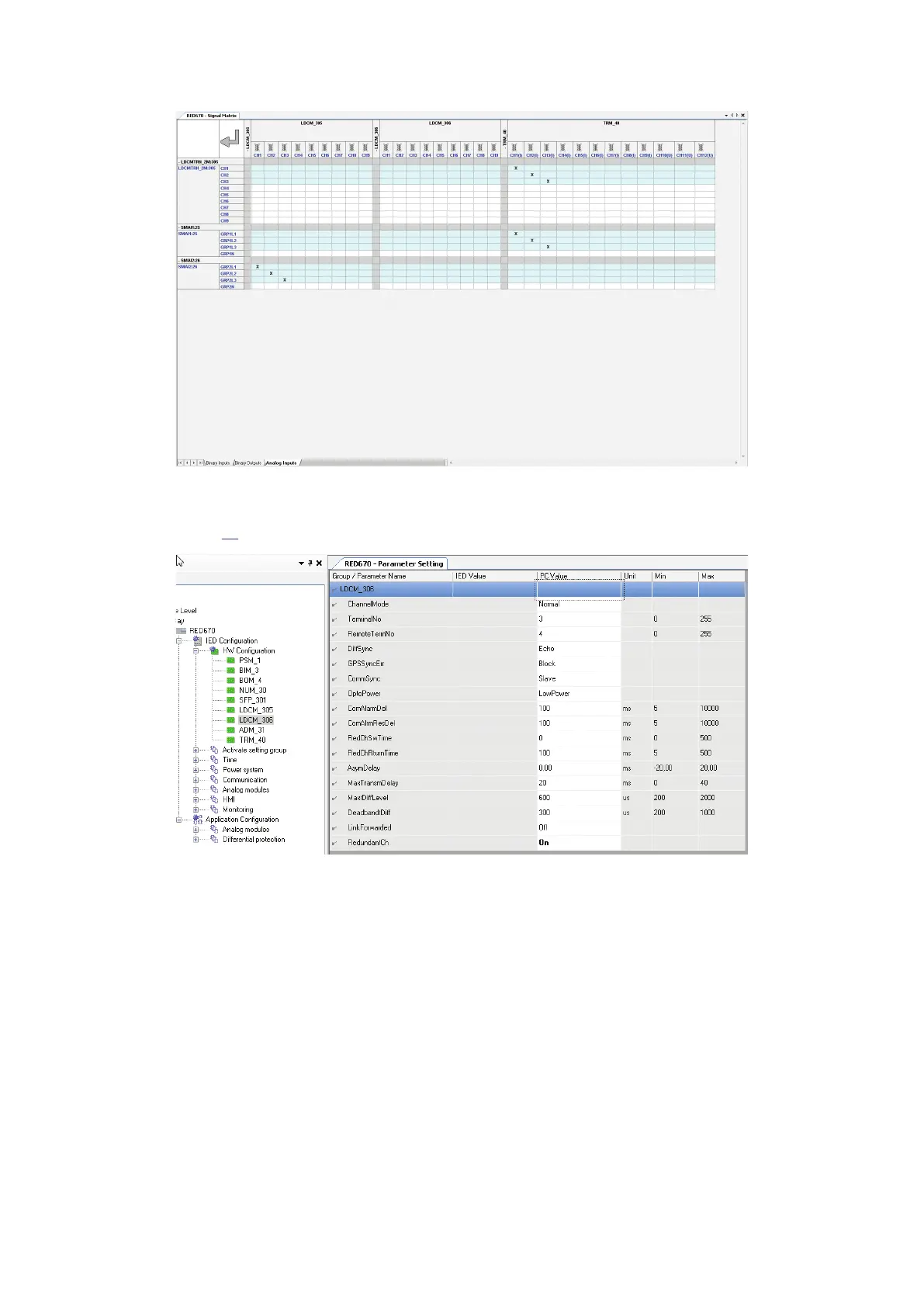

IEC10000069 V1 EN-US
Figure 21:
Signal matrix for one main and one redundant channel
Figure
22
shows a setting example when using a redundant channel.
IEC10000070 V1 EN-US
Figure 22:
Setting example with a redundant channel
Section 4
1MRK505382-UEN Rev
. K
Analog and binary signal transfer for line differential protection
26
Communication set-up, 670/650 series
Application Guide
© 2017 - 2023 Hitachi Energy
. All rights reserved
31
33
