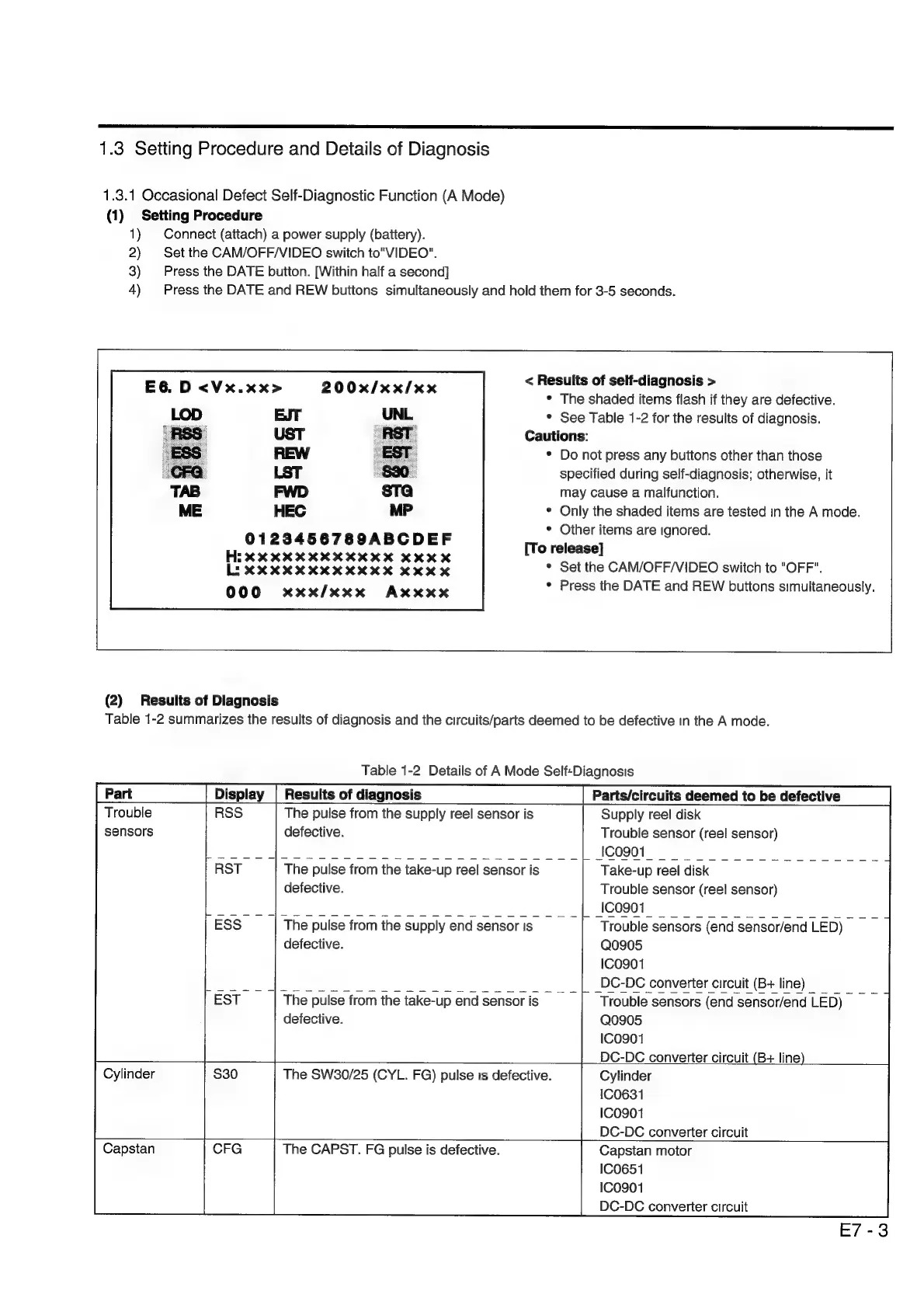

1.3 Setting Procedure and Details of Diagnosis
1.3.1 Occasional Defect Self-Diagnostic Function (A Mode)
(1) Setting Procedure
1) | Connect (attach) a power supply (battery).
2) Set the CAM/OFF/VIDEO switch to"VIDEO".
3) Press the DATE button. [Within half a second]
4) Press the DATE and REW buttons simultaneously and hoid them for 3-5 seconds.
E6. D <Vx.xx>
200x/xx/xx
UNL
HEC
0123456789ABCDEF
Hix xxx xKKKKKKK KKK
LE XM MMR KKKKKMHK KKM
000 xxx/xxx Axxxx
(2) Results of Diagnosis
< Results of self-diagnosis >
* The shaded items flash if they are defective.
* See Table 1-2 for the results of diagnosis.
Cautions:
* Do not press any buttons other than those
specified during self-diagnosis; otherwise, it
may cause a malfunction.
* Only the shaded items are tested in the A mode.
¢ Other items are ignored.
[To release]
* Set the CAM/OFF/VIDEO switch to "OFF".
* Press the DATE and REW buttons simultaneously.
Table 1-2 summarizes the results of diagnosis and the circuits/parts deemed to be defective in the A mode.
Table 1-2 Details of A Mode Self+Diagnosis
Capstan
The CAPST. FG pulse is defective.
Display | Results of diagnosis Parts/circuits deemed to be defective
Trouble RSS The pulse from the supply reel sensor is Supply reel disk
sensors defective. Trouble sensor (reel sensor)
meee 7 _ | C0901
RST The pulse from the take-up reel sensor is Take-up reel disk
defective. Trouble sensor (reel sensor)
| s ee 7 __ _{ 100901
ESS The pulse from the supply end sensor is Trouble sensors (end sensor/end LED)
defective. Q0905
ICO901
[ | 7 7 DC-DC converter circuit (B+ line)
EST The pulse from the take-up end sensor is Trouble sensors (end sensor/end LED)
defective. Q0905
IC0901
DC-DC converter circuit (B+ line)
Cylinder $30 The SW30/25 (CYL. FG) pulse is defective. Cylinder
1C0631
IC0901
DC-DC converter circuit
Capstan motor
IC0651
1C0901
DC-DC converter circuit
E7-3
