LAB-X5000 Series User Guide
Leaving secondary safety window in place inside the sample port, insert a sample cup 3.4.4.
into the sample port on the top of the instrument as shown above.
Press the start button. It will have a lighted green ring around it when the instrument 3.4.5.
is ready.
The sample will rotate out of the sample port and into the path of the X-rays. The 3.4.6.
lighted ring around the start button will extinguish and the cancel button ring will light
red. This indicates that the X-Ray tube is powered and the sample is being analyzed.
Press the Cancel button to stop the analysis at any time, if necessary. 3.4.6.1.
Wait for the analysis to finish and the results to appear. 3.4.7.
Analysis progress will be displayed on the screen in a progress bar, with time 3.4.7.1.
remaining on the right.

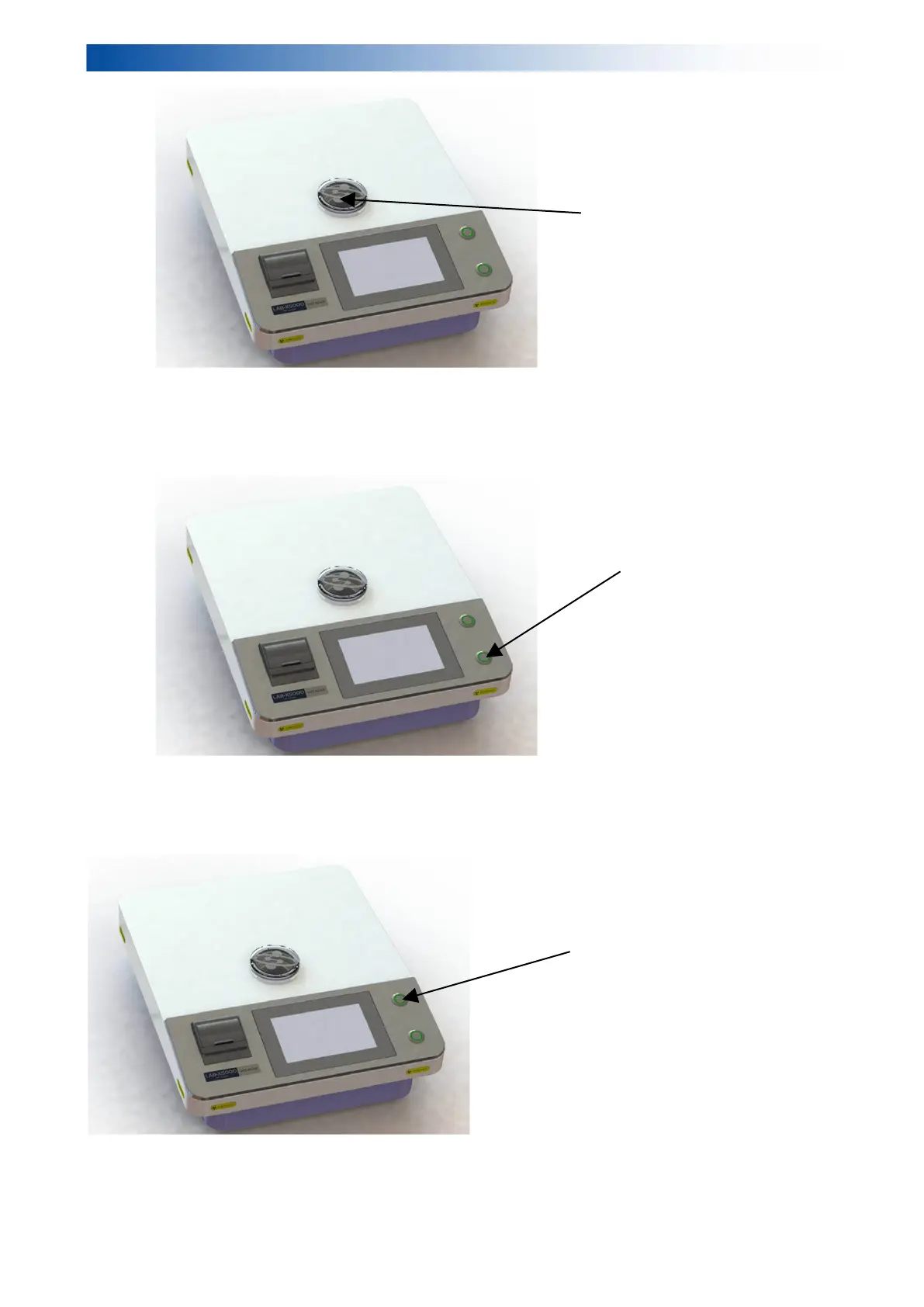

Remove glass cover and
insert secondary safety
window or sample cup into
sample port here.
When lighted ring is
GREEN, instrument is
ready to analyze. Press
this button to START
analysis.
When lighted ring is RED,
instrument is analyzing and
X-rays are ON. Press this
button to STOP analysis.
