2 Unit installation
RCIM - 4-way cassette (compact)
SMGB0099 rev.0 - 12/2016
32
Nº Part
1 Indoor unit
2 Refrigerant pipe connections
3 Electrical box
4 Fixing plate (Indoor unit)
5 Indication “PIPE SIDE”
6 Air panel
7 Long screw (4)
8 Mounting sheet

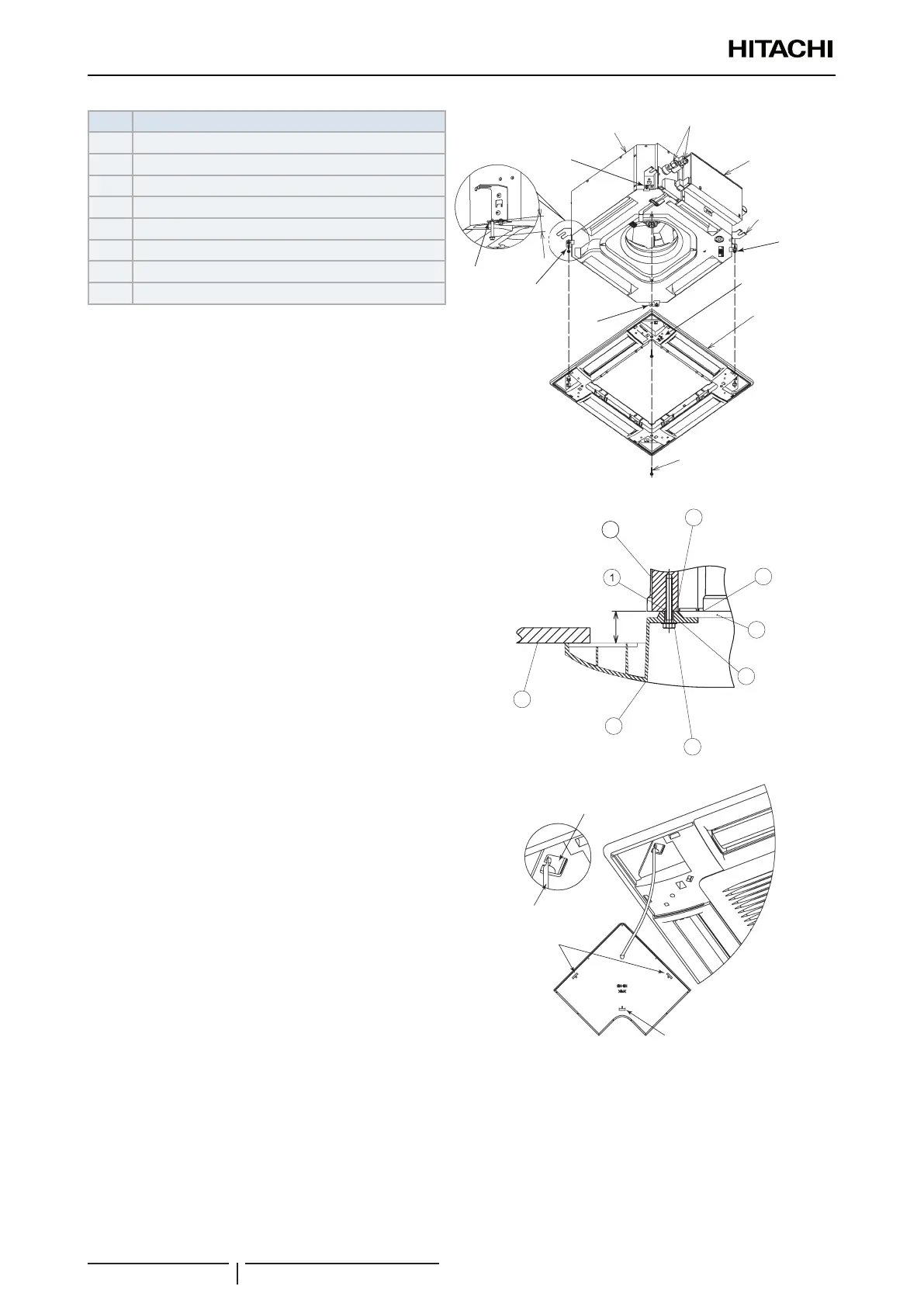

Fit the air panel in the attachment position using the
screws supplied (M5). First secure the screws in positions
-A- and -B- and then the rest.
33
A
B
A
B
1
2
3
4
5
6
7
8
1 Tighten the xing screw completely
2 Indoor unit
3 Fixing sheet for air panel (indoor unit side)
4 Bottom side of indoor unit
5 Sealing gasket
6 Fixing sheet for air panel (panel side)
7 Fixing screw for air panel
8 Air panel
9 Fase ceiling
16
Check that there are no gaps in the touching surface
between the indoor unit and the air panel. Gaps may
cause air leaks or condensation.
Attach the corner pocket covers (4 portions) after the air
panel is mounted completely.
a. Catch the band at the rear side of the corner
pocket cover onto the projection at the air panel as
shown in the next gure.
Fixing hole (B)
Fixing hole (A)
Projection
Strap
To Next Page
