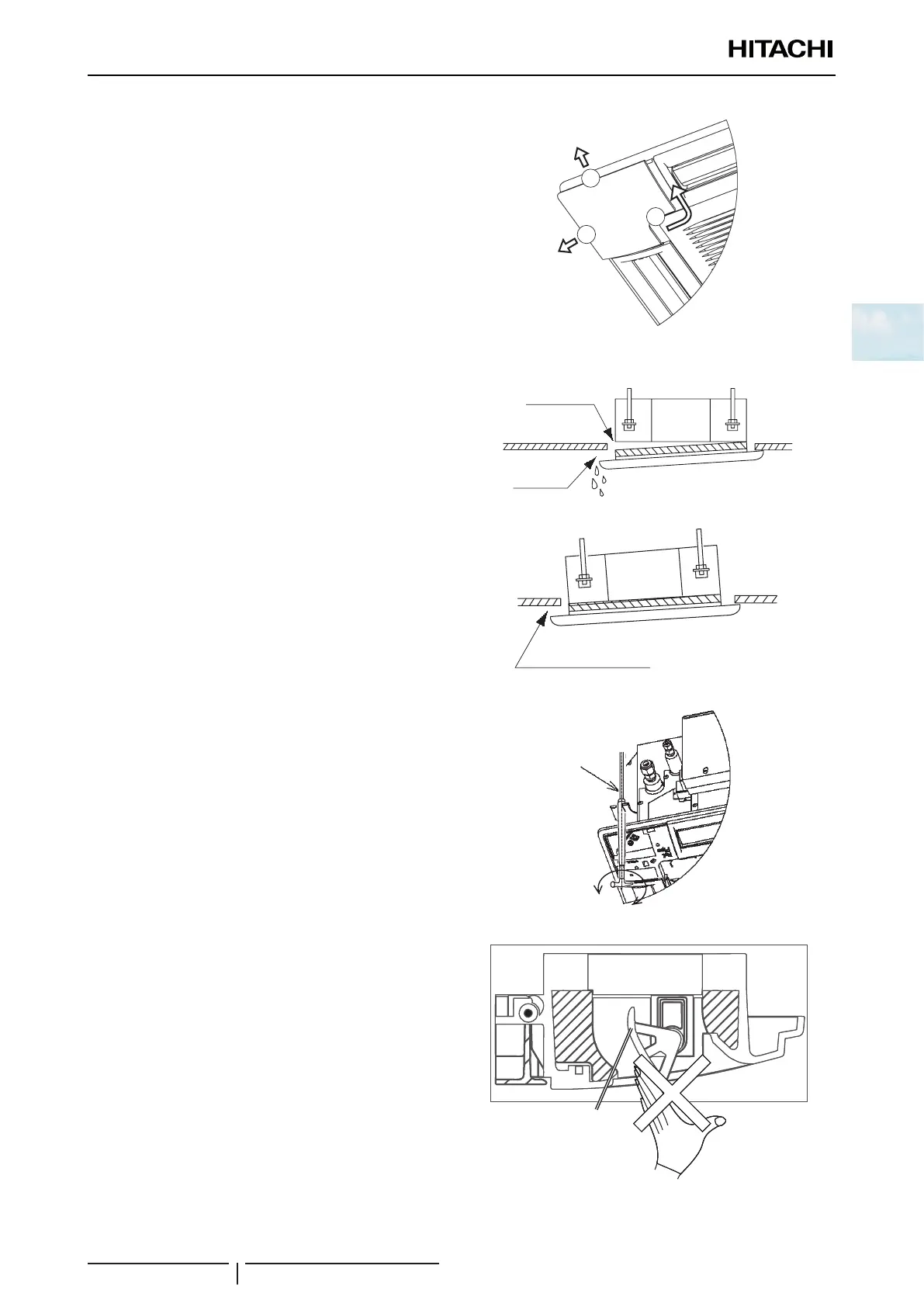

2 Unit installation
RCIM - 4-way cassette (compact)
SMGB0099 rev.0 - 12/2016
33
2
b. Insert the xing hooks (2 portions) at A to the air
panel and insert the xing hook (1 portion) at B to
the air panel.
? NOTE
• Catch securely the strap onto the projection. If not, the
comer pocket cover may fall down when removing it so that
may cause injury.
• Catch securely the xing hooks of the corner pocket cover
to the air panel.
A
A
B
Considerations following air panel installation
Tighten the long bolts appropriately. Otherwise, installation
faults may be caused.
Smudge
Dewing
Readjust the height of the indoor unit if gaps are seen
around it.
Use long bolts and nuts for readjustment, as indicated
below.
No gap shall exist
Once the air panel is installed, the nal height of the indoor
unit can be adjusted using a wrench through the corner
cover.
Excessively adjusting the height leads to condensation
leaks from the drain pan.
Wrench
! CAUTION
Do not move the air louver by hand. The drive mechanism may be
damaged.
Louver
