2 Unit installation
RPK - FSN(H)3M Wall mounted
SMGB0099 rev.0 - 12/2016
60

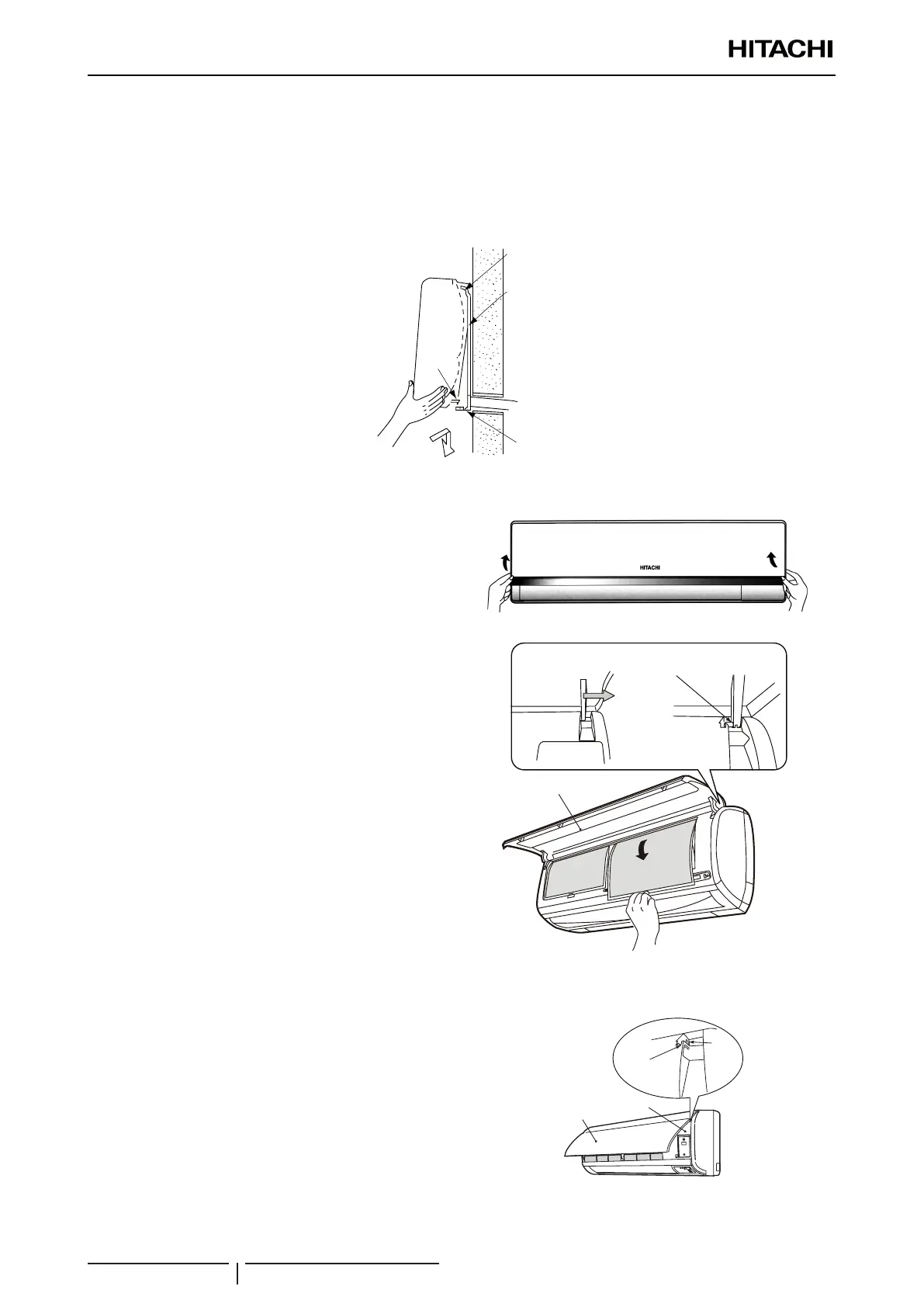

Lift the unit carefully.
Hang the indoor unit on the mounting bracket, keeping it vertical. Secure the bottom cover and the mounting bracket with
three screws.
! CAUTION
Make sure the unit is hanging correctly on the mounting bracket. Otherwise, the bracket could fall.
Extrusion
Hook
Hook
Mounting
bracket
Removal of the front panel for RPK-(0.6-1.5)FSN(H)3M
Hold both sides of at panel and open it fully.
Lift up the air lter, detach the catches from the indoor unit
and remove the air lter downward.
After the right arm shaft is expanded outward and the
shafts are removed from the front panel, pull the at panel
frontward while the right arm shaft is slightly expanded
outward.
Flat panel
Remove this part
from the hole.
Expand the shaft
toward arrow
direction.
Attaching at panel for RPK-(0.6-1.5)FSN(H)3M
Insert completely the left and right arm shafts of at panel
into the holes along the guide at the front panel. After the
at panel is attached completely, insert the catches for air
lter to x.
Flat panel
Hole
Guide at
front panel
Front panel
To Next Page
