Protection against movement caused by earthquake (Option)
SAFETY-32
SAFETY SUMMARY
Protection against movement caused by earthquake (Option)
(Continued)
EO control unit
* The values on this specification is based on the calculation.
* The bolts to fix on the floor are customer’s supplied items.
Please prepare the hexagon head bolts to floor (M8 X 40 (or higher) SUS) (8 pcs) before
installing the fixing plates.

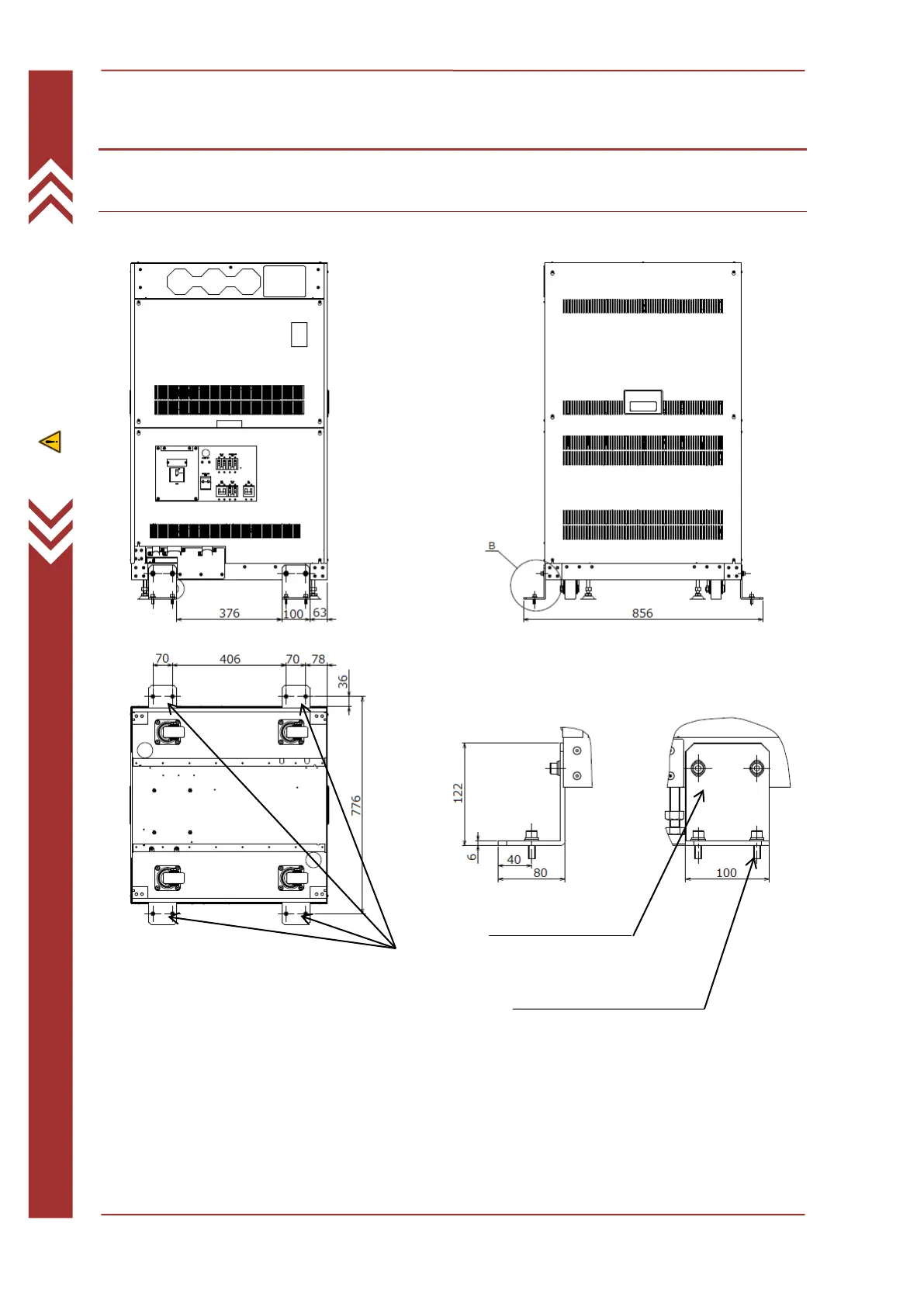

Protection against movement caused by earthquake (EO control unit) (Recommend)
Bottom view
Four fixing plates
mounting positions
B
Fixing plate (4 pcs)
Hexagon head bolt to floor
(M8
X 40 (or higher) SUS)
(8 pcs
)
