Hitachi SU8700 - Page 74

To Next Page

To Previous Page

本设备的警告标签

安全-15

安全使用注意事项

本设备的警告标签（续）

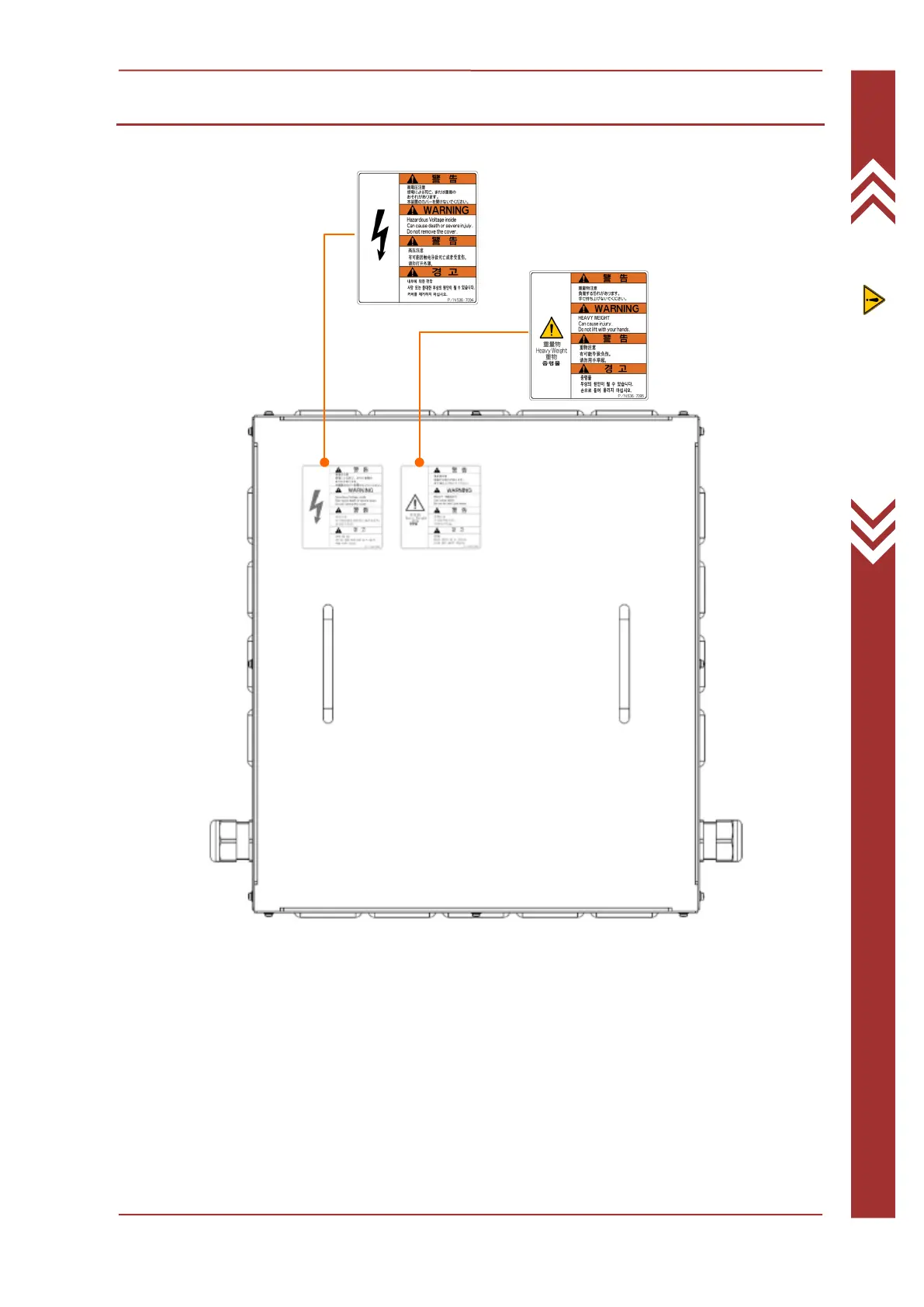

降压变压器（可选）上的警告标签粘贴位置

(14)

(13)
