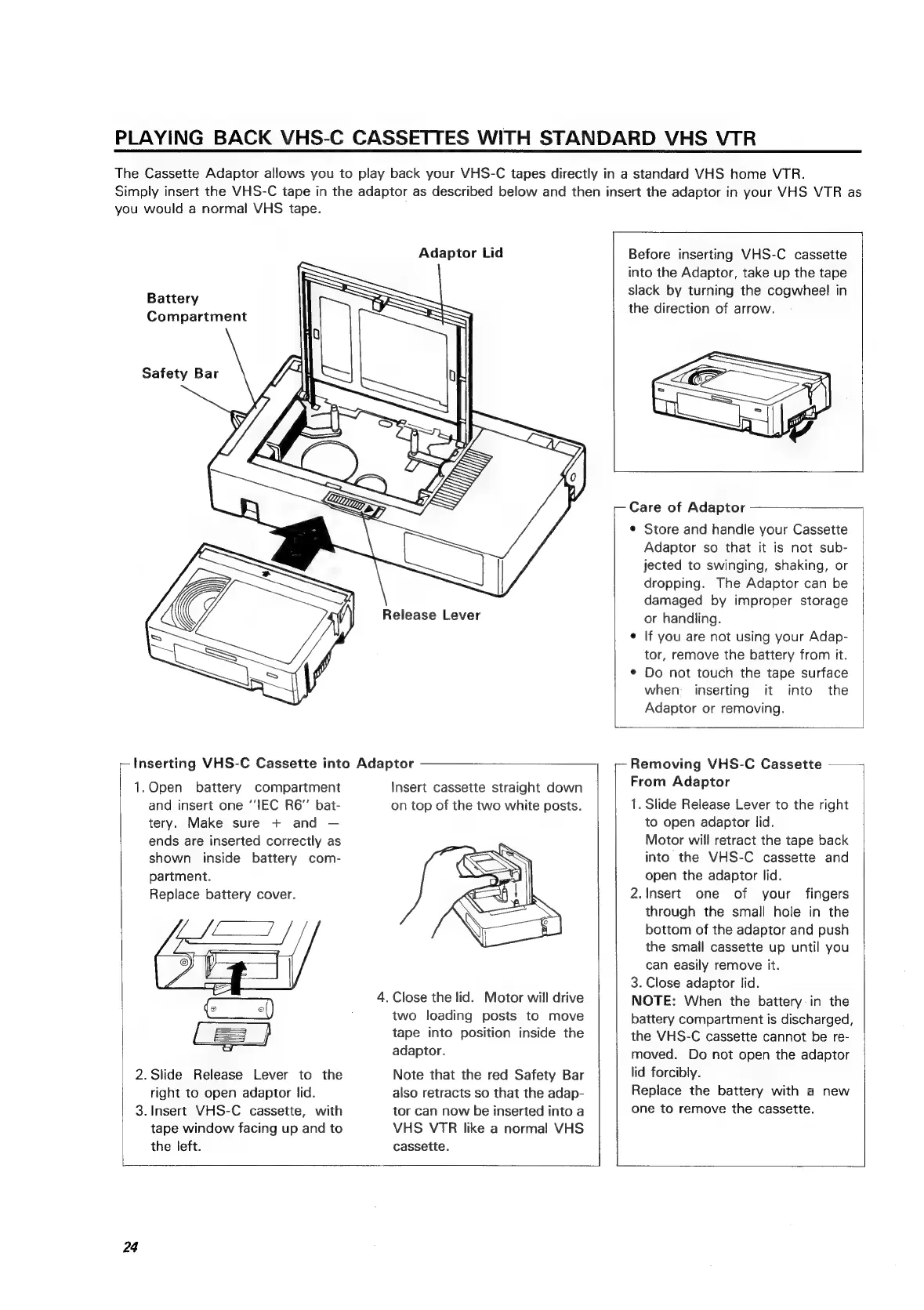

PLAYING BACK VHS-C CASSETTES WITH STANDARD VHS VTR
The Cassette Adaptor allows you to play back your VHS-C tapes directly in a standard VHS home VTR.
Simply insert the VHS-C tape in the adaptor as described below and then insert the adaptor in your VHS VTR as
you would a normal VHS tape.
Battery
Compartment
Safety Bar
1.Open battery compartment
and insert one “IEC R6” bat-
tery. Make sure + and —
ends are inserted correctly as
shown inside battery com-
partment.
Replace battery cover.
2.Slide Release Lever to the
right to open adaptor lid.
3. Insert VHS-C cassette, with
tape window facing up and to
the left.
Release Lever
Inserting VHS-C Cassette into Adaptor
. Close the lid. Motor will drive
Adaptor Lid
Before inserting VHS-C cassette
into the Adaptor, take up the tape
slack by turning the cogwheel in
the direction of arrow.
-- Care of Adaptor
e Store and handle your Cassette
Adaptor so that it is not sub-
jected to swinging, shaking, or
dropping. The Adaptor can be
damaged by improper storage
or handling.
e If you are not using your Adap-
tor, remove the battery from it.
¢ Do not touch the tape surface
when _ inserting it into the
Adaptor or removing.
Insert cassette straight down
on top of the two white posts.
two loading posts to move
tape into position inside the
adaptor.
Note that the red Safety Bar
also retracts so that the adap-
tor can now be inserted into a
VHS VTR like a normal VHS
cassette.
ee
24
Removing VHS-C Cassette
From Adaptor
1. Slide Release Lever to the right
to open adaptor lid.
Motor will retract the tape back
into the VHS-C cassette and
open the adaptor lid.
2.!nsert one of your fingers
through the small hole in the
bottom of the adaptor and push
the small cassette up until you
can easily remove it.
3. Close adaptor lid.
NOTE: When the battery-in the
battery compartment is discharged,
the VHS-C cassette cannot be re-
moved. Do not open the adaptor
lid forcibly.
Replace the battery with a new
one to remove the cassette.
