6
Mounting

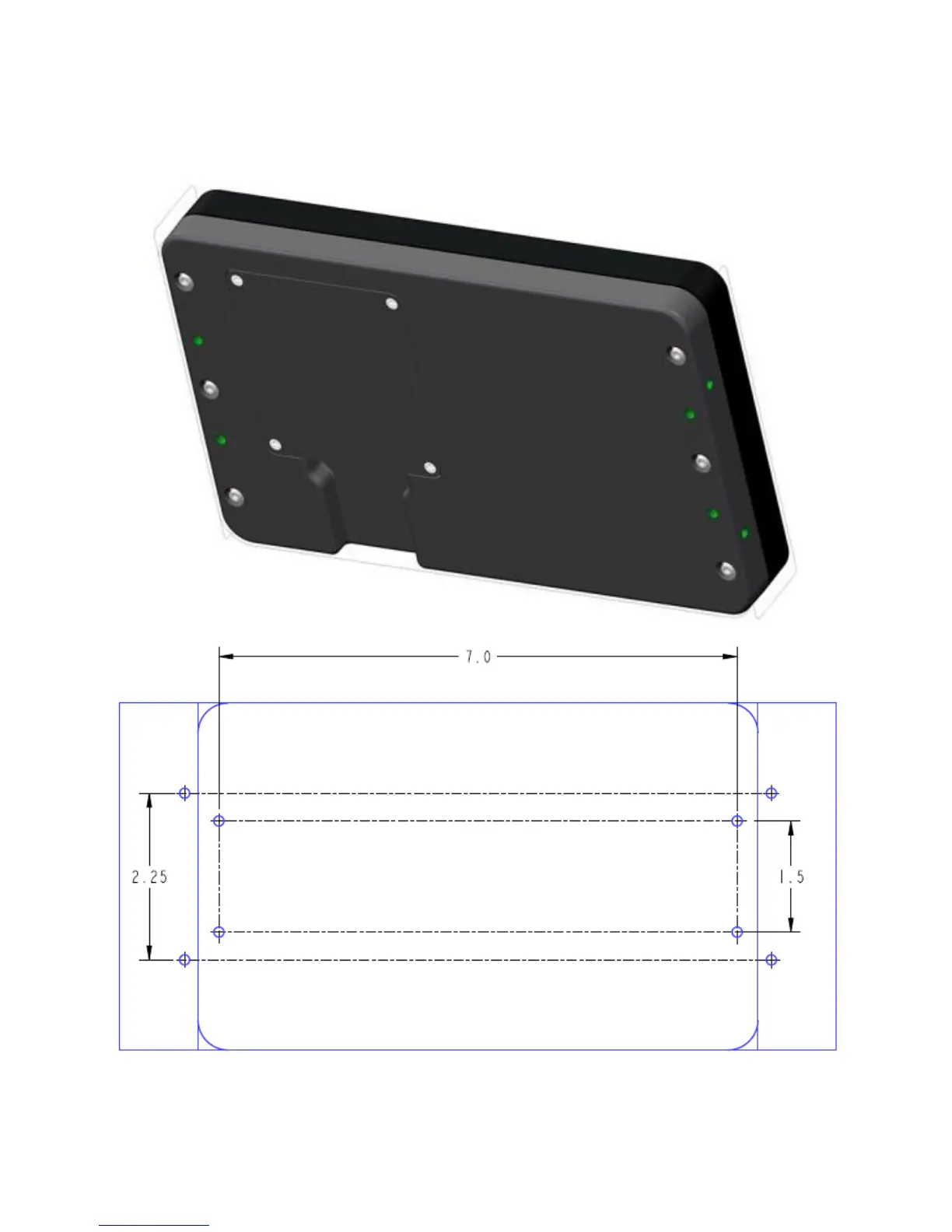

The product has eight tapped 8-32 mounting holes to allow the user to surface mount or flush mount the
enclosure. There are four mounting holes located on the rear of the unit, and two mounting holes are located
on the left and right sides. Included with the contents of this kit is a separate template with a 1:1 layout of the
hole locations for fabricating a mounting bracket.
NOT TO SCALE – USE THE TEMPLATE INCLUDED IN YOUR KIT
