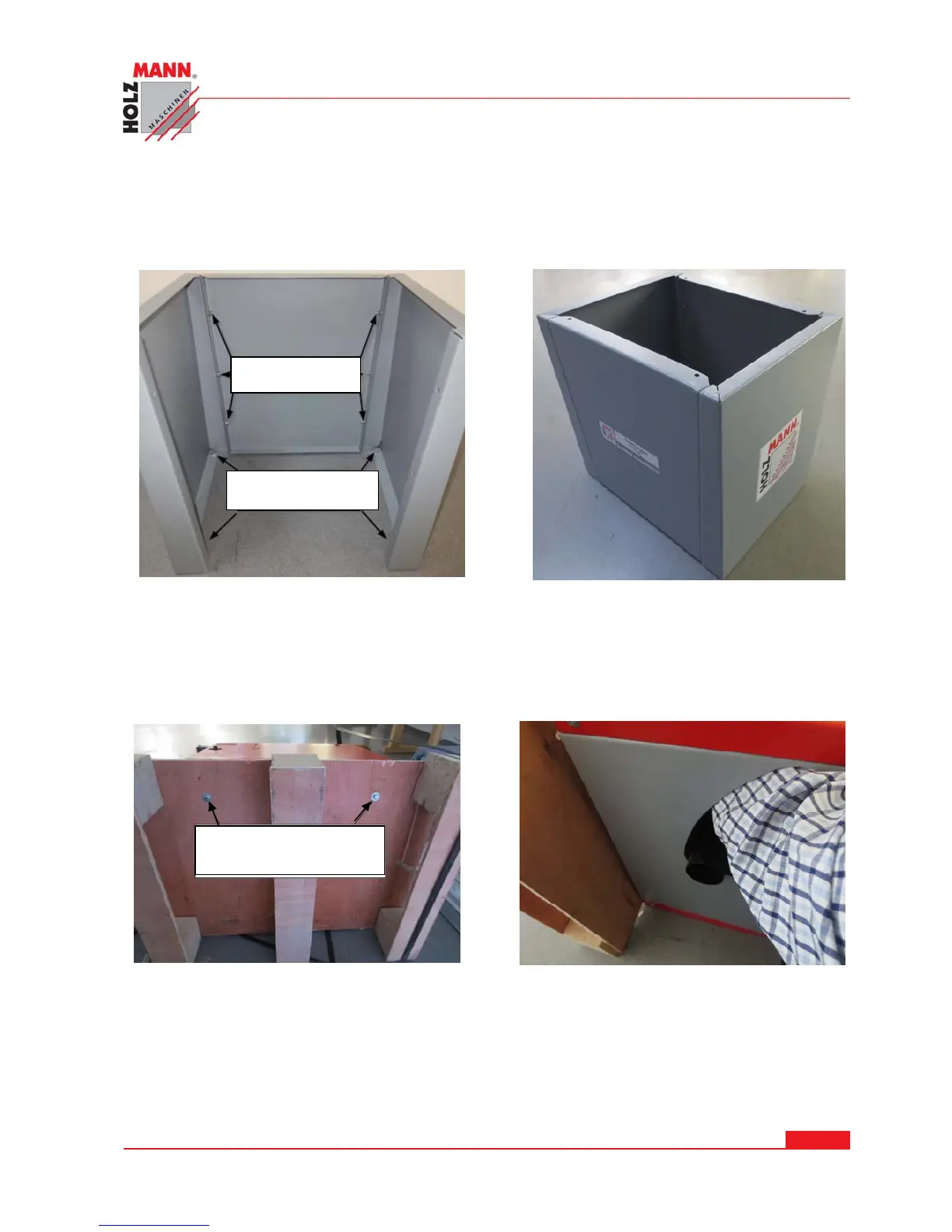

13.3.1 Mounting base socket
 The reason base consists of 2 different disks. The plates are bolted together with 3 screws,
washers and nuts.
Make sure that the screw holes for the adjustment feet below.
13.3.2 Dismantling timber transport base
 Overturn the machine on a cardboard backing.
 Remove the transport bolts with a wrench -size 10-.
 If rotate the nuts in the machine, can be passed laterally into the machine and the nuts are
secured against rotate.
Transport screws
fittin
g
s
base socket
