OPERATION
HOLZMANN Maschinen Austria www.holzmann-maschinen.at Seite 44
Tischkreissäge / table saw TS 200 / TS 250
 Easily unscrew the screws on the riving knife with a 13 mm wrench.
 Ask the riving knife to a distance of about 3mm - 8mm a saw blade.
 Pull out the gap wedge with the screws.
 Check with the rip fence as to whether the riving knife is parallel with the blade.
 Attach the blade guard cover back on the riving knife.
NOTE:
This procedure should be repeated each time the when the blade is replaced.
14.1.2 Setting of the riving knife
The rip fence can be precisely aligned with the blade.
 The rip fence to the blade push.
 If this is not applied exactly at the saw blade, loosen screws securing the
Rip fence guide profile easily.
 With the Allen screw (adjusting) - point 6.2.8 - readjust the rip fence to the blade.
 Tighten the mounting screws of the rip fence guide profile firmly.
Use to check a strip of wood -ca. 0,5m- you by sawing in length.
The difference -an the ends of the strip of wood is gemessen- readjusted on the rip fence guide
profile. - Point 6.2.8 -
15 OPERATION

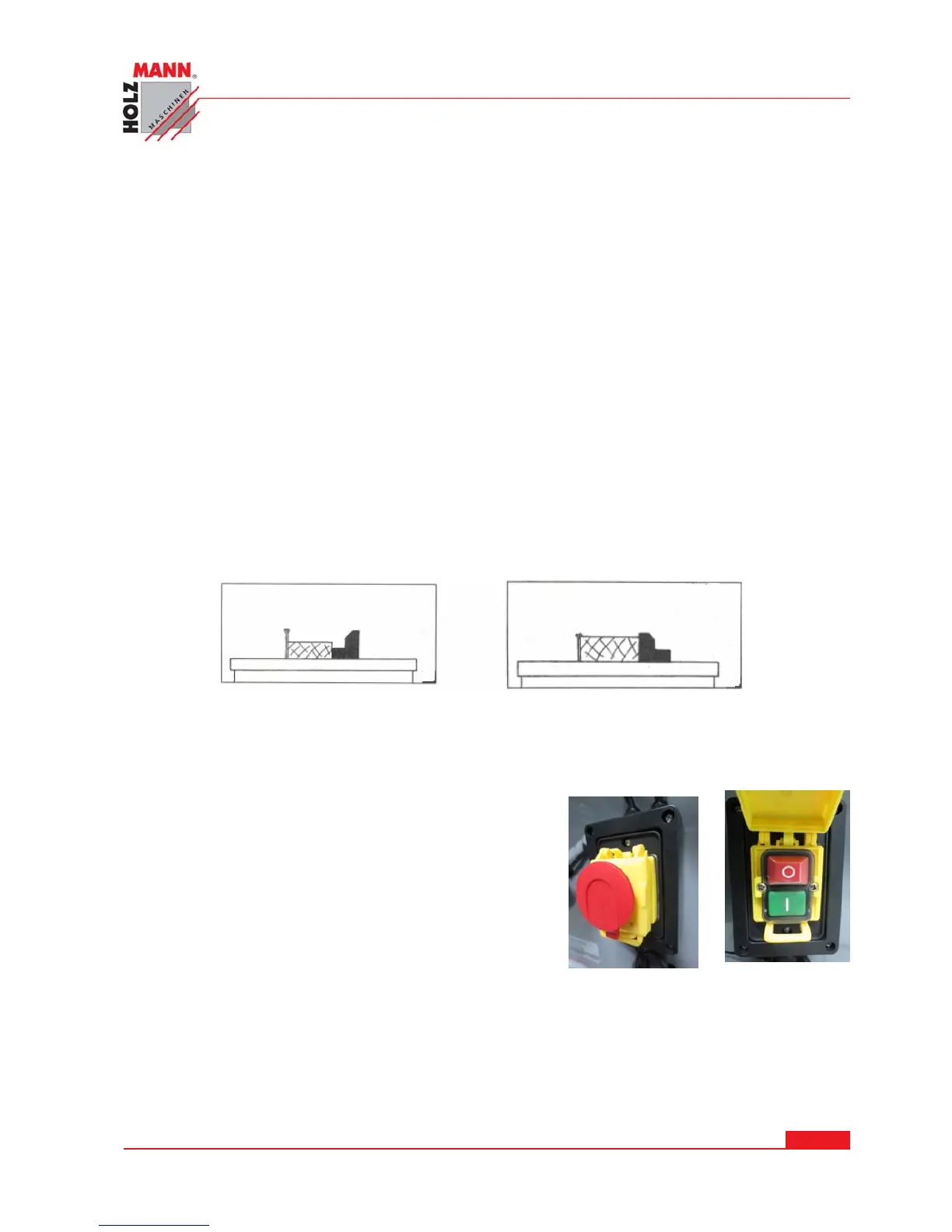

15.1 Saw blade start / stop
If you want to press the ON OFF switch, the combined
EMERGENCY STOP switch must be in the open state.
 To start, press the green button ˝ I ˝
 To start, press the red button ˝ O ˝
INFO: In the closed state of the main switch can be operated as an EMERGENCY STOP switch.
15.1.1 Setting the cutting length
The cutting length can be set on the rip fence guide so that it can be read on the measuring
scale. With the clamping screw fixation of the rip fence can be.
The rip fence can be used on the front or opposite side of the table boom
