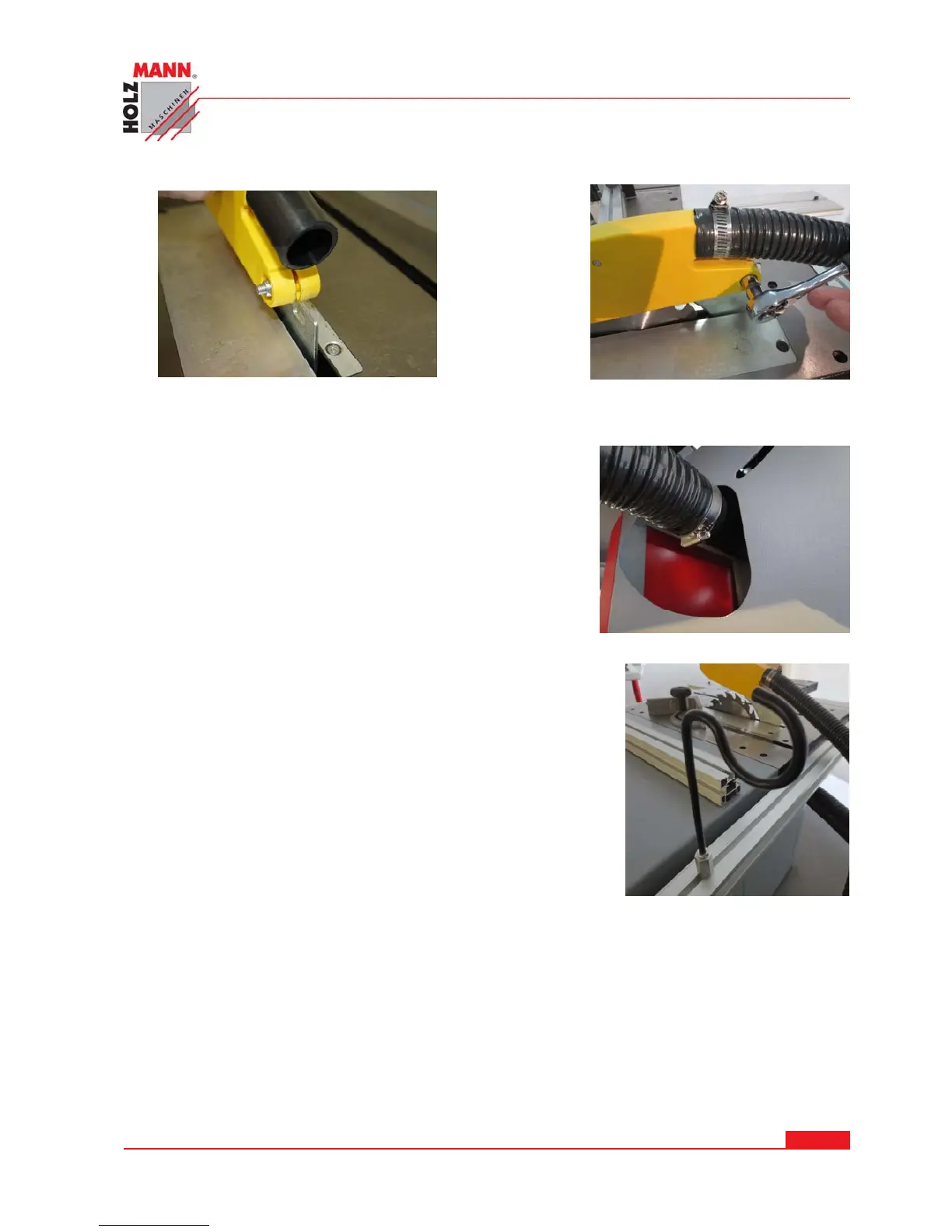

13.3.13 Screw the blade guard cover
Screw the blade guard cover
13.3.14 Mount suction hose to saw blade exhauster
Slide the suction hose to the connector on the Sägeblattab-
saugung and fasten with cable ties.
13.3.15 Screw the suction hose bracket
The suction hose retainer can be pushed and screwed at various
points on the profile.
13.3.16 Electrical connection
Only a qualified electrician is authorized for the electrical connection, including the installation of
the supply part. This must be cut off before the electrical connection. Only when the main power
supply is cut off, each contact can be closed. The cowl box is attached to the back of the machine
body. There is also a junction box on the side, which you have to connect only to the marking.
