ASSEMBLY
HOLZMANN Maschinen Austria www.holzmann-maschinen.at Seite 40
Tischkreissäge / table saw TS 200 / TS 250

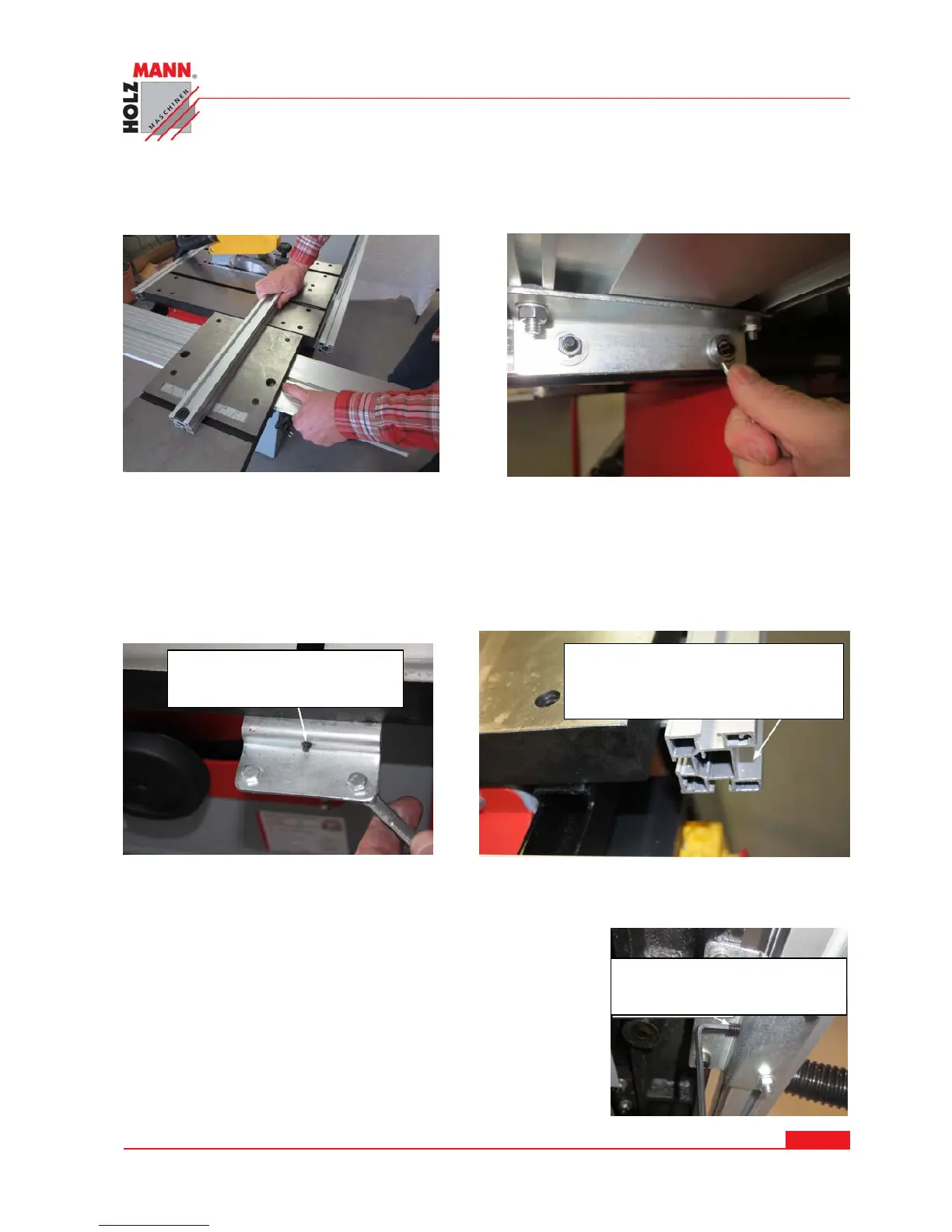

13.3.8 Align sliding table with working table
 Lightly tighten the 4 nuts on both brackets so that the sliding table base profile can be moved.
 The sliding table is horizontally aligned without gaps with the rip fence
 4 screws tighten the nuts at the current holder slightly.
The whole process is repeated at the opposite bracket.
After aligning all 8 nuts on both brackets tighten!
13.3.9 Screw the lateral guide profiles
 Loosen the screws until the rip fence guide profile can be moved.
 Adjust the guide profile.
 The adjusting screw can be adjusted subsequently the rip fence guide profile.
 Tighten the screws again.
wide groove laterally
outwards in both profiles
(
ri
g
ht and left
p
rofile
)
Adjustment screw
-
Allen screw
-
Adjustment screw
-
Allen screw
-
