Tischkreissäge / table saw TS 200 / TS 250

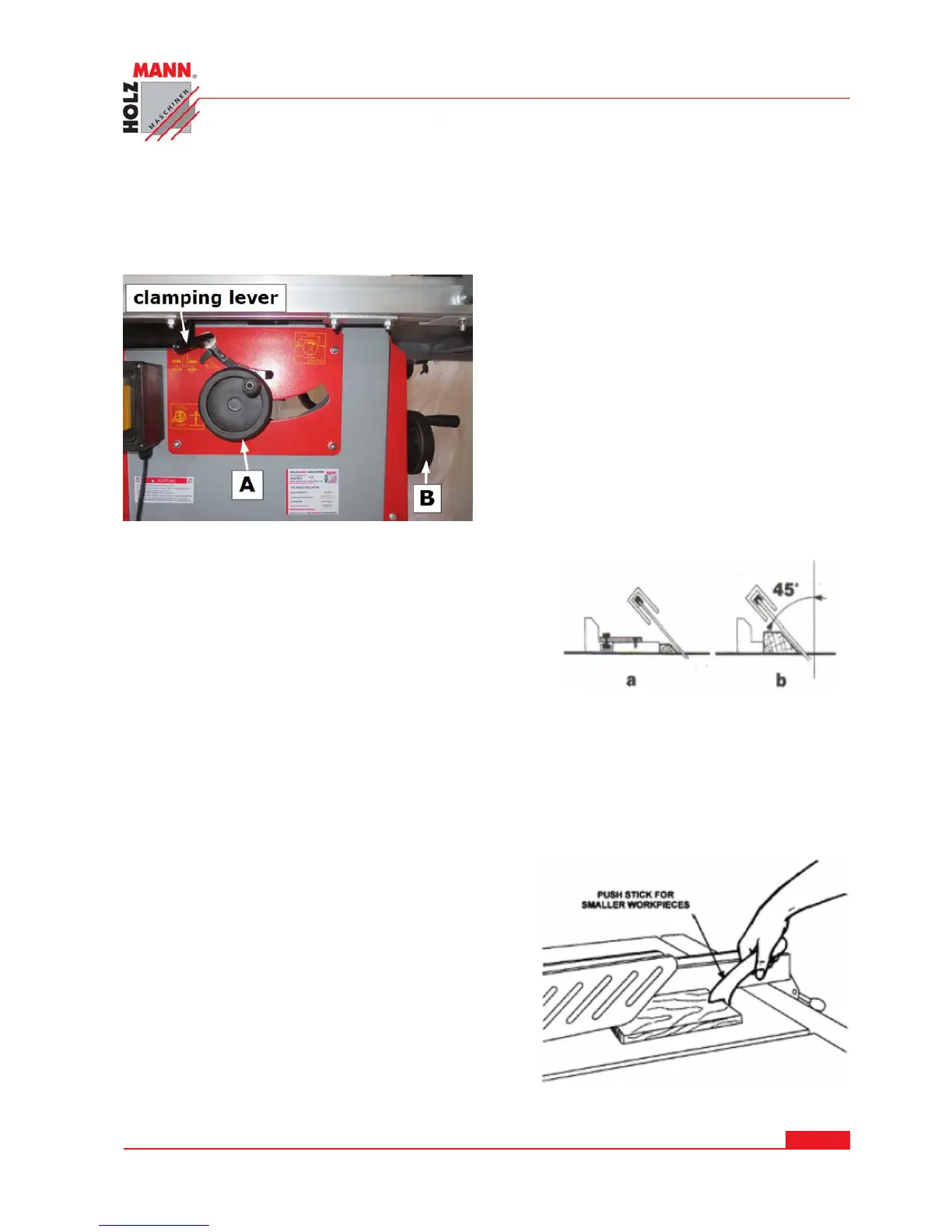

15.1.2 Saw blade height adjustment
To adjust the height of the blade to the material loosen the clamping lever.
The handwheel A clockwise turn the blade upward lift. To the left in order to lower it.
The blade should protrude approximately 5 mm from the workpiece.
15.1.3 Setting cutting angle
 Loosen the clamping lever for the locking
 To the saw blade by the tilt 90° - 45 ° is used to ad-
just the wheel B on the side of the machine
 Pull after setting the clamping lever solid again.
15.2 Instructions for use:
15.2.1 Notes on using the circular saw
 Make sure you install the saw blade protection.
 Run the workpiece evenly without flare-ups and without take it back until the end of cutting to.
 Set the circular saw blade so high that the ring gear is really reliably covered by the circular
saw blade protection (distance between the circu-
lar saw blade guard and workpiece
(max. -. 5 mm )
WARNING:
Perform the setup of the circular saw
blade height and tilt by only with the machine
switched off.
For cuts less than 120 mm width supplying the
material with a push stick must be made, and the
stop bar must be in a flat position.
Work only with a well cut saw blade.
