ASSEMBLY
HOLZMANN Maschinen Austria www.holzmann-maschinen.at Seite 39
Tischkreissäge / table saw TS 200 / TS 250

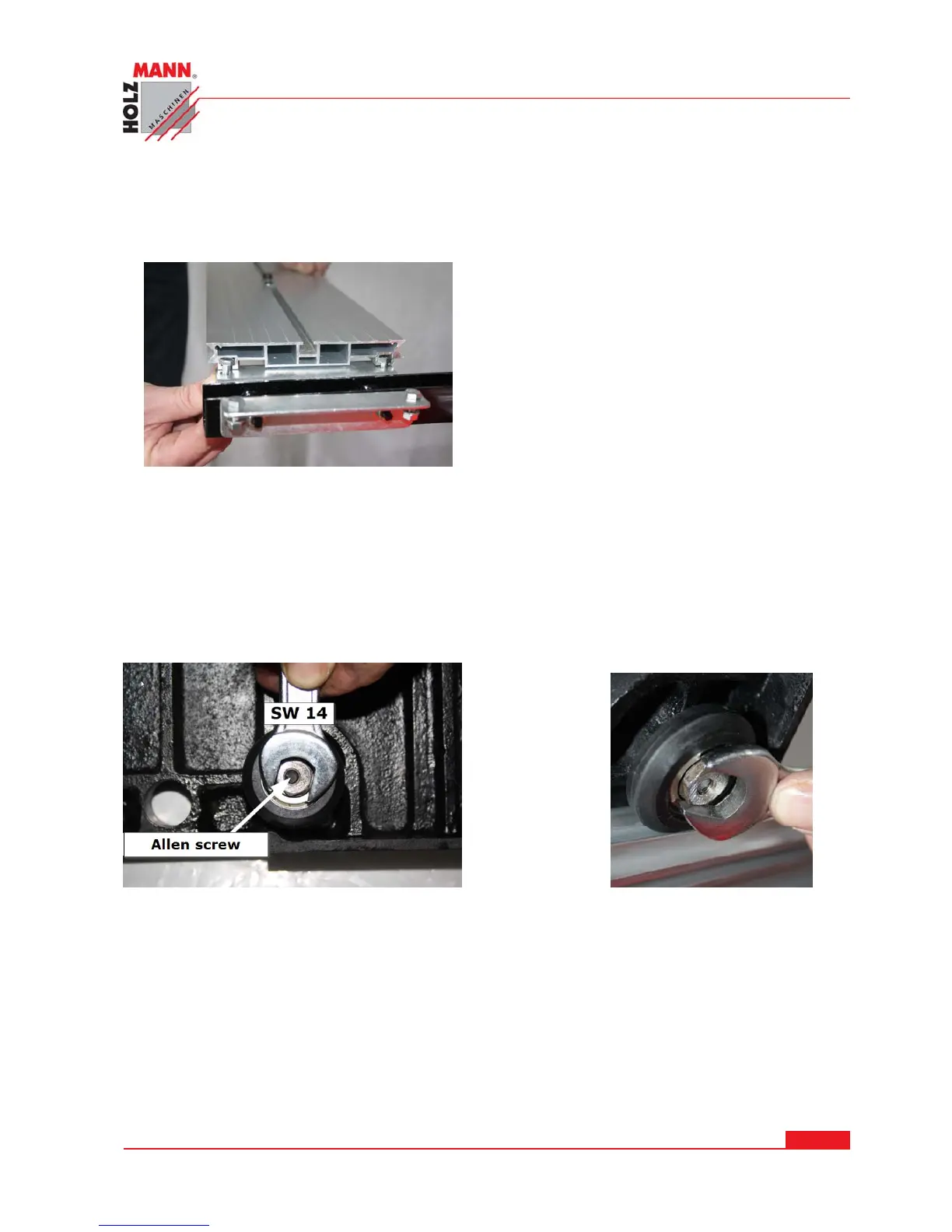

13.3.6 Mounting sliding table base profile
 The screws (8 x) screws loose enough on both sliding table mounts.
 Slide the sliding table base profile as shown on the left, starting with both sliding table mounts
in the screw grooves.
 In the central position tighten the screws not strong.
13.3.7 Mounting sliding table
The sliding table has centered on the bottom 2 eccentric bearings in the guide rollers.
These are inserted outer side of the sliding table base (aluminum profile rail).
 On the table top, loosen the two Allen screws a little bit and not to much.
 Turn eccentric bolt with wrench key -14- as far as the greatest width is reached.
 Sliding table on sliding base (aluminum profile rail) slide.
 With wrench key to tighten the eccentric to the point that the plate can slide without play.
CAUTION: Do not over tighten so that the sliding table still move easily!
 Tighten the 2 Allen screws on the table top and back light backlash push the sliding table
control.
