Holzmann TS 200 - Mounting Base Socket on the Machine

ASSEMBLY
HOLZMANN Maschinen Austria www.holzmann-maschinen.at Seite 37
Tischkreissäge / table saw TS 200 / TS 250
Remove screws supplied as package, Suction and miter angles from the machine.

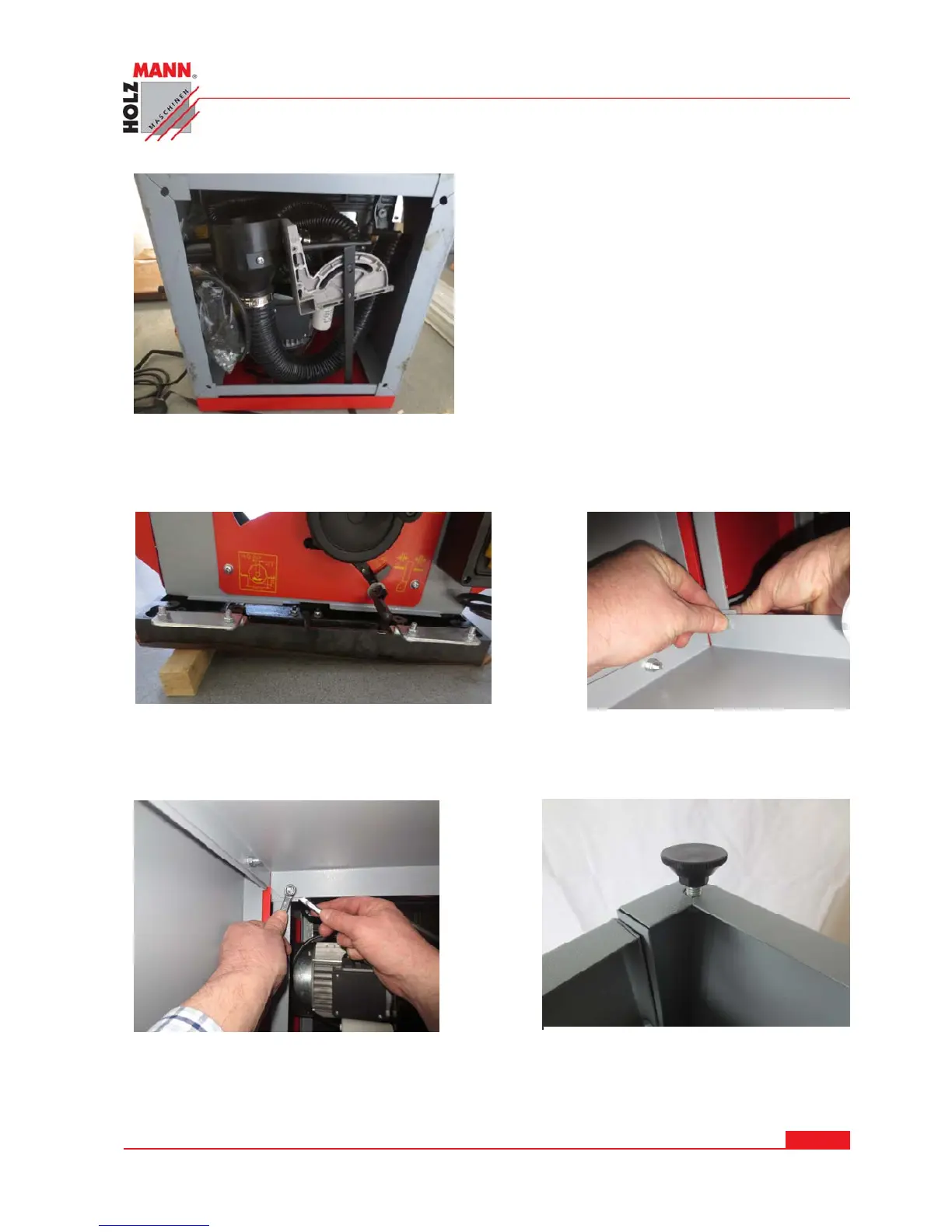

13.3.3 Mounting base socket on the machine
 Remove screws supplied as package, Suction
and miter angles from the machine.

Place the pre-assembled base socket on
the machine and screw 4x with the
supplied screws, washers and nuts.
4 Plates Adjustable Screw in the
screw holes.
