ASSEMBLY
HOLZMANN Maschinen Austria www.holzmann-maschinen.at Seite 38
Tischkreissäge / table saw TS 200 / TS 250

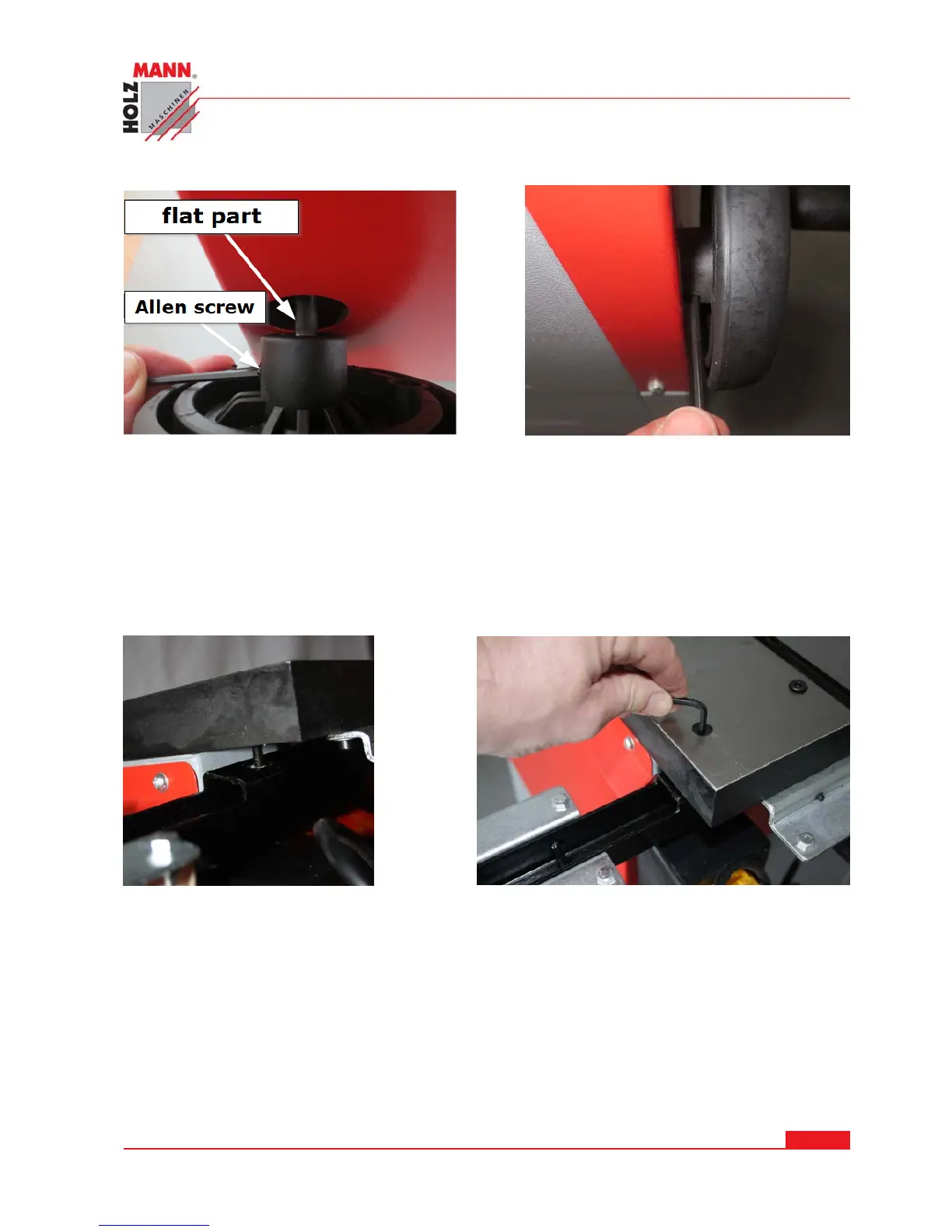

13.3.4 Mounting handle for tilt angle adjustment
 The flat side of the shaft should be exactly
be with the screw in a line.
13.3.5 Mounting brackets sliding table
 Unscrew the two screws on each of the two sliding table holders.
 Use 4x Allen screws in corresponding holes on both sides on worktable.
 Creating the sliding table holders laterally below the work table and top with Allen screw them
on firmly.

Push handwheel completely and
tighten with allen screw
