MAINTENANCE
Inspection and Replacement
PLUG MAINTENANCE COVER
CONNECTOR
LOCK TAB
IGNITION
COIL
620mm
FLANGE SH BOLT
625mm
FLANGE BOLT
Disconnect the battery negative
( ) terminal.

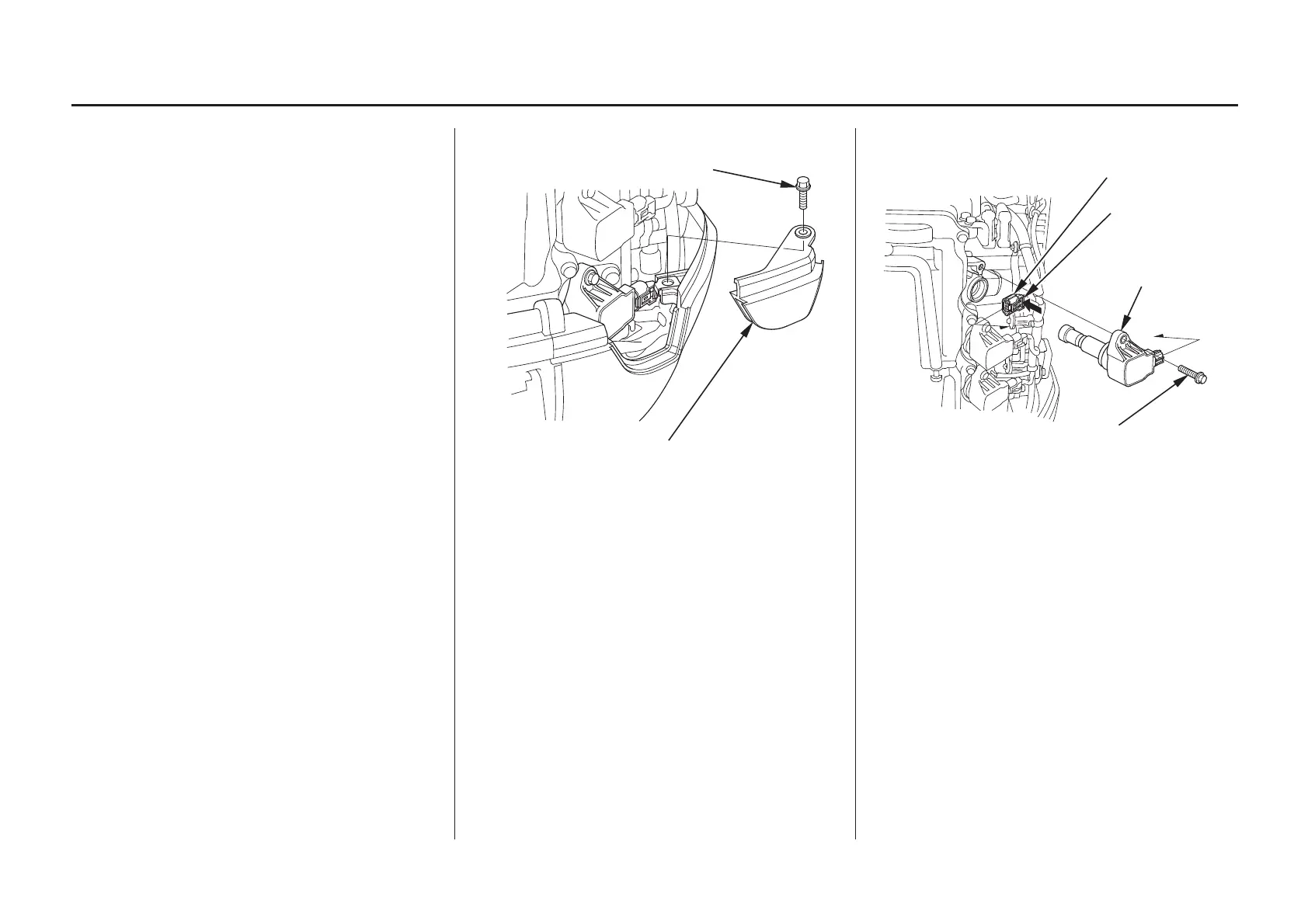

Unlock and remove the engine
cover (see page ).
Remove the 6 20 mm flange
SH bolt and remove the plug
maintenance cover.
Remove the 6 25 mm flange
bolt.
Disconnect the connector by
pushing the lock tab and remove
the ignition coil.
1.
2.
3. 4.
