Honda BF90D - ACG Fuse

〈〉
〈〉
‘‘ ’’
‘‘ ’’
‘‘ ’’
10A, 15A, 30A
70A
137
Ifthefuseisblown,checkthe
cause, then replace the fuse with a
spare fuse of the same rated
capacity. Unless the cause is found,
the fuse may blow again.
Replacement

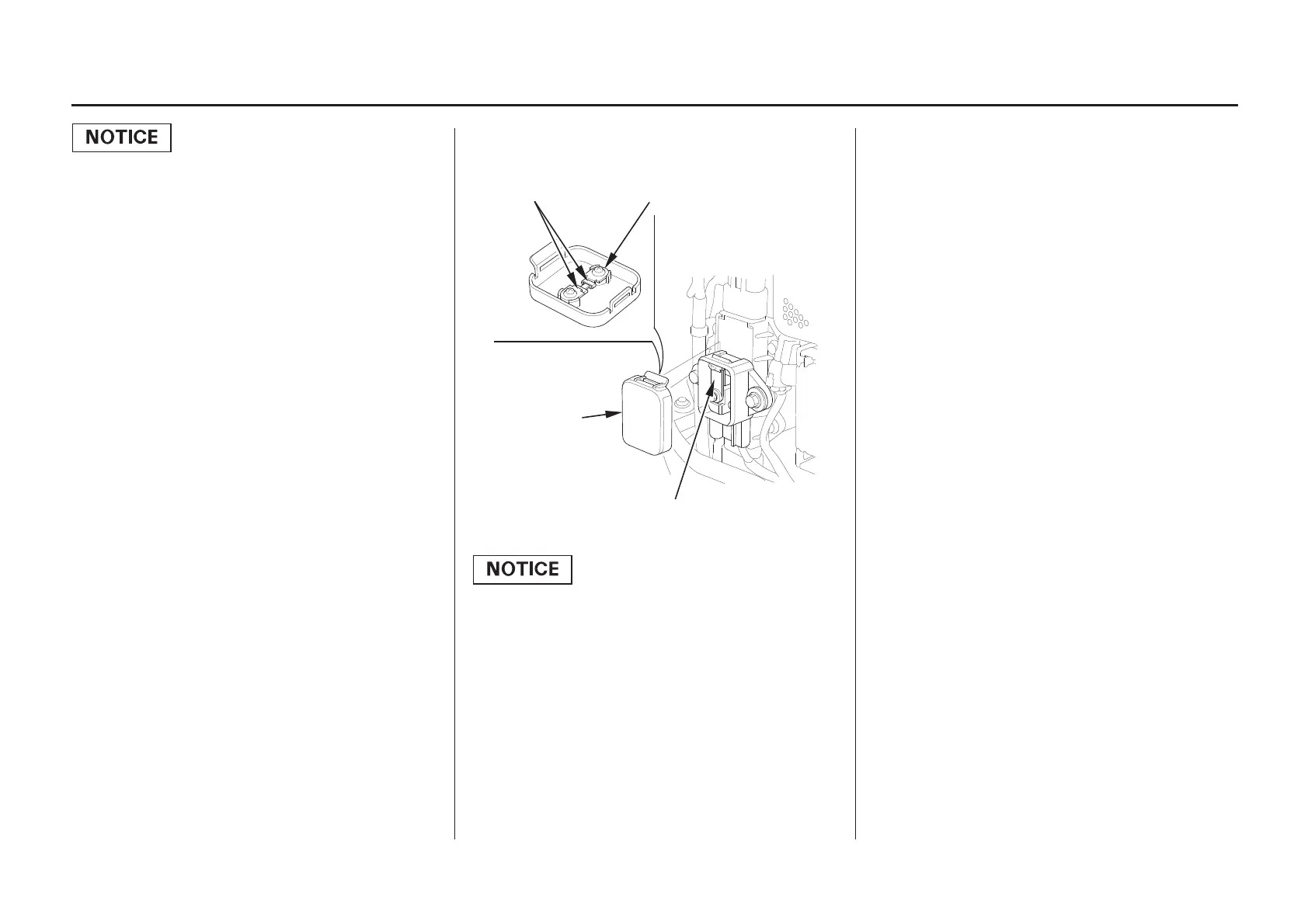

ACG Fuse Replacement
Disconnect the battery cable at the
battery terminal before checking
or replacing the ACG fuse.
DESIGNATED FUSE:
DESIGNATED FUSE:
MAINTENANCE
70A MARK
FUSE CASE
LID
SPARE FUSE (70A)
ACG FUSE (70A)
Stop the engine.
Remove the engine cover.
Push a new fuse into the clips.
Remove the electrical part cover.
A spare fuse is located on the reverse
side of the fuse case lid and tightened
with two 3 mm screws.
Stop the engine.
Remove the engine cover.
Remove the electrical part cover.
Remove the fuse case lid.
Remove the old fuse by removing
two 5 mm screws.
After finishing replacement, install
the fuse case lid with its hook
toward the engine side .
Be sure to check the fuse case lid
is securely locked.
Remove the fuse case lid and pull
the old fuse out of the clip with the
fuse puller supplied in the tool bag.
When the new fuse in set as a spare
fuse on the reverse side of the fuse
case lid, set the fuse so that you can
see the 70A mark on it.
Install a new fuse with 70A
mark downward.
2.
3.
4.
1.
5.
2.
3.
4.
1.
5.
7.
8.
6.
