Honda BF90D - Tiller Handle Height;Angle Adjustment (H Type)

×
×
〈
〉
×
58
PRE-OPERATION CHECKS
Tiller Handle Height/Angle
Adjustment (H type)
Height/Angle Adjustment
Procedure
HANDLE ANGLE: 7°
HANDLE ANGLE: 13°
HEIGHT ADJUSTMENT
BLOCK
HANDLE ANGLE: 7°
HANDLE ANGLE: 13°
HANDLE ANGLE: 21°
HANDLE ANGLE:
21°
Reference point
HEIGHT
828mm
FLANGE BOLT
359 mm
(14.1 in)
433 mm
(17.0 in)
296 mm
(11.7 in)

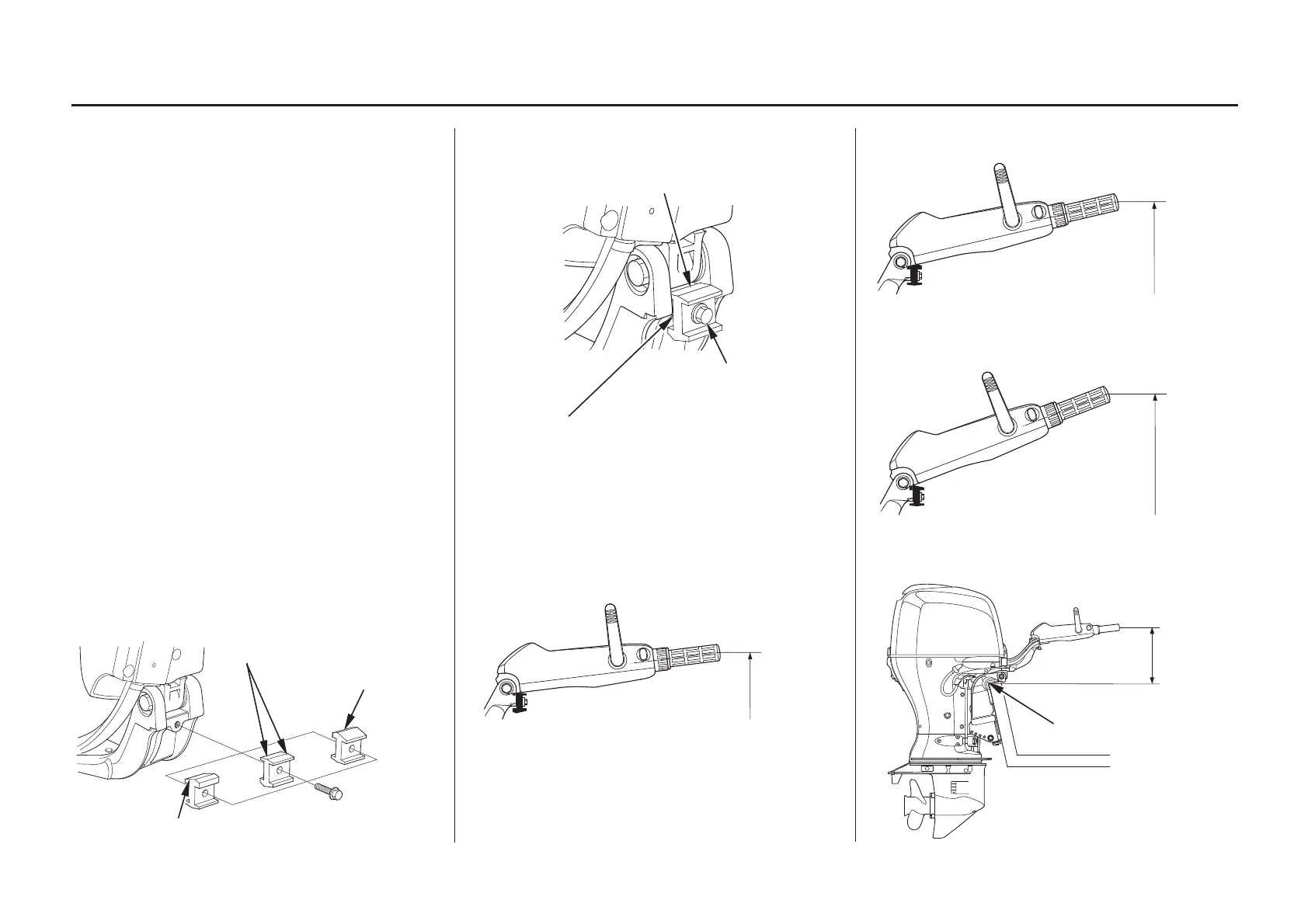

Install the height adjustment block
so that the selected angle of the
tiller handle is in this position.
The tiller handle height and angle can
be adjusted to three positions by
changing the installation direction of
the height adjustment block. Select a
suitable height and angle for the
operator and secure the block.
Raise the tiller handle and remove
the 8 28 mm flange bolt and the
height adjustment block.
Pull down the tiller handle.
Determine the height adjustment
block installation direction and
secure the block with the 8 28
mm flange bolt.
1.
2.
