Honda BF90D - R Type

90
OPERATION
Cruising (R type)
LOWERMOST
POSITION

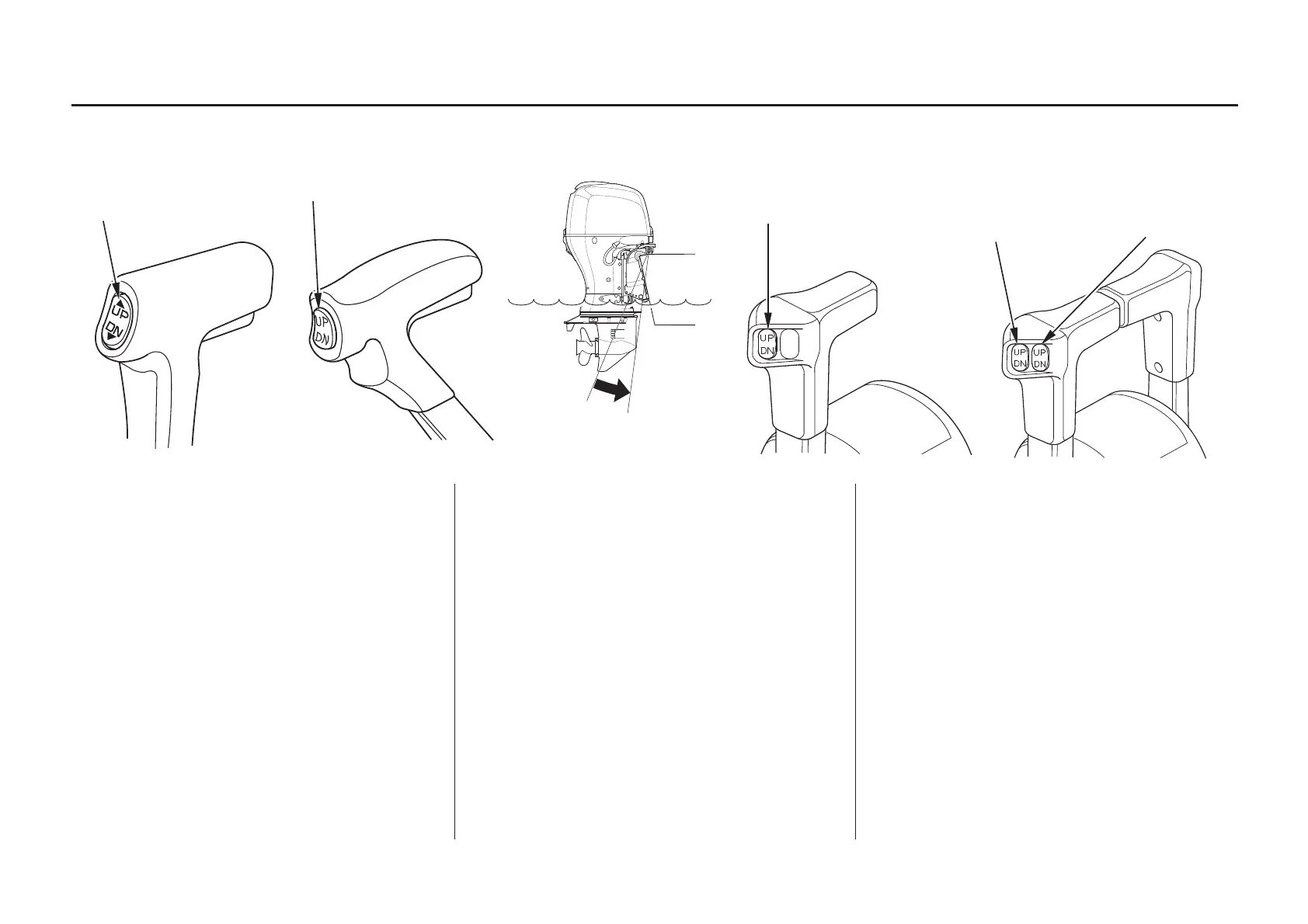

POWER TRIM/TILT
SWITCH
POWER TRIM/TILT SWITCH
(LEFT)
(RIGHT)
(R1 type)
(R2 type)
POWER TRIM/TILT
SWITCH
(R3 type)
POWER TRIM/TILT
SWITCH
(single type)
(dual type)
R3 type:
When the two outboard motors are
mounted:
With the outboard motors trimmed
at the lowermost position, adjust
the trim angle of the right and left
outboard motors using the switch
on the console side separately or
using the switch on the control
lever simultaneously.
Press the DN (down) of the power
trim/tilt switch and trim the motor
at the lowermost position.
Press the DN (down) of the power
trim/tilt switch on the control lever
side and trim the outboard motors
at the lowermost position.
1.
1)
2)
