Adjustment with the switch on
the console side will impair the
balance between the right and
left outboard motors, which
adversely affects
operationability and stability of
the outboard motors.
When the boat is mounted with
the two outboard motors,
adjust with the switch on the
control lever side.
95

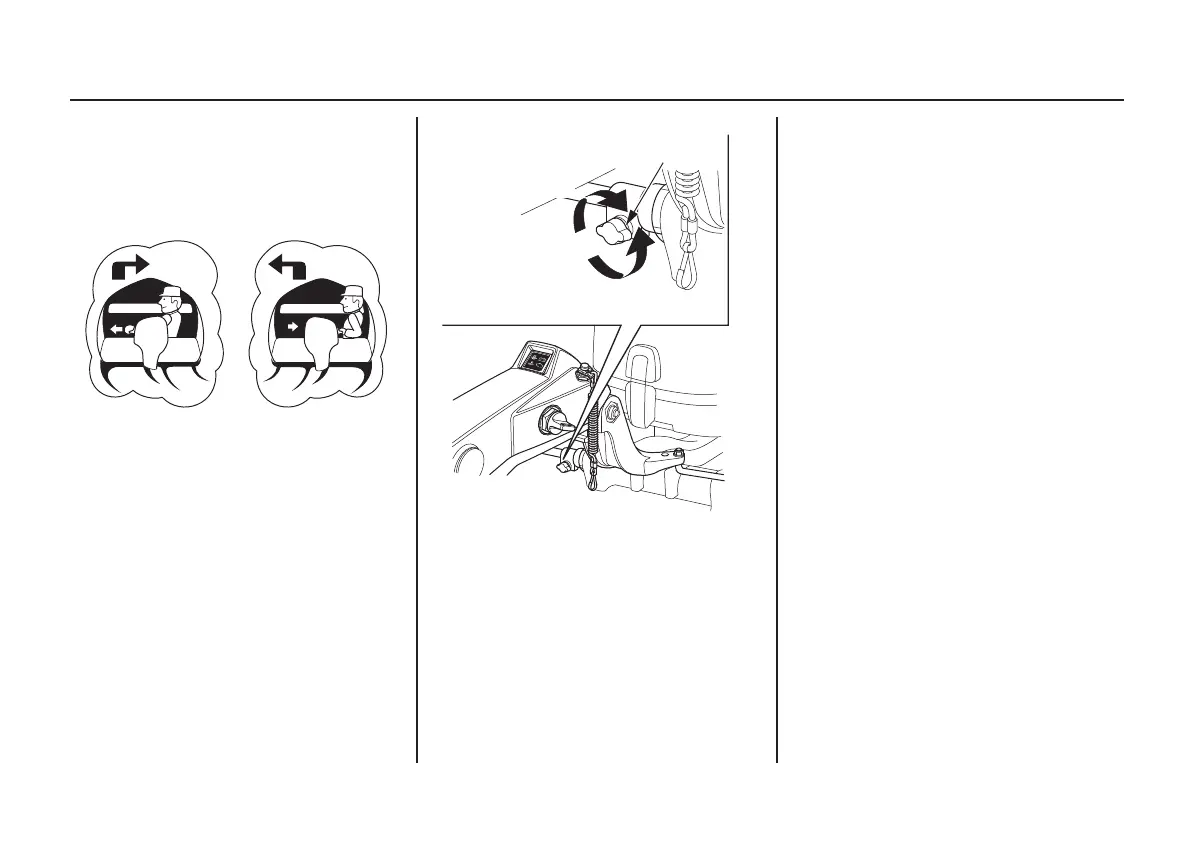

Trim Meter
(equipped type or optional
equipment)
OPERATION
1. LOAD IN THE REAR
2. MOTOR TRIMMED TOO HIGH2. MOTOR TRIMMED TOO LOW
BOW TOO LOW DUE TO
1. LOAD IN THE FRONT
BOW TOO HIGH DUE TO
Digital Tachometer Digital Tachometer
With the motor trimmed high the
trim meter will read as shown. To
lower the bow decrease the motor
trim angle by pressing the DN
(down) portion of the power trim/tilt
switch.
With the motor trimmed low the trim
meter will read as shown. To raise
the bow increase the motor trim angle
by pressing the UP portion of the
power trim/tilt switch.
The illustration represents R1 type.
Perform the same procedure for the
other types.
The trim meter indicates the trim
angle of the motor. Refer to the trim
meter, and press the UP or DN
(down) portion of the power trim/tilt
switch to adjust the motor trim angle
to achieve boat performance and
stability.
